Digital Signage

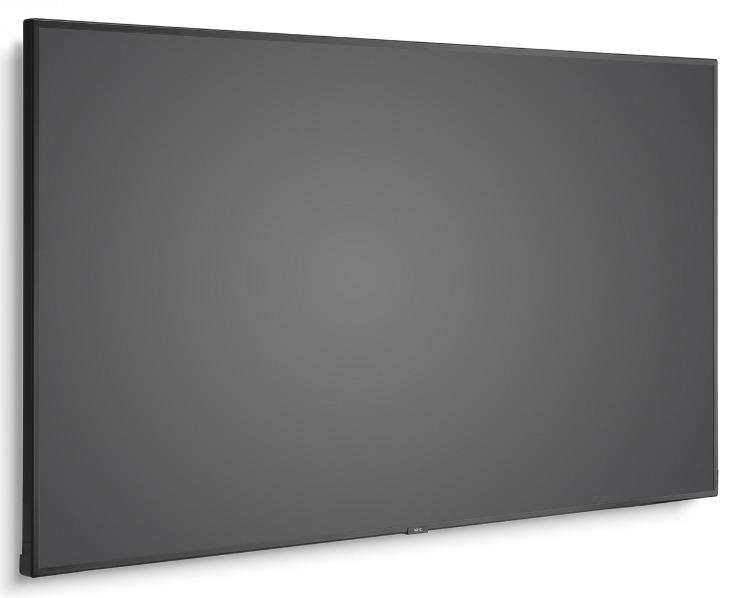

Professional panel NEC V754Q

Professional panel NEC V754Q - Professional panel with a resolution of 3840x2160, brightness 500 cd/m2, contrast ratio 1200:1 and 75" diagonal.

• Panel type: IPS with Edge LED backlight direct
• Display area (W x H): 1,649.7 x 927.9 mm
• Screen size: 75"
• Brightness: 500 cd/m?
• Contrast: 1200:1
• Viewing Angle: 178° / 178° (Contrast Ratio > 10:1)
• Color Depth: 1.073 (10bit)
• Response time (typical): 8 ms (gray to gray)
• Haze Level [%]: Pro (28)
• Possible arrangement: vertical;horizontal; screen up
• Horizontal scan frequency: 31.5 - 91.1 kHz
• Vertical refresh rate: 24 - 85 Hz
• Native resolution: 3840 x 2160
• Supports digital and analog inputs (PC): 4096 x 2160; 3840 x 2160; 1920 x 2160; 1920 x 1080
• Digital video input: 2 x DisplayPort (HDCP); 3 x HDMI (HDCP)
• Audio input analog: 1 x 3.5 mm
• Audio input digital: 2 x DisplayPort; 3 x HDMI
• Control input: 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
• Input Data: 1 x microSD (Value); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
• Video output digital: 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
• Audio output analog: 1 x 3.5 mm Jack
• Control output: 1 x LAN 100Mbit
• Option slot technology: OPS specification (NEC/Intel OPS standard)
• OPS max. current / power consumption: 4.7 / 75 A / W
• Compute Module Slot: Slot Technology: Compute Module Slot (NEC's own standard)
• Ambient Light Sensor: Activated Software Controlled Operations
• Presence sensor: optional, outdoor, range 4-5 m, activated software controlled operations
• Temperature sensor: built-in, 3 sensors, program controlled operation activated
• NFC sensor: integrated, 2cm range, requires NEC Android app
• Power consumption: 155 W transportation
• Power consumption in standby mode: <0.5 W
• Power Management: VESA DPMS
• External temperature (operating): +0 to +40 °C
• Humidity (operating): 20 to 80%
• Dimensions (W x H x D): Without stand: 1,681 x 960 x 71 mm
• Weight: 53 kg
• Frame width: 14.8 (top and bottom) mm; 14.8 left/right mm
• VESA mount: 4 hole; 400 x 400 (FDMI) mm; 600 x 400 (FDMI) mm; M8
• Shell protection degree: IP5x (front); IP2x (rear)
• Supported Image Formats: JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
• Supported Video Formats: MP4/MOV/FLV (H.264 video, MP3 audio, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP@ML, MP@HL; WMV (video H.264, wmv L3, wmv profiles simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
• Supported Audio Formats: MP3 (MP3); max. bit-rate 320 kBit/s; WAV(LPCM); max. 48 kHz sampling
• Supported File Storage / File System: MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
• Accessories: wall mount (PDW T XL-2); legs (ST-801); speaker (SP-754QSM, SP-TF1); trolley (PD02MHA, PD03MHA, PDMHM-L)
• Compute Module Slot: NEC Compute Module; Raspberry Pi Compute Module 1 and 3
• OPS Slot: HDBaseT receiver; OPS-2C Quad 3G SDI; Intel® Atom and Celeron processors and multi-core processors
• Energy efficiency: ECO mode; annual electricity consumption: 248 kW/h (with 4 hours of operation per day); scattered light sensor; carbon footprint meter; local decrease in light intensity; energy efficient class: A
• Color version: optional colored overframes
• Safety and ergonomics: CE; EAC; EMC Class B; FCC; SASO; TUV GS; UL/C-UL or CSA; VCCI
• Audio: Optional Speakers (15 W + 15 W); Built-in speakers (10 W + 10 W)
• Delivery set: CD-ROM (user manuals/operating instructions); USB cable; Display; Remote control; Cable for DisplayPort
• Warranty: 3 years warranty including backlight; optional 4 + warranty extension for 5 years.
• Opening hours: 24/7
