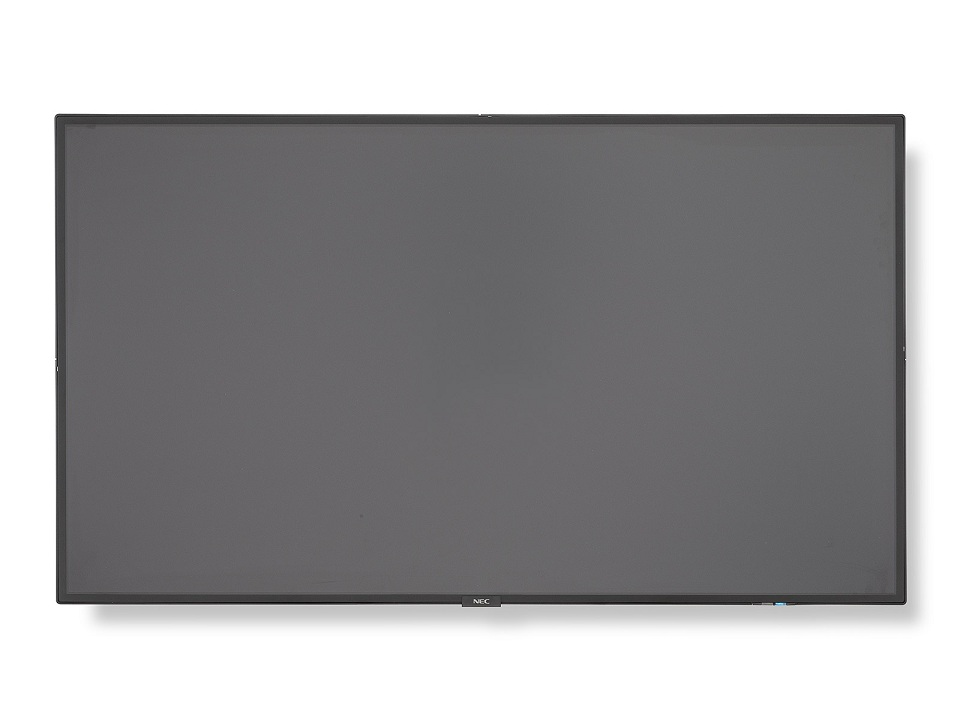

Professional panel NEC P484 SILVER

Professional panel NEC P484 SILVER - Professional panel with a resolution of 1920x1080, a contrast ratio of 4000:1, a brightness of 700 cd/sq.m and a 48" diagonal.

• Panel type: S-PVA technology with LED edge lighting
• Display area (W x H): 1,054.1 x 592.9 mm
• Screen size: 48" / 120.9cm
• Brightness: 700cd/m?
• Contrast (typical): 4000:1
• Viewing Angle: 178° / 178° (Contrast Ratio > 10:1)
• Color Depth [bn]: 1.073 (10bit)
• Response time (typical): 8 ms (gray to gray)
• Haze Level [%]: Pro (25)
• Possible orientation: horizontal, vertical, screen down, screen up
• Horizontal scan frequency: 31.5 - 91.1 kHz (analog and digital)
• Vertical refresh rate: 24 - 85 Hz
• Native resolution: 1920 x 1080
• Supports digital and analog input signals (PC): 4096 x 2160;3840 x 2160;1920 x 2160;1920 x 1200;1920 x 1080;1680 x 1050;1600 x 1200;1440 x 900;1400 x 1050;1366 x 768;1360 x 768;1280 x 1024;1280 x 960;1280 x 800;1280 x 720;1024 x 768;800 x 600;640 x 480
• Video input analog: 1 x VGA
• Digital video input: 1 x DVI-D (with HDCP); 2 x DisplayPort (HDCP); 2 x HDMI (HDCP)
• Audio input analog: 2 x 3.5 mm
• Audio input digital: 2 x DisplayPort; 2 x HDMI
• Control input: 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
• Input Data: 1 x microSD (MediaPlayer); 1 x USB 2.0 (MediaPlayer); 1 x USB 2.0 (Service); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
• Video output digital: 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
• Audio output analog: 1 x 3.5 mm Jack
• Control output: 1 x LAN 100Mbit
• Option slot technology: OPS specification (NEC/Intel OPS standard)
• OPS max. current / power consumption: 10A / 61W
• Compute Module Slot: Slot Technology: Compute Module Slot (NEC's own standard)
• Ambient Light Sensor: Activated Software Controlled Operations
• Presence sensor: optional, outdoor, range 4-5 m, activated software controlled operations
• Temperature sensor: built-in, 3 sensors, program controlled operation activated
• NFC sensor: integrated, 2cm range, requires NEC Android app
• Power consumption: 115 Eco (transport settings), 140 W
• Power consumption in standby mode: < 0.5 W (standby ECO mode); < 3 (Networked Standby)
• Power Management: VESA DPMS
• External temperature (operating): +0°C to +40°C
• Humidity (operating): 20% to 80%
• Dimensions (W x H x D): 1,086.5 x 625.3 x 54.7 mm
• Weight: 17.6 kg
• Frame width: 13.2 mm (top and bottom); 13.2 mm (left/right)
• VESA Mount: 300 x 300mm(FDMI); 4 hole; M6
• Shell protection degree: IP5x (front); IP2x (rear)
• Color design: optional colored overframes; Black front frame, Black back cover
• Safety and ergonomics: C-tick; CE; EMC Class B; FCC; PSB; RoHS; TUV GS; UL/C-UL or CSA; VCCI
• Audio: Optional Speakers (15 W + 15 W); Built-in speakers (10 W + 10 W)
• Delivery set: CD-ROM (user manuals/operating instructions); display; remote control; DVI-D cable; power cable
• Warranty: 3 years warranty including backlight; additional services available; optional 4 + warranty extension for 5 years.
• Opening hours: 24/7
• Accessories: wall mount (PDW S 32-55 L and P, PD02W T M L, PD03W T M P); legs (ST-401); speaker (SP-TF1, SP-484SM); trolley (PDMHM-L)
• Compute Module Slot: NEC Compute Module; Raspberry Pi Compute Module 1 and 3
• OPS Slot: HD-SDI 1.5G, 3G; HDBaseT receiver; OPS-2C HDMI+DP Interface; OPS-2C Quad 3G SDI; Intel® Atom and Celeron processors, and multi-core processors
• Supported Image Formats: JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
• Supported Video Formats: MP4/MOV/FLV (H.264 video, MP3 audio, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP@ML, MP@HL; WMV (video H.264, wmv L3, wmv profiles simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
• Supported Audio Formats: MP3 (MP3); max. bit-rate 320 kBit/s; WAV(LPCM); max. 48 kHz sampling
• Supported File Storage / File System: MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
• Energy efficiency: ECO mode; annual electricity consumption: 168 kW/h (with 4 hours of operation per day); presence sensor; scattered light sensor; carbon footprint meter; energy efficient class: B
• Material savings: optional legs; manuals on CD
• Environmental standards: EnergyStar 7.0
