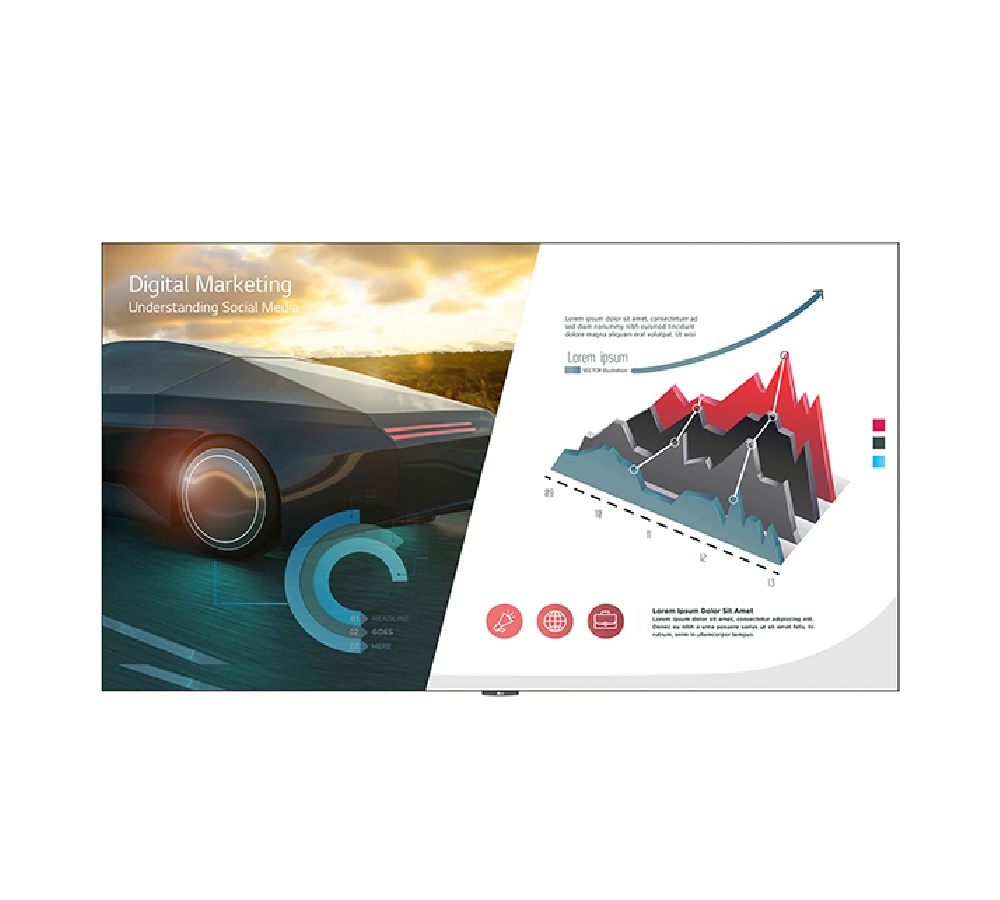

Professional panel LG LAEC015-GN
The LAEC series is LG's large 136-inch LAEC015-GN display, offered as an all-in-one kit that includes a built-in controller and speakers. No complicated installation and configuration, does not require connecting a controller or module configurator. After a simple assembly process, all you need to do is turn on the screen using the remote control. Fast service In the event of a fault related to the LED module or system board, the display allows service from the front. The LED module can be easily detached using the included magnetic tool and quickly replaced without connecting cables. LG Screen Wireless Solution LG One:Quick Share is a wireless screen sharing solution available in LAEC LED display. You can easily share your PC screen with LED display via USB button and built-in Wi-Fi*, and adjust settings (volume, picture mode, auto brightness, etc.) of the connected display without a remote control. In addition, the Office Meeting mode** will help you display the agenda before the meeting starts. Easy installation The installation process for the All-in-One Smart Series is very simple. After securing the two panels included in the package, install the LED display modules. Connect the power cable. This one is simple Special accessories The display comes in a carrying case that contains all the necessary components, including a wall mount and installation tools. The adjustable stand comes separately and you can easily position it depending on your installation location. With this stand you can adjust the height of the screen including the stand from 2m to 2.5m. Easy network connection The LAEC series operates from a single 220V* power cable without the need for complex electrical connections and ensures a neat installation. Possibility of creating a video wall Thanks to the built-in functionality of video walls, setup is very easy, literally in 2 steps:
- Resolution: 1.920 × 1.080
- Pixel type: 3 in 1 SMD
- Pixel pitch: 1.56 mm
- Pixel Density (pixel/m²): 409.600
- Brightness: 500 nits
- Color temperature: 7.300 K
- Viewing Angle (H × V): 160° × 160°
- Brightness Uniformity: 98%
- Color uniformity: ±0.015 Cx,Cy
- Contrast: 3.000:1
- Processing Depth (Bit): 16
- Power consumption (W/screen, max.): 2.000
- Power consumption (W/screen, average): 800
- Energy consumption (W/m², max.): 395
- Power Consumption (BTU/h/screen, max): 6.824
- Power consumption (BTU/h/screen, average): 2,730
- Energy Consumption (BTU/h/m², max.): 1.348
- Power (V): 100 to 240
- Frame Refresh (Hz): 50 / 60 Hz
- Refresh Rate (Hz): ≥2.880Hz
- Service life (hours up to 50% brightness): 100,000
- Operating temperature: 0°C to +40°C
- Operating humidity: <90% RH (non-condensing)
- IP protection (front/rear): IP30/IP20
- Speakers: Built-in (9 W + 9 W)
- Certification: CE, FCC, ETL, CB
- Environmental: RoHS, REACH
- Controller: Built-in
- Cabinet Flatness (mm): ±0.2
- Housing material: Aluminum
- Service access: Front
- Module dimensions (W x H): 250 × 281.25 mm
- Number of modules (W × H): 12 × 6 (Total 72)
- Display size (W × H × D, mm): 3.004.6 × 1.692.1 × 36.5 (up to 70)
- Display surface area (m²): 5.06
- Display weight (kg): 129
