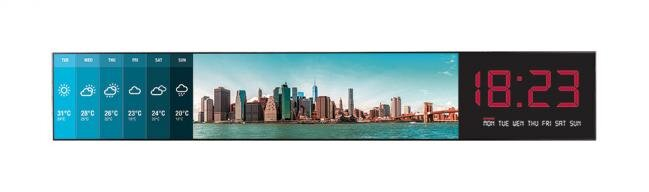

Professional panel LG 86BH5F
LG 86BH5F is a professional ultra-stretch panel designed for demonstrating multimedia with video and text. The best option to attract people's attention and maximize the advertising effect. The unparalleled 58:9 display aspect ratio allows you to accommodate maximum information while maintaining compact dimensions. The PBP (picture by picture) feature allows you to display 2, 3 or 4 independent images and make the most of your screen size. With LG SuperSign media editor, you can easily edit images or video clips of the original content without additional editing programs. You have the opportunity to combine content, which can consist of one video and several pictures (up to 20) at your discretion. LAN networking allows you to control devices, distribute content, and even update firmware. This panel supports the creation of modular screens in 1x4 or 4x1 format (with landscape or portrait orientation) and up to 4x4 with networking. Simplified installation with flush-mount side brackets and classified I/O ports that prevent daisy chain wiring errors.
- Screen size: 86"
- Panel type: IPS
- Main resolution: 3840 x 600 (UHD)
- Aspect Ratio: 58:9
- Brightness: 500 cd/m²
- Contrast: 1100:1
- Dynamic Contrast: 500.000:1
- Viewing angles (H×V): 178 x 178
- Color range: 72%
- Response time: 8ms
- Number of colors: 10 bit
- Maximum resolution: 3840 × 2160 / 60Hz (HDMI1, HDMI 2) 3840 × 2160 / 30Hz (HDMI 3, DisplayPort) 3840 × 600 / 60Hz (OPS) 1920 × 1080 / 60Hz (DVI)
- Recommended resolution: 3840 × 600 / 60Hz (HDMI1~3, DisplyPort, OPS) 1920 × 300 / 60Hz (DVI)
- H-Scanning Frequency: 28.1~83KHz
- V-Scanning Frequency: 50~60Hz
- Video inputs: HDMI1~3 DVI-D Display Port OPS
- Picture Mode: Vivid, Standard, APS, Cinema, Sports, Game, Expert1/2
- Color Temperature: Warm 50 ~ Cool 50
- Built-in Features: Temperature Sensor Auto Brightness Tile Mode Natural Mode @Tile Mode Input Label (PC/DTV) Auto Power/Source Memory Key Lock DPM Select 4K Up Scaling OPS PC compatible (optional)
- Source selection: HDMI1~3 / DVI-D / OPS / DisplayPort
- Time: Clock, Timer (On/Off), Power on Delay, Auto Power On, Auto Standby
- Energy saving: Yes (Minimum, Medium, Maxium) Smart Energy Saving (30% of standard)
- Autoplay from media: Yes (USB, SD, built-in memory)
- PIP/PBP: 2/3/4PBP
- Internal memory: 8 GB (System 4 GB + 4 GB available)
- Wi-Fi: Adapter connection possible
- Inputs: Digital: HDMI x3, DisplayPort, OPS, DVI-D, USB 2.0 x2 Analog x1
- Outputs: Digital (with HDCP): DisplayPort (HDCP) Audio output x1
- External control: RS232C RJ45 IR+B receiver Pixel sensor
- Safety: UL/cUL/CB/TUV/KC
- EMC: FCC Class "A" / CE / KCC
- Software Compatibility: SuperSign CMS SuperSign Control/Control+
- Operating temperature: 0°C – 40°C
- Operating humidity: 10% to 80%
- Included: Remote control (batteries included x2) DisplayPort power cable (2.6 m) RS-232C (3 m) User manual (downloaded from the website)
- Additionally: AN-WF500 (WiFi USB adapter) MP700 KT-OPSA (OPS kit) KT-SP0 (RGB sensor)
- Operating voltage: 100-240V
- Frequency: 50 / 60 Hz
- Power type: 220W (DPM >0.5W)
- Power max: 240 W
- VESA: 600×200
- Frame Width: 5.9mm (T/B) 4.4mm (L/R)
- Case dimensions (W x H x D): 2158.3 x 348.5 x 81.7 mm
- Package dimensions (W x H x D): 2290 x 599 x 228 mm
- Weight (without stand): 20.5 kg
- Weight (with packaging): 38.2 kg
