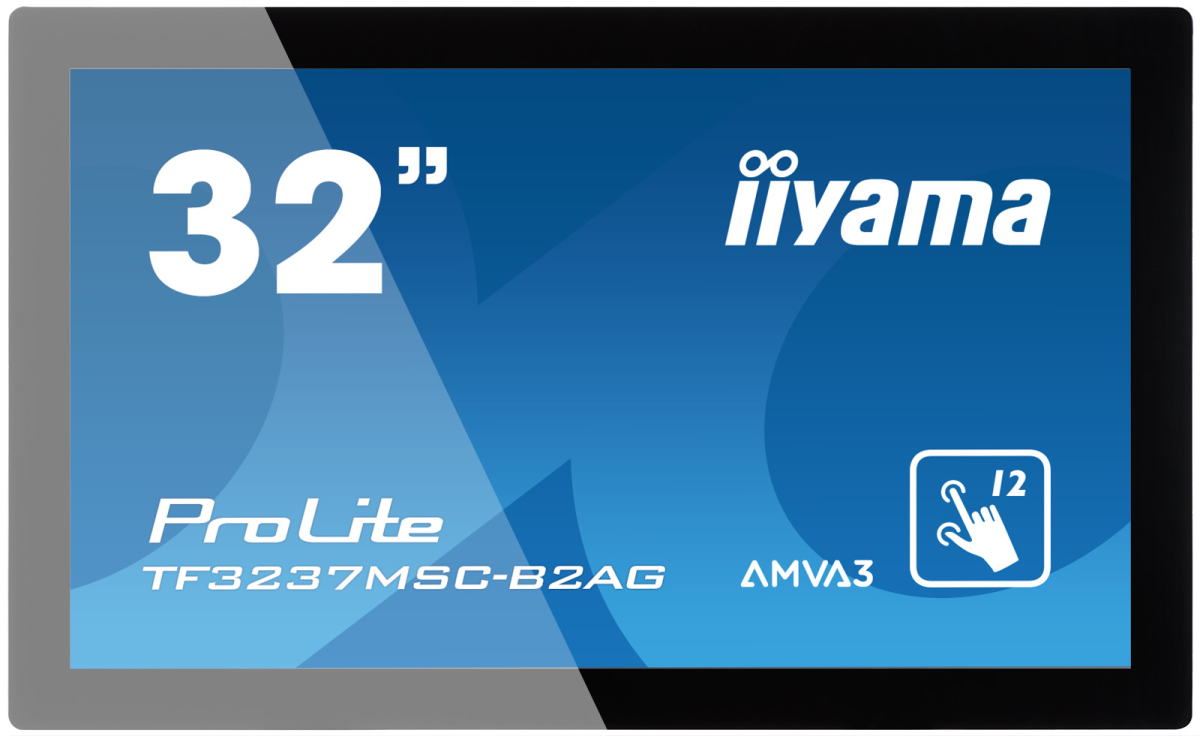

Professional panel Iiyama TF3237MSC-B2AG
Featuring projected capacitive technology, the iiyama ProLite TF3237MSC-B2AG touch monitor features up to 12 simultaneous touches and external mounting brackets, making it ideal for kiosk and retail integrators.
Price on request
- Diagonal: 31.5"; 80cm
- Touch technology: projected capacitive, multi-touch (12 touches - HID, if supported by OS), activated by touching fingers
- Panel: AMVA3 Edge LED-Backlit, AG80 coated Glass
- Glass hardness class: 6H minimum
- Viewable area: 392.8 x 698.4 mm; 15.5" x 27.5"
- Response time: 8ms
- Contrast: 3,000:1 standard
- Brightness: 500 cd/m² standard
- Brightness: 420 cd/m² with touch screen panel
- Viewable area: horizontal/vertical: 178°/ 178°; right/left: 89°/ 89°; up;down: 89°/ 89°
- Number of colors: 16.7 million
- Pixel Size (d x h): 0.364 x 0.364 mm
- Resolution: Full HD 1080p, 1920 x 1080 (2.1 MP)
- Horizontal Frequency: 31.47 - 67.5 KHz
- Vertical scan frequency: 47 - 63 Hz
- Synchronization: Separate Sync
- Aspect Ratio: 16:9
- light transmittance: 84%
- Maximum (non-break) working time: 20 hours/day
- Analog input: VGA
- Digital input: DVI-D, HDMI
- External connector: RS 232C
- Connectors: USB (for touch interface)
- Plug & Play: VESA DDC2B™
- Controls: On-Screen Menu in 8 languages (DE, EN, ES, FR, IT, PL, RUS, IT) and 6 control buttons (Power, Scroll up/Volume+, Scroll down/Volume-, Auto/Exit, Input Select/OK, Menu)
- Controls: contrast, brightness, color settings, screen settings (aspect ratio, gamma, sharpness, horizontal position, vertical position, clock, phase, auto settings) other settings (language, OSD timeout, volume, mute, fan, screen burn-in, logo, factory settings) source selection, information
- Speakers: 2 x 7 W (stereo)
- Anti-theft protection: yes
- Safety: CE, TÜV-Bauart, CU, IPX1 (front), 60950-1 ball drop test
- VESA standard: 400 x 200 mm
- Color: black
- Orientation: landscape/portrait/face-up
- Driver: multi-touch: Windows® 7/8/10, Linux (3.0x) (for more details see manual p.16)
- Contents: Power cord, VGA cable, DVI-D cable, USB cable, remote control, clamp, quick start guide, safety guide
- Power supply: AC 100 - 240 V, 50 / 60 Hz
- Power supply: internal
- Power consumption: 48 W standard; max. 0.5 W (sleep mode)
- Power Management: VESA DPMS
- Dimensions W x H x D: 781.5 x 476 x 69 mm
- Weight: 17.3 kg
