Digital Signage

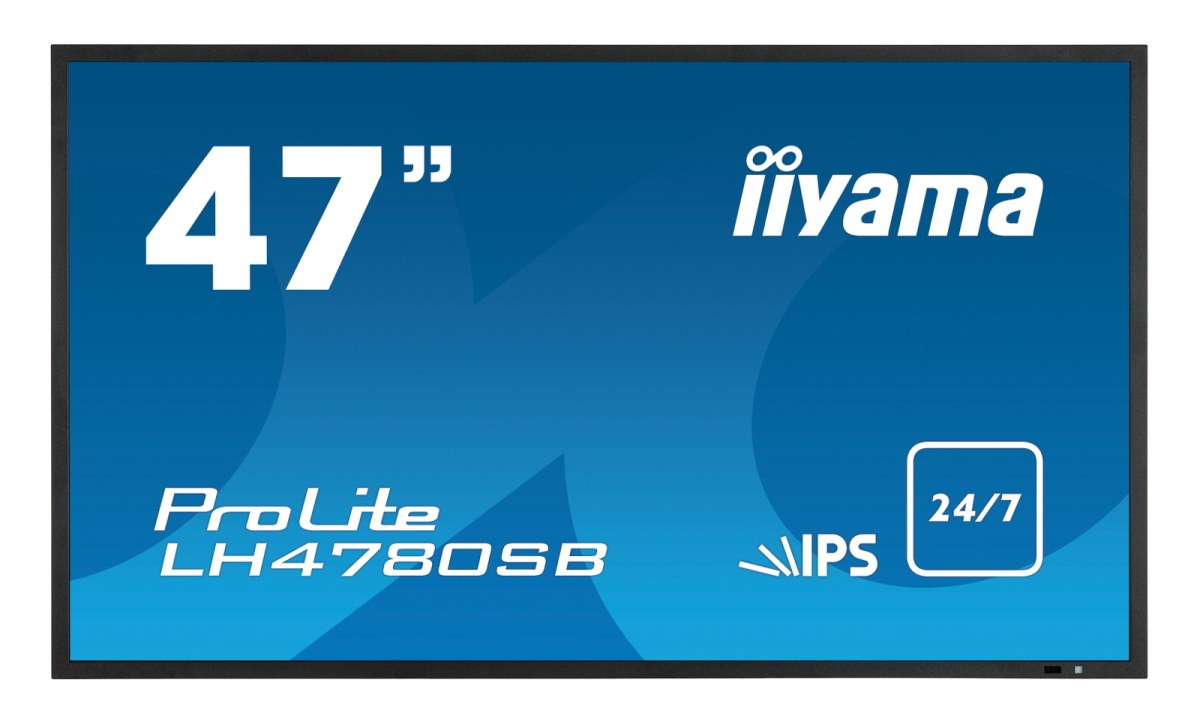

Professional panel Iiyama LH4780SB-B1
The LH4780SB-B1 uses a 47-inch diagonal IPS panel with a 1300:1 contrast ratio, 12 ms response time and 700 cd/m2 brightness. The LH5580S-B1 is equipped with a 55-inch AMVA3 panel, which has a 4000:1 contrast ratio, 450 cd/m2 brightness and a 6ms response time. The model provides good visibility (178 degrees horizontally and vertically) and a refresh rate of 50-85 Hz. The model can simultaneously receive video signals from several sources. This allows you to use monitors to broadcast several images at once and eliminates the need for pre-processing of the multimedia stream. The ability to broadcast multiple video signals simultaneously allows you to support the PIP (picture in picture) and PBP (picture next to picture) functions.
Price on request
- Diagonal size: 47"
- Type: IPS LED
- Resolution: 1920 x 1080
- Pixel size: 0.542 x 0.542 mm
- Active display area: 584.8 x 1039.7 mm
- Brightness: 700 cd/m²
- Viewing angle (horizontal/vertical): 178°/ 178°
- Response time (grey-to-grey): 12 ms
- Contrast ratio: 1,300:1
- Horizontal scanning: 31.5 - 91.1 KHz
- Frame rate: 50 - 85 Hz
- RGB input: VGA (D-Sub), S-Video, BNC jack, mini jack
- Video input: DVI-D, 2 x HDMI, DisplayPort
- Audio input: mini jack
- External control: RS232C, RJ45 (for LAN control)
- Speakers: 2 x 10 W (stereo)
- Power supply: AC 100 - 240 V, 50 / 60 Hz
- Power consumption when on: 140 W
- Standby power consumption: 0.8 W
- Power supply type: internal
- Device dimensions: 1080 x 624.5 x 46.5 mm
- Set weight: 17 kg
- VESA mount: 400 x 400 mm
- Safety Certificate: CB, CE, EAC, TÜV-Bauart
