Digital Signage

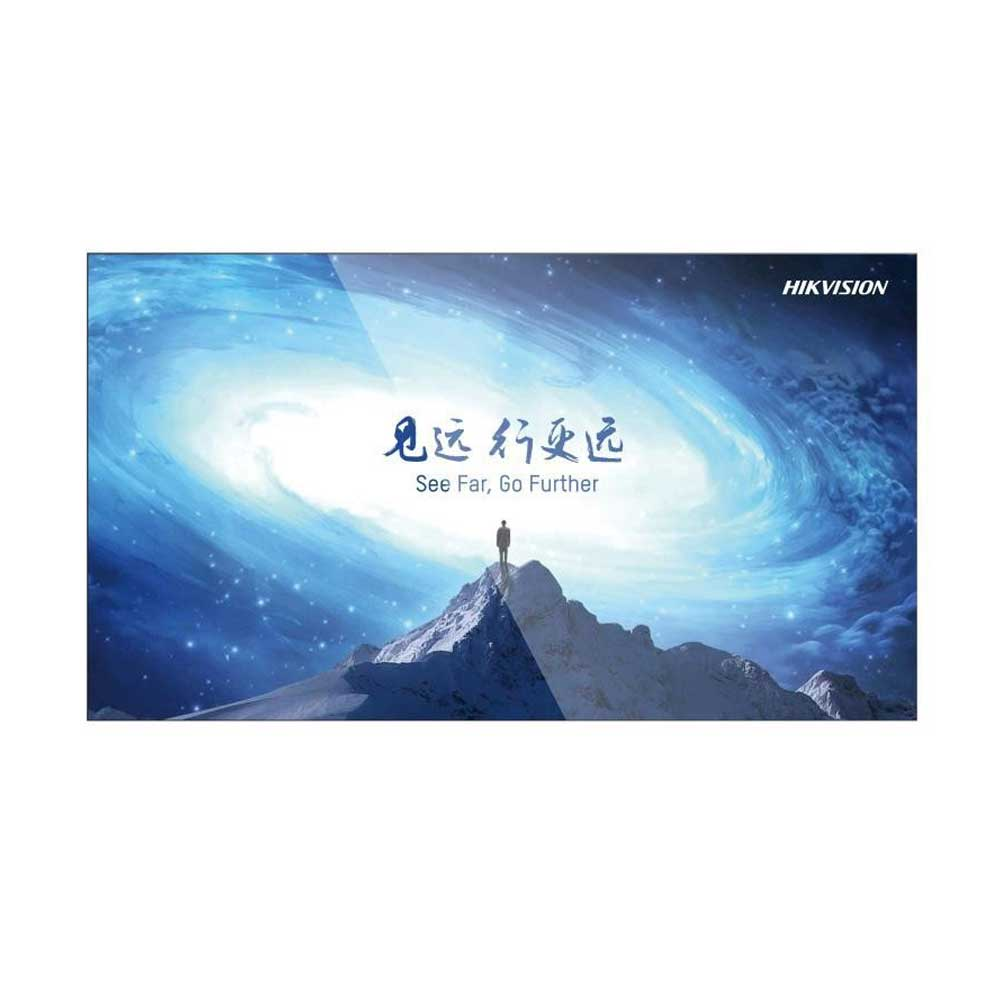

Professional panel HIKVISION DS-D2065LU-Y
The 65-inch panel for the Hikvision DS-D2065LU-Y video wall with a resolution of 3840×2160 is adapted for round-the-clock operation. Equipped with video inputs HDMI, DP, DVI, VGA, USB ports, RS-232.
Price on request
- Screen size: 55''
- Resolution: 1920 × 1080 @ 60 Hz (downward compatible)
- Brightness: 500 cd/m2
- Viewing Angle: Horizontal: 178°, Vertical: 178°
- Color depth: 8 bit, 16.7 M
- Contrast ratio: 1200:1
- Response time: 8ms (switchable between grayscale)
- Color gamut: 72% NTSC
- Surface treatment: Matt surface 25%, 3H
- Active display area: 1209.6 × 680.4 mm
- Backlight: Direct LED backlight
- Pixel pitch: 0.63 mm
- Seam: 3.5 mm
- Frame width: 2.3 mm (top/left), 1.2 mm (bottom/right)
- Video/audio input: HDMI × 1, DVI × 1, VGA × 1, DP × 1, USB × 1
- Video/audio output: DP × 1, HDMI × 1
- Control interface: RS232 (input) × 1, RS232 (output) × 1
- Power: AC 100 to 240 V, 50/60 Hz
- Power consumption: ≤ 187 W
- Standby power consumption: ≤ 0.5W
- Operating temperature: 0 to +40°C
- Operating humidity: 10 to 80% (non-condensing)
- Storage temperature: -20 to +60°C
- Storage humidity: 10 to 90% (non-condensing)
- Case material: SECC
- VESA: 600 × 400 mm
- Contents: LCD screen × 1, power cable × 1, network cable × 1, screw × 4, remote control × 1, IR receiver × 1, CD-ROM × 1, RS-232 converter × 1, quick start guide × 1
- Package dimensions: 1213.5 × 684.3 × 71.74 mm Box for two screens: 1404 × 910 × 464 mm Box for one screen: 1404 × 910 × 464 mm
- Net weight: 25.87±0.5kg (single screen)
- Gross weight: Box for two screens: 65.73 ± 0.5 kg Box for one screen: 37.39 ± 0.5 kg
