Digital Signage

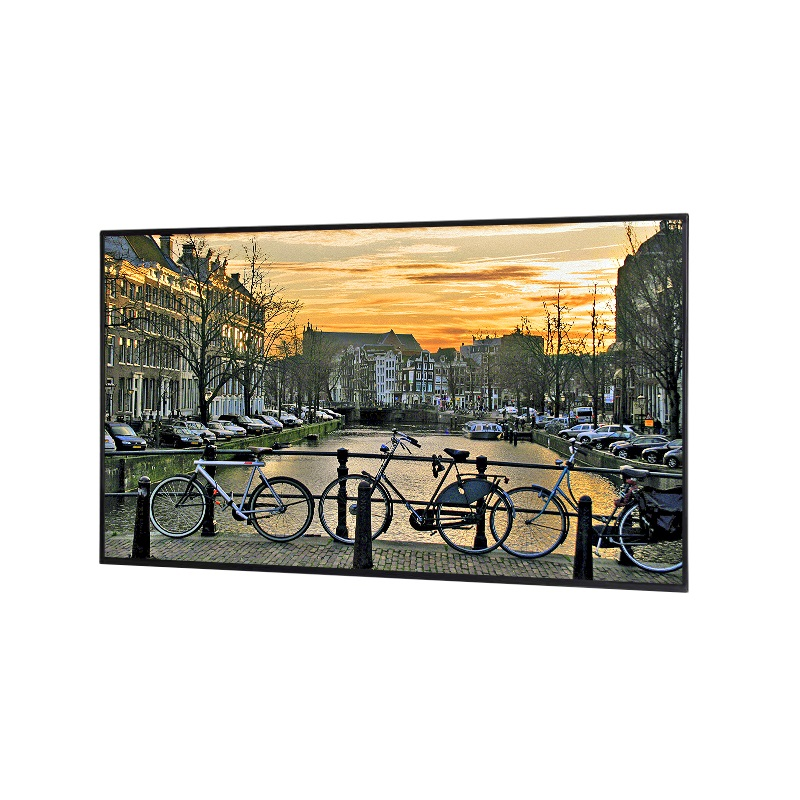

Professional panel EliteBoard LC-65UH1AX
The LC-65UH1AX Advanced PRO series display is a professional solution for Digital Signage systems. Reliable 65” LCD display, 24/7 operation, open modern Android 11.0 OS, powerful processor and powerful graphics adapter, direct LED intelligent backlight and control via Ethernet and RS232.
Price on request
- Resolution: 3840×2160
- Diagonal (inch): 65"
- Pixel Size (mm): 0.372 x 0.372
- Aspect Ratio: 16:9
- Brightness (cd/m2): 700
- Contrast: 4000:1
- Viewing Angles: 178° / 178°
- Response (ms): 8
- Palette (Million): 1.07Billion
- MTBF (hours): 50000
- Screen refresh rate (Hz): 60
- VESA standard: 600x400
- Speakers (W): 2x10
- HDMI: x3 IN / x1 OUT
- Display Port: INx1
- RS-232: x1
- RJ-45: x1 IN / x1 OUT
- USB: x1 USB 2.0 / x1 USB 3.0 / x1 USB Type-C
- Positioning: frontal and landscape
- Audio IN/OUT (mm): INx1 (3.5) / OUTx1 (S/PDIF)
- OS: Android 11.0
- OPS connector: x1 JAE-80 pin
- RAM: 2 GB
- ROM: 32 GB
- Operating hours: 24/7
- Case material: steel
- Warranty: 3 years
- Operating temperature: 0°C ~ 40°C
- Operating humidity: 10%~90%
- Storage temperature: -20°C ~ 60°C
- Color: black
- Power consumption (W): 165
- Operating voltage (V): AC100V~240V, 50-60Hz
- Dimensions (mm): 1476.7x79.8x851.7
- Seam thickness (mm)/frame thickness (mm) top; bottom; right-left: 15.9x15.9x15.9x15.9
