Digital Signage

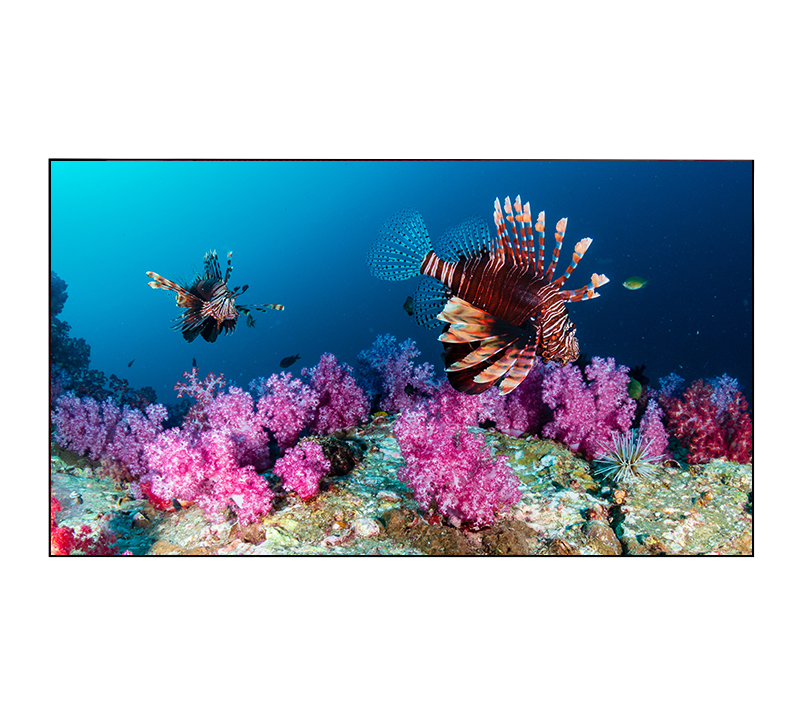

Professional panel EliteBoard BB657UCBED
EliteBoard BB657UCBED is a reliable professional panel for building video walls with the ability to operate continuously 24/7. Pass-through Display Port connectors output sources supporting resolutions up to 4K to the video wall. High image quality is ensured by ADS-FFS technology. The panel is designed for building video walls in shopping centers, sports complexes, mass entertainment centers, control rooms, control and process control rooms, and situation rooms. The all-metal housing guarantees the absence of static electricity and electromagnetic radiation, and protects the device from exposure to strong electromagnetic fields.
Price on request
- Diagonal: 65
- Format: 16:9
- Resolution: Ultra HD (3840 x 2160)
- Brightness (cand./m2): 500
- Contrast: 1200:1
- Response time (ms): 12
- Viewing Angle (Horizontal/Vertical): 178° / 178°
- 3D support: no
- Left frame thickness (mm): 2.3
- Right frame thickness (mm): 1.2
- Top frame thickness (mm): 2.3
- Bottom frame thickness (mm): 1.2
- Seam(mm): 3.5
- Technologies, functions, capabilities: ADS matrix type, 24/7 operation mode, Portrait/landscape orientation; Supports input resolution up to 4K/60Hz, DP pass-through interface for signal cascading up to 4K/60Hz, Housing material: steel
- Possibility of building a video wall: yes
- Inputs: HDMI x 1, VGA x 1, DVI x 1,CVBS composite input x 1; DP x 1, RS232
- Outputs: RS232
- Power consumption (W): 250 W
- Weight, kg: 30
- Panel dimensions (W x H x D, mm): 1432.6 × 807.6 × 108.1 mm
- VESA Mount: 600 x 400 mm
- Warranty: 36 months
