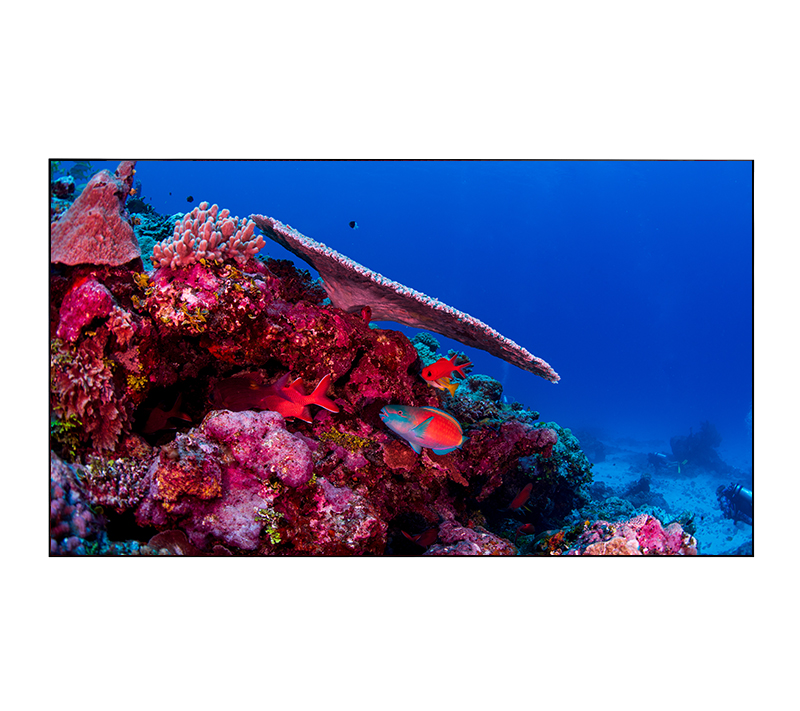

Professional panel EliteBoard BB495FCBED
EliteBoard BB495FCBED is a reliable professional panel for building video walls with the ability to operate continuously 24/7. Pass-through Display Port connectors output sources supporting resolutions up to 4K to the video wall. High image quality is ensured by ADS-FFS technology. The panel is designed for building video walls in shopping centers, sports complexes, mass entertainment centers, control rooms, control and process control rooms, and situation rooms. The built-in controller allows you to divide the image into panels within a video wall, perform three-dimensional signal processing to obtain high-quality detailed images, signal amplification function, high-quality image reproduction through stable, correct signal processing. The all-metal housing guarantees the absence of static electricity and electromagnetic radiation, and protects the device from exposure to strong electromagnetic fields.
- Diagonal: 49
- Format: 16:9
- Resolution: Full HD (1920 x 1080)
- Brightness (cand./m2): 500
- Contrast: 1400:1
- Response time (ms): 8
- Viewing Angle (Horizontal/Vertical): 178° / 178°
- 3D support: no
- Thin bezel: yes
- Left frame thickness (mm): 2.3
- Right frame thickness (mm): 1.2
- Top Frame Thickness (mm): 2.3
- Bottom frame thickness (mm): 1.2
- Seam (mm): 3.5
- Technologies, functions, capabilities: Advanced series: ADS matrix type, Light transmission (up to 90%), 24/7 operation mode, Pre-factory calibration, Supports input resolution up to 4K/60Hz, Pass-through DP interface for cascade signal transmission up to 4K/60Hz, Housing material - steel
- Possibility of building a video wall: yes
- Sound power output: no
- Inputs: DVI x 1, HDMI x 2, VGA x 1, DP x 1, RS232
- Outputs: DP x 1, RS232
- Power consumption (W): 127 W
- Weight, kg: 26
- Panel dimensions (W x H x D, mm): 1078 × 609 × 92 mm
- VESA Mount: 400 x 400 mm
- Warranty: 36 months
