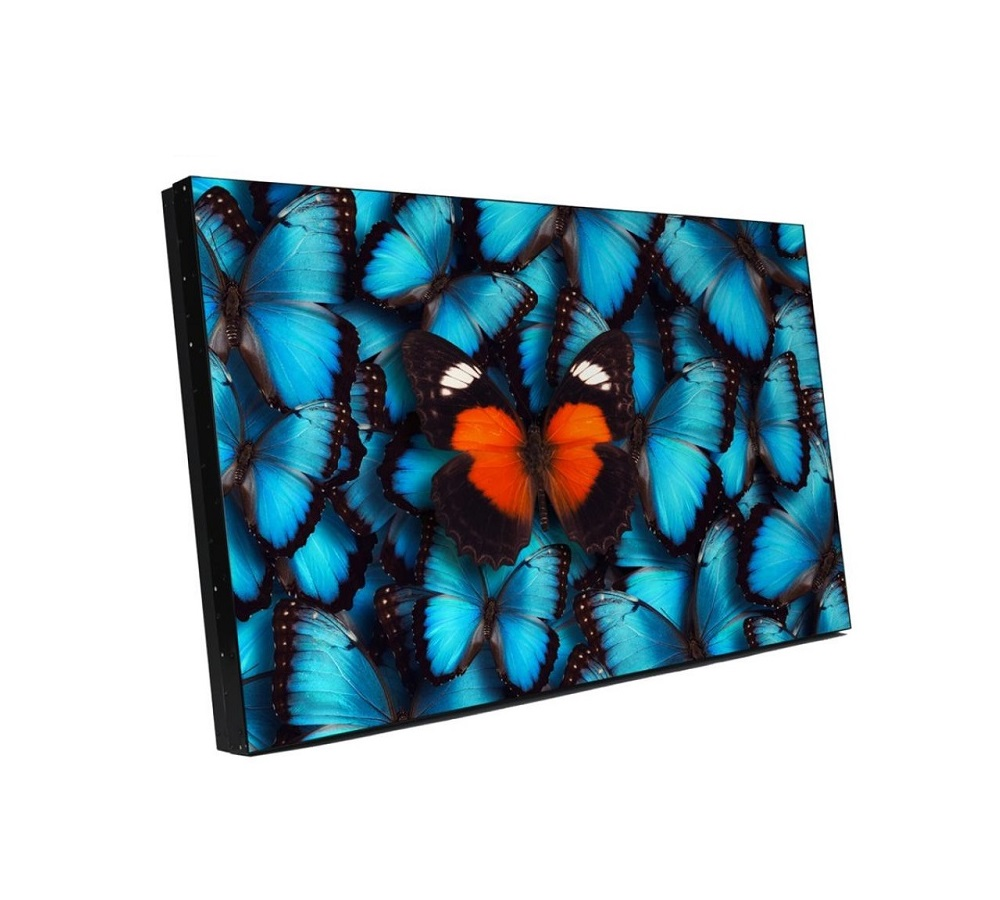

Professional panel Barco LVD5521B, 55"
The Barco OverView LVD5521B is a high-performance, low-cost 55-inch mid-brightness LCD panel (500 cd/m² nominal) designed for video wall applications. With a narrow 1.8 mm (0.07 in) bezel, excellent color rendering and contrast, and a wide viewing angle, the OverView LVD5521B is well suited for entry-level and mid-range installations. Barco Sense X's exceptionally innovative automatic real-time color and brightness calibration system ensures that the entire wall consistently displays a perfectly balanced image. The absence of cooling fans not only minimizes noise, but also means there are no moving parts that are subject to wear and have a limited lifespan. Also important is DisplayPort V1.2, which allows you to pass-through 4K content at 60Hz to up to 4 displays and easily connect devices with fewer cables. The Barco OverView LCD video wall series is designed to meet the needs of mission-critical applications where unexpected disruptions must be minimized. Therefore, to ensure optimal uptime, the OverView LVD5521B platform includes a number of features to prevent downtime and speed up service. Input boards and power supplies can be quickly removed from the display, making them easy to service and replace. The LCD Connect system greatly simplifies video wall management, increasing ease of use.
- Diagonal: 55
- LCD technology: IPS
- Resolution: Full HD (1920 x 1080)
- Backlight: Direct LED backlight
- Aspect Ratio: 16:9
- Brightness: 500 cd/m2
- Contrast: 1200:1 (nominal) 60000:1 (dynamic)
- White Point: Native: 10,000K (typical)
- Calibration: Sense X automatic color and brightness calibration
- Accuracy: 10-bit processing
- Backlight life: 60,000 hours (typical)
- Cooling: Fanless
- Screen fog: 44%
- Operating temperature: 0-40°C
- Operating humidity: 20–80% non-condensing
- Mounting: VESA 600x400
- DisplayPort: 2 x DP1.2 input (if cable length exceeds 3 m (10 ft), DisplayPort 1.2 cables must be used) 1 x output
- Etdernet port: 2
- HDCP: Yes
- HDMI output: 2 inputs
- USB: 2 inputs (power only)
- Input supply voltage: 100–240 VAC current, 50–60 Hz
- Power consumption: 155 W
- Dimensions: 1211.4 x 682.2 x 100 mm (47.69 x 26.86 x 3.94 inches)
- Active screen area: 1209.6 mm x 680.4 mm (47.62 x 26.79 inches)
- Weight: 20.5 kg (45.19 lb)
- Total frame width (two adjacent displays): 1.8 mm (0.07 in)
