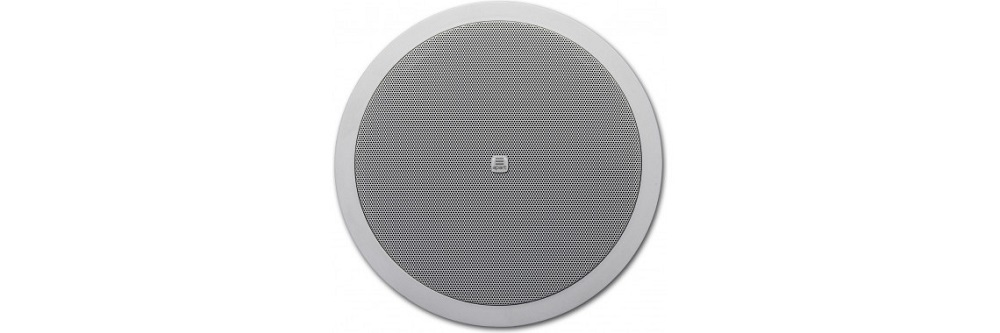

Ceiling speaker system BIAMP CM8E Apart
The Apart CM8E is a two-way in-ceiling speaker designed for use in 100V broadcast systems. It features an 8" diameter LF driver, a 1" diameter coaxially mounted HF driver and a high quality 100V transformer with taps for varying power outputs. The Apart CM8E loudspeaker is well suited for playing background music and voice announcements. The speaker frame is made of high quality ABS plastic. Apart CM8E is available in white.
Price on request
- External diameter (mm): 244
- Depth (mm): 87
- Mounting hole (mm): 223
- Woofer (inch): 8
- Tweeter (inch): 1
- Mounting system: 3 screws
- Transformer terminals 100V (W): 6-3-1.5
- Low impedance input: Yes
- 100V input: Yes
- Impedance (Ohm): 16
- Low impedance power (W): 50
- SPL 1W/1m (dB): 88
- maxSPL 1m (dB): 96
- Frequency response (Hz): 50 - 20k
- Housing material: ABS plastic
- Protective grille material: Aluminum
- IP class: 54
- Speaker Shape: Round
- Horizontal dispersion (1000Hz): 180°
- Vertical dispersion (1000 Hz): 180°
- Speaker design: Two-way
