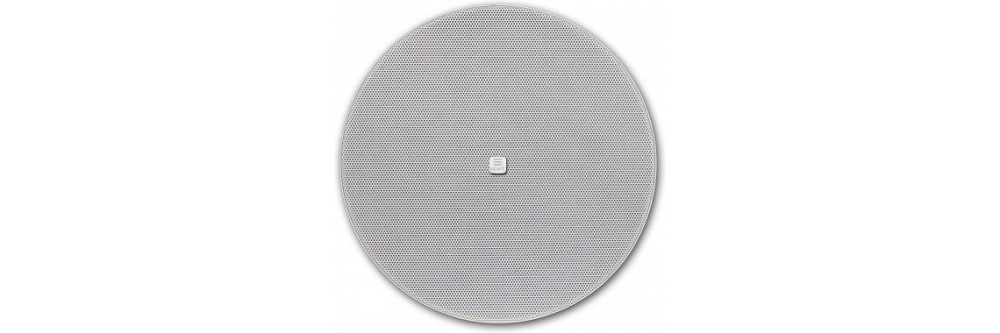

Ceiling speaker system BIAMP CM20DT Apart
BIAMP CM20DT is a unique built-in speaker with two speakers: a 6.5-inch woofer. It supports two connection modes: 16 ohms and 70/100 V. It is important to note that the high quality 70/100 V transformer is clearly color coded, making the connection process easier. For ease of use, the transformer is supplied with a label that matches the colors of the cables connected to the convenient Quick Fit connector with push-in terminals. In 16 Ohm mode, it is possible to connect up to 4 speakers connected in parallel to each channel of a standard 4 Ohm amplifier. Thanks to its frameless design, the BIAMP CM20DT loudspeaker fits easily into existing interiors, making it an ideal solution for a variety of applications where it is important to combine high-quality sound with room aesthetics.
- External diameter (mm): 210
- Depth (mm): 80
- Mounting hole (mm): 186
- Woofer (inch): 6.5
- Tweeter (inch): 1
- Mounting system: 3 screws
- Transformer terminals 100V (W): 20-10-5
- Low impedance input: Yes
- 100V input: Yes
- Impedance (Ohm): 16
- Low impedance power (W): 60
- SPL 1W/1m (dB): 86
- maxSPL 1m (dB): 104
- Frequency response (Hz): 60 - 20k
- Housing material: ABS plastic
- Protective grille material: Steel
- IP class: 50
- Speaker Shape: Round
- Speaker design: Two-way
