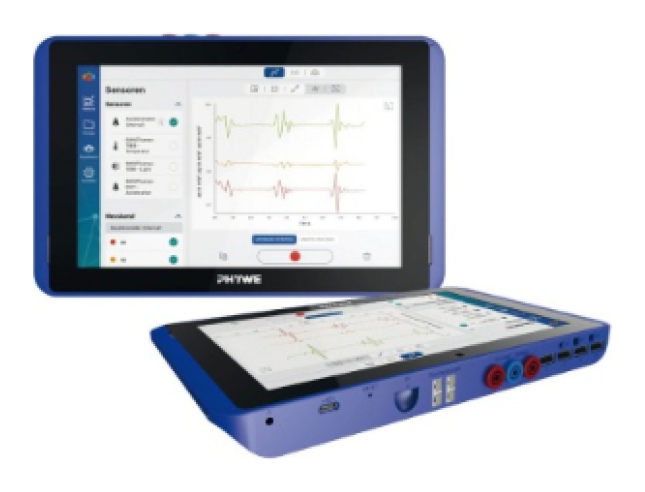

Digital laboratory PHYWE. Tablet data logger Cobra SMARTlink 12999-99E
Cobra SMARTlink is a modern, high-performance 3-in-1 tablet. Not only is it a great measuring tool and display for digital science lessons, but it's also a fully functional Android tablet. Featuring a brilliant 10.1" display combined with powerful software and 7 built-in measurement sensors, it perfectly meets the demands of today's digital science learning. Especially in laboratory and demonstration work both at school and at university, the tablet is very good, easy and reliable to use.
Price on request
- 8-core 2.0 GHz processor, 4 GB DDR3 RAM
- Internal memory 64 GB, expandable up to 128 GB via microSD card
- 10.1" LCD touchscreen (16:10), 1200 x 1920 resolution (WUXGA)
- Front camera 5 MP, main camera 12 MP
- Built-in speaker, built-in microphone, 3.5mm headphone jack
- Bluetooth 5.0, GPS, WiFi standard 802.11 a/b/g/n/ac
- 1 x USB type C for charging the device and for transferring data, e.g. via USB stick, PC
- Battery: 10,000 mAh
- Weight: ~830 g
- Built-in sensors and inputs
- Temperature: including 2x K-type thermocouples
- Measuring range: -200 … 1200 °C
- Resolution: 0.1 °C
- Accuracy: +/- 3
- Baud rate: 10Hz
- Voltage
- Measuring range: -30 V … +30 V
- Resolution: 20 mV
- Accuracy: +/- 1
- Baud rate: 1KHz
- Current strength
- Measuring range: -1A … +1A
- Resolution: 0.5 mA
- Accuracy: +/- 1
- Baud rate: 1KHz
- Illumination
- Measuring range: 1-128 kLx
- Resolution: 1 Lx
- Accuracy: +/- 4
- Baud rate: 10Hz
- Humidity
- Measuring range: 0 … 100%
- Resolution: 0.1%.
- Accuracy: +/- 4% (at 0-80%).
- Baud rate: 10Hz
- UV
- Measuring range: 0 … 400 W/m²
- Resolution: 0.1 W/m²
- Accuracy: +/- 4
- Baud rate: 10Hz
- Acceleration
- 4 x USB 2.0 inputs for Cobra SMARTSense sensors, maximum data transfer rate up to 10 kHz
- Equipment
- 1x Cobra SMARTlink tablet
- 1x Type-C charging cable with charging adapter
- 2x Temperature probe type K
- 2x Connection cable, red with 4 mm plug, length 50 cm
- 1x Connection cable, blue with 4 mm plug, length 50 cm
- 1x High quality packaging box
- Country of origin: Germany
- Laboratory type Portable
- Level of education Primary general education, Basic general education, Higher education
