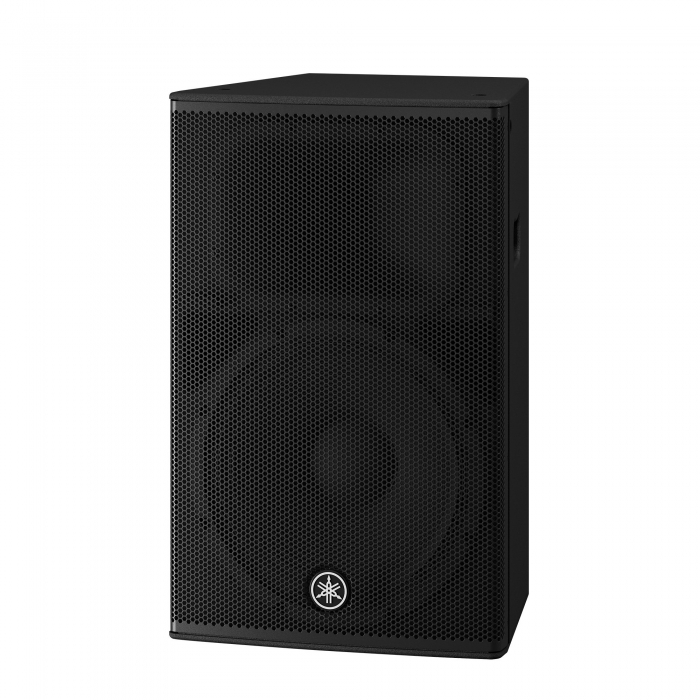

Yamaha CHR15 Passive Speaker System
The CHR15 is a 2-way bi-amp speaker with a 15" woofer and a 1.4" tweeter. It is ideal for use as a main speaker. The CHR15 features a carefully selected and tuned driver in the same plywood housing used in Yamaha's premium CZR series, delivering best-in-class sound quality and reliability.
Price on request
- Speaker type: Two-way speaker system with bass reflex
- Frequency response (-10dB): 49 Hz–20 kHz
- Coverage area: (D) 90ﾟ x (V) 60ﾟ
- Crossover: 2.0 kHz
- Nominal impedance: 8 ohms
- Sensitivity (1 W; 1 m on axis): - Sound pressure level 95 dB
- Peak. (calculated): - Sound pressure level 125 dB
- LF: - Diameter: 15-inch cone; voice coil: 2.5 inches; magnet: ferrite
- HF: - Aperture: 1.4 inches; type: 1-inch horn-type compression speaker; magnet: neodymium
- Noise: - 250 W
- Program: - 500 W
- Peak: - 1000 W
- Inputs/Outputs: speakON NL4MP x 2 (parallel)
- Body material: Plywood
- Finish: Durable polyurea coating, black
- Handles: Side x2
- Rod Socket: Φ35mm x2 (Bottom, 0° or -7°)
- Mounting: Top x 2, Rear x 1 (fits M10 x 30-50mm eyebolts)
- Dimensions (W x H x D), mm: 432 mm x 692 mm x 405 mm
- Weight without packaging: 22.0 kg
