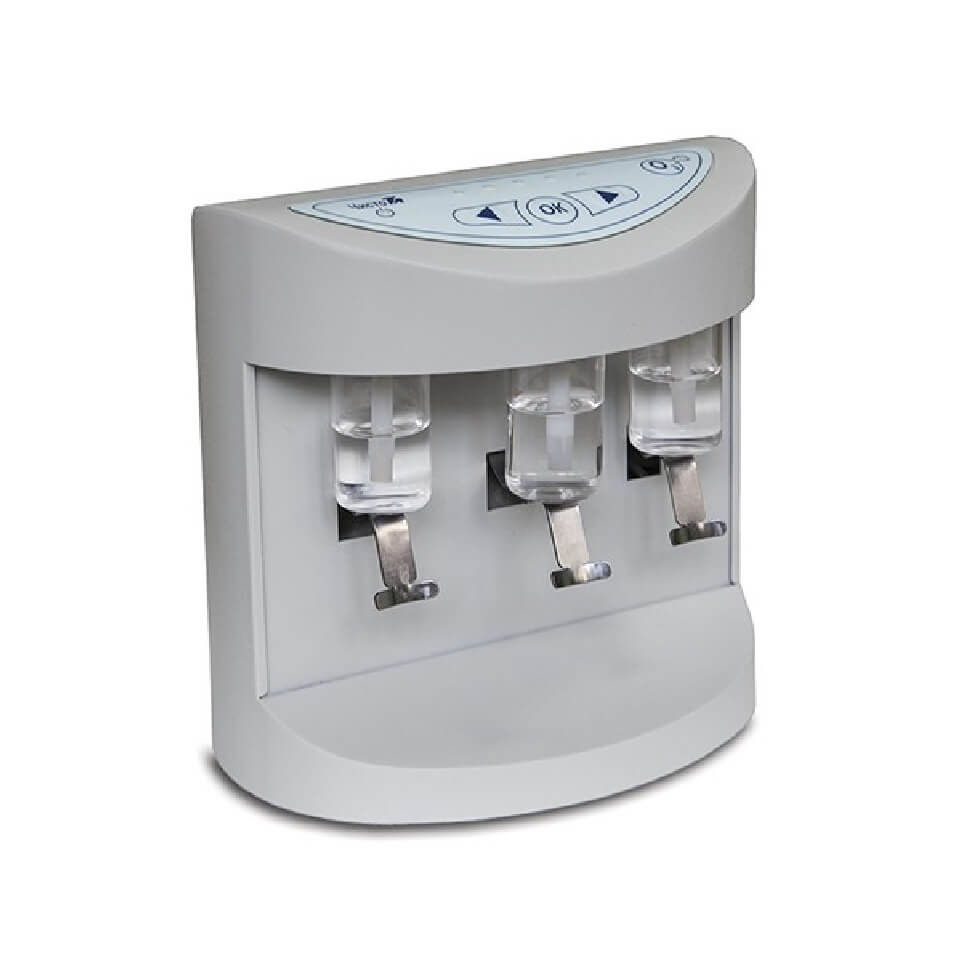

Ozonizing device Chisto-TA
Ozonizing device Chisto-TA The ozonizing device (attachment) Chisto-TA is intended for supplying ozone to the electrochemical cells of the voltammetric analyzer TA-Lab, as well as for washing chemical glassware and quartz beakers (V = 20 ml). The Chisto-TA set-top box contains an ozone generator and has a control panel for operation in autonomous mode without connecting additional devices. The control panel contains control buttons and indicators of the washing process. The Chisto-TA ozonizing device is an attachment to the voltammetric analyzer TA-Lab and combines two devices: ozonizing device (ozonizer); a device for washing quartz beakers used for measurements and preparing samples for measurements on the TA-Lab analyzer. Pure-TA has a wide range of applications and is used for the following purposes: washing the electrochemical cells of the voltammetric analyzer; preparation of quartz cups for use in sample preparation procedures and measurements on a voltammetric analyzer; washing of chemical glassware; preparation of samples for measurements by ozonation. The device (attachment) Chisto-TA belongs to auxiliary laboratory equipment. Advantages of using the Chisto-TA ozonizing device: Reducing analysis time by simplifying and speeding up the process of washing cups and chemical glassware. Increasing the accuracy of measurement results due to the efficiency of washing dishes and reducing the “idle” experience. When determining mercury in water: reducing the cost and reducing the time of analysis due to the express preparation of samples for measurements. Delivery set of ozonizing device (attachment) Chisto-TA Name Quantity, pcs. 1. Prefix Chisto-TA 1 2. Power cord 1 3. Gas hose for supplying ozone to the TA-Lab analyzer 1 4. Glass tube 1 5.Operation manual 1 Manba: https://www.nv-lab.ru/catalog_info.php?ID=3296
- Parameter: Value
- Ozone output, mg/h: 120±20
- Ozone input into the ozonized solution, mg/min: 0.8 – 1.0
- Number of gas inlet/outlet fittings, pcs.: 2
- Number of simultaneously washed cups, pcs.: 3
- Settable washing time, min: 1 – 5
- Number of gas-conducting vibrating mixers, pcs.: 3
- Power consumption, W, no more: 15
- Overall dimensions, mm: 170 × 145 × 175
- Weight, kg: 1.4
- Average service life, years, not less: 3
- Power supply (voltage/frequency): 220±22 V;
- 50±1 Hz
- Operating conditions:
- - ambient air temperature, °C;
- - relative humidity at 25°C, %;
- - atmospheric pressure, kPa: +10 ... +35;
- 30...80
- 84.0 … 106.7
