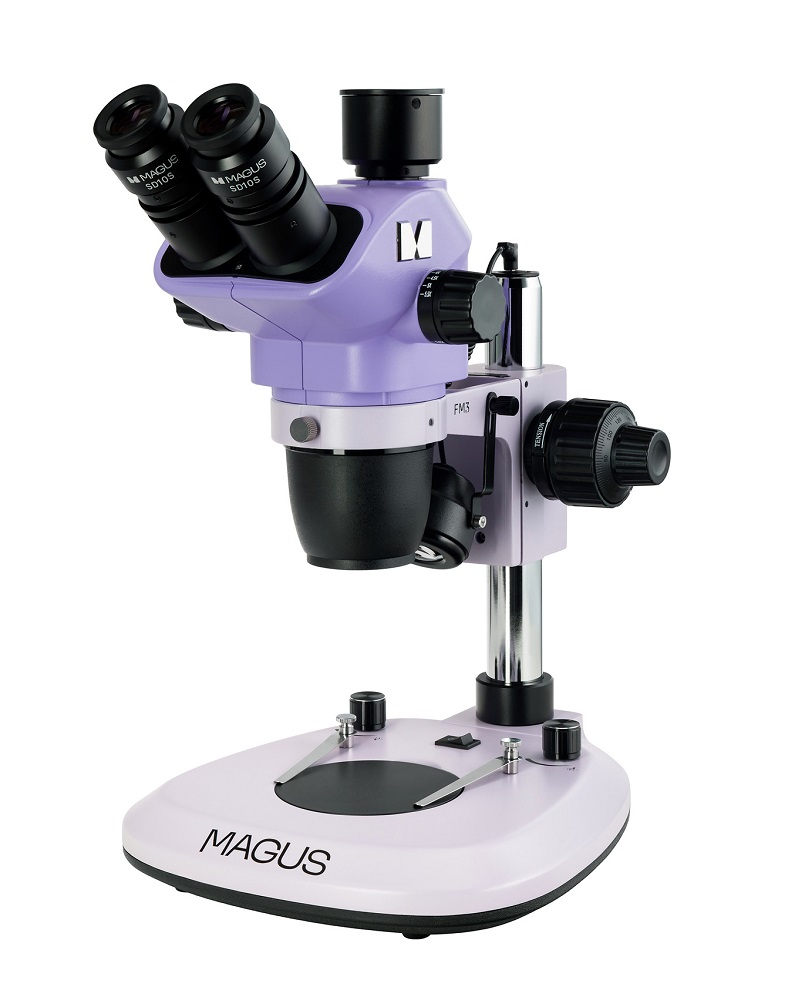

Optical stereoscopic microscope MAGUS Stereo 8T
MAGUS Stereo 8T is a stereo microscope for applied work: it can be used to solder small parts, restore objects, and monitor product quality. The microscope is designed according to the Greenough optical scheme: two autonomous optical channels form a stereoscopic angle of 15°. In the basic equipment, the device can carry out studies in transmitted and reflected light in a bright field; a wide range of additional accessories makes it possible to work in a dark field or in polarized light. The microscope forms a sharp, three-dimensional image; the image in the optical channels is formed non-inverted, making it convenient to work with the object. The MAGUS Stereo 8T model has a trinocular visual attachment: two tubes are designed for observation through eyepieces, the third is a visualization channel for a digital camera. The nozzle can change its position 360 degrees for more convenient and efficient work. Diopter correction is carried out on the eyepieces - the microscope set includes 10x/22 mm eyepieces. For users wearing glasses, the exit pupil is placed at a sufficient distance. The zoom lens changes the magnification by 8.4 times. The magnification in such lenses is adjusted simultaneously with the focal length, which is why the image of the object remains in focus at all times. You can add magnification or expand the field of view using additional attachments. Sharpness is adjusted by coaxially located coarse and fine focusing knobs. Fine tuning is useful when working with high magnification lenses. The adjustment knobs are located on a tripod, and there is also a mechanism for adjusting the rigidity of the coarse focusing mechanism. Transmitted and reflected light illuminators operate on three-watt LEDs. The reflected light illuminator generates oblique lighting. The operating time of the LEDs is designed for 50 thousand hours. For comfortable work, you can choose one of two inserts in the table. Use a transparent plate to work in transmitted light: it diffuses the light and illuminates the sample softly and uniformly. To examine opaque samples, use a black and white plate. It is installed on the table in accordance with the color of the object: the black side to the light object and the white side to the dark one. In addition to this microscope model, you can purchase the necessary accessories. Eyepieces or attachments will give the desired magnification; using a calibration slide, you can take measurements of the sample. Illuminators - classic ring, ring with sector switching or with a polarization filter, illuminator on a flexible tripod - are used for different types of work and provide subtle and functional illumination of the object. Using a mechanical stage, the sample can be smoothly moved along two axes, and is especially useful at magnifications greater than 20x. The optical head, when installed on different tripods, will allow you to choose the most advantageous position for observation.
- Microscope type: stereoscopic/instrumental
- Attachment type: trinocular
- Nozzle: 360° rotatable, lockable in any position
- Eyepiece tilt angle: 45°
- Magnification, x: 6.5–55 basic equipment (*optional: 3.25–330); zoom ratio 8.4:1
- Diameter of the eyepiece tube, mm: 30
- Eyepieces: 10x/22 mm, remote pupil (*optional: 10x/22 mm with scale, 15x/16 mm, 20x/12 mm, 25x/9 mm, 30x/8 mm)
- Objectives: 0.65–5.5x (*optional: when using additional eyepieces and lens attachments: 3.25–330x)
- Working distance, mm: 105 (*optional: when using additional eyepieces and lens attachments: 177, 47, 26)
- Interpupillary distance, mm: 54–75
- Linear field of view, mm: 33.8–4 (*optional: when using additional eyepieces and lens attachments: 67.7–0.9)
- Stage, mm: black and white plate Ø95 mm, transparent plate
- Diopter adjustment of eyepieces, D: ±5 (on each eyepiece)
- Focusing: coarse (45 mm, with a rigidity adjustment mechanism) and fine (0.002 mm)
- Backlight: LED
- Brightness adjustment: yes
- Power Source: AC 115-230V/50/60Hz
- Backlight type: reflected light: oblique illuminator – LED 3 W; transmitted light: LED 3 W
- Operating temperature range, °C: 0… 40
- Possibility of connecting other equipment: dark field condenser, simple polarization device, lens attachments (0.5x, 1.5x, 2x)
- User level: for professionals, for experienced
- Assembly and setup difficulty level: difficult
- Optical design: Greenough stereo microscope
- Purpose: for applied work
- Backlight location: combined
- Research method: bright field
- Cover/case/bag included: dustproof cover
