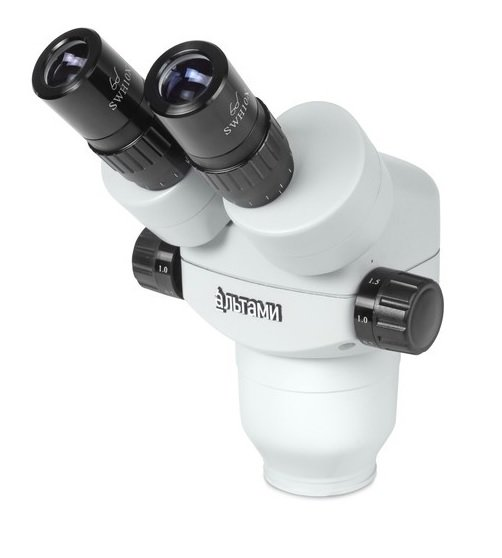

Optical stereomicroscope Altami SM0745T
The Altami SM0745T microscope is a stereoscopic optical device that creates a three-dimensional image of objects in reflected or transmitted light. Areas of application of the microscope: forensics, industry, laboratory research, jewelry, numismatics and other highly specialized areas. The optical system, assembled according to the Greenough scheme, provides a high degree of resolution and a large depth of field. The image quality is suitable for professional sample handling. Thanks to the modular design, the microscope can be equipped with accessories from the Altami range: lighting systems, eyepieces, tripods, object stages and much more. The minimum package includes only a microscope head and a pair of eyepieces. It is convenient to work with the Altami trinocular stereomicroscope, since the load on the eyes is distributed evenly. You can also use a digital camera to display images from the lens on a computer screen, photograph samples, and record research videos.
- Microscope type: stereoscopic/instrumental
- Attachment type: binocular
- Purpose: for applied work
- Magnification, times: 7-45
- Maximum magnification, x: 45
- Interpupillary distance, mm: 52-75
- Additionally: Greenough optical design
- Diopter adjustment of eyepieces, D: ±6 (separate adjustment)
- Backlight: LED
- Illumination location: top
- Research method: bright field
- Eyepiece tilt angle: 45°
- Diopter adjustment: independent, for two eyepieces; adjustment range ±6 diopters
- Bore diameter: 76 mm
- Country: Russia
- Dimensions, mm: 154x182x230
