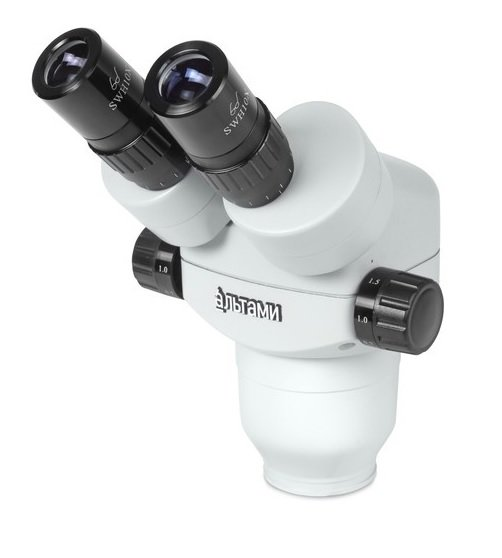

Optical stereomicroscope Altami SM0745
The Altami SM0745 stereoscopic microscope is designed for observing three-dimensional images of objects in reflected or transmitted light. The microscope is widely used in forensic science, laboratory research, and industrial production. It is also suitable for engineering research and soldering of electronic circuit boards. The optical system is assembled according to the Greenough design, therefore providing a large depth of field, which is ideal for careful visual analysis of samples. The Altami SM0745 stereo microscope has a modular design, which means you can choose the components that are most suitable for solving your problems. All of them are purchased separately. The basic package includes only a binocular attachment and a pair of eyepieces. A tripod, a stage, a lighting system - all this is presented in the Altami range of accessories. Since a binocular microscope has two eyepieces, the load on the eyes is evenly distributed and working with the microscope is as convenient as possible. Moreover, when connecting a digital camera (not included) to the microscope, the image can be displayed on the monitor screen. In this case, the researcher receives high-quality enlarged images that can be saved to a computer hard drive.
- Microscope type: stereoscopic/instrumental
- Attachment type: binocular
- Purpose: for applied work
- Magnification, times: 7-45
- Maximum magnification, x: 45
- Interpupillary distance, mm: 52-76
- Additionally: Greenough optical design
- Diopter adjustment of eyepieces, D: ±6 (separate adjustment)
- Backlight: LED
- Illumination location: top
- Research method: bright field
- Eyepiece tilt angle: 45°
- Diopter adjustment: independent, for two eyepieces; adjustment range ±6 diopters
- Bore diameter: 76 mm
- Country: Russia
- Dimensions, mm: 154x182x230
