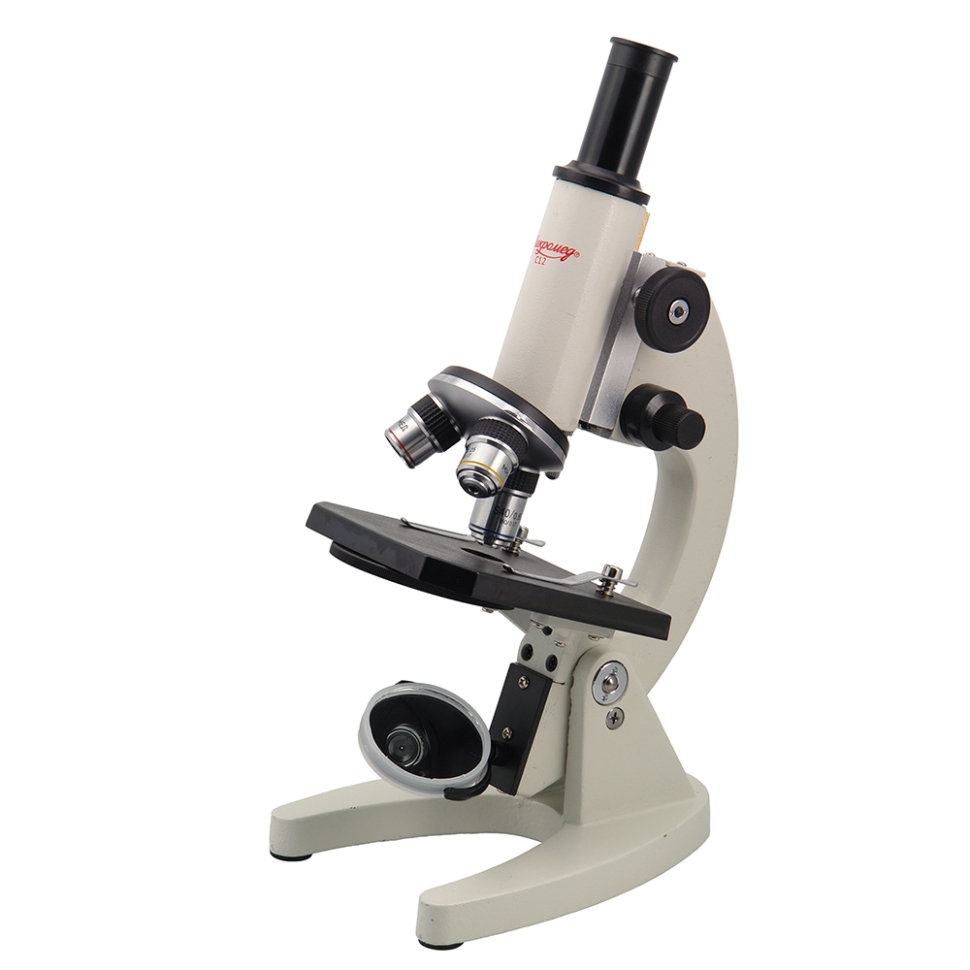

Optical microscope Micromed S-12
The microscope is designed for observing drugs in transmitted light in a bright field. Allows you to study stained and unpainted biological objects in the form of smears and sections. The Micromed S-12 microscope is recommended for use in schools and other secondary educational institutions for educational laboratory work in biology lessons. Achromatic optics, simplicity of design, ease of use and low price make this microscope an indispensable tool for teaching in schools and for home use. The quality of the Micromed S-12 microscope allows it to be used in veterinary laboratories. A special feature of this model is the light source used – a mirror. Thanks to this, the microscope does not depend on the ability to connect to electricity, which is important in schools and in the field. The microscope is designed for a tube length of 160 mm, objectives of the RMS standard, parfocal height of the objectives 33 mm.
- Microscope type: biological
- Purpose: educational
- Magnification, times: 40 - 640
- Optics material: optical glass
- Attachment type: monocular
- Eyepiece tilt angle: 90°
- Eyepiece mounting diameter: 23.2 mm
- Additionally: straight tube, tilted together with the tripod relative to the base
- Eyepieces: 10x/18 mm, 16x/15 mm
- Lenses: achromatic, 4x/0.10, 10x/0.25, 40xs/0.65
- Parfocal height: 33 mm
- Correction for microscope tube length: 160 mm
- Revolving device: for 3 lenses
- Stage: 105x115 mm, with slide clamps
- Aperture: Aperture disk
- Number of holes in the diaphragm disk: 5
- Diaphragm hole diameter: 4, 6, 7, 14, 17 mm
- Focusing: fine, coarse, separate control knobs
- Research method: bright field
- Backlight type: mirror
- Mirror diameter: 50 mm
- Illumination location: bottom
- Case material: metal
- Country of origin: China
- Manufacturer's warranty: 12 months
- Package size: 25x20x36.5 cm
- Package weight: 2.7 kg
- Microscope weight: 2.25 kg
