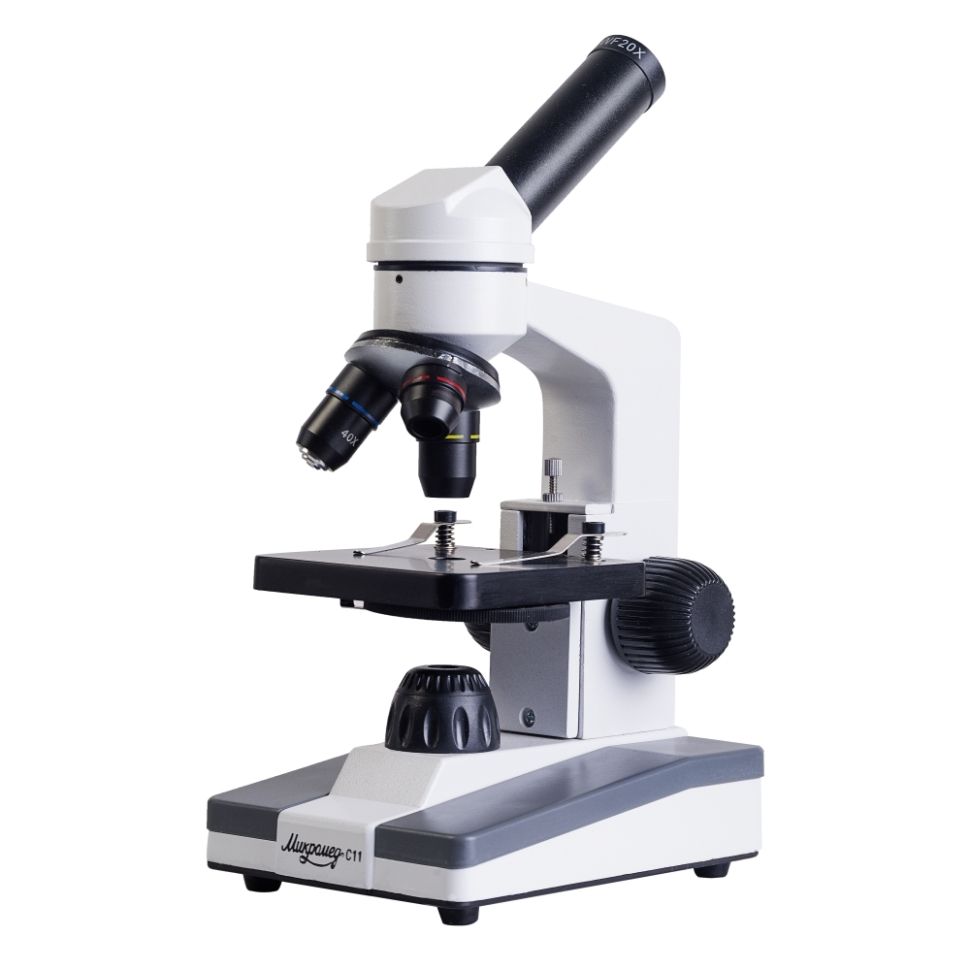

Optical microscope Micromed S-11
The microscope is designed for observing drugs in transmitted light in a bright field. It allows you to study stained and unstained biological objects in the form of smears and sections. The Micromed S-11 microscope is recommended for use in schools and other secondary educational institutions for educational laboratory work in biology lessons. The microscope is equipped with a built-in illuminator that runs on batteries, which allows it to be used in school classrooms and on-site laboratory sessions. Also, the design of the microscope illuminator provides for the ability to operate from a 220 V network via an adapter, which is not included in the standard package and is available upon additional order. Micromed S-11 provides the ability to display images in real time on a PC screen using a video eyepiece (purchased separately) for quantitative analysis of the structures of the objects under study. The video eyepiece is installed in the tube of the visual attachment instead of the eyepiece. To do this, first unscrew the locking screw and release the eyepiece. The video eyepiece and software for viewing and working with images are supplied separately. The Micromed S-11 microscope is widely used in various educational institutions as modern educational equipment.
- Microscope type: biological
- Purpose: children's, educational
- Magnification, times: 80 - 800
- Optics material: optical glass
- Attachment type: monocular
- Rotation of the eyepiece: yes, 360°
- Eyepiece tilt angle: 45°
- Eyepiece mounting diameter: 23.2 mm
- Eyepieces: 20x/11 mm
- Lenses: 4x/0.10, 10x/0.25, 40xs/0.65
- Parfocal height: 33 mm
- Correction for microscope tube length: 160 mm
- Revolving device: for 3 lenses
- Stage: 95x95 mm, with two clamps
- Condenser: single lens, non-removable
- Aperture: Aperture disk
- Number of holes in the diaphragm disk: 6
- Focus: Coarse
- Research method: bright field
- Backlight type: LED
- Illumination location: bottom
- Brightness adjustment: no
- AC adapter included: no
- Batteries included: yes
- Backlight power: 3 AA batteries, 5 V AC adapter
- Case included: dust cover
- Case material: metal
- Country of origin: China
- Manufacturer's warranty: 12 months
- Package size: 115 × 155 × 280 mm
- Package weight: 1.4 kg
