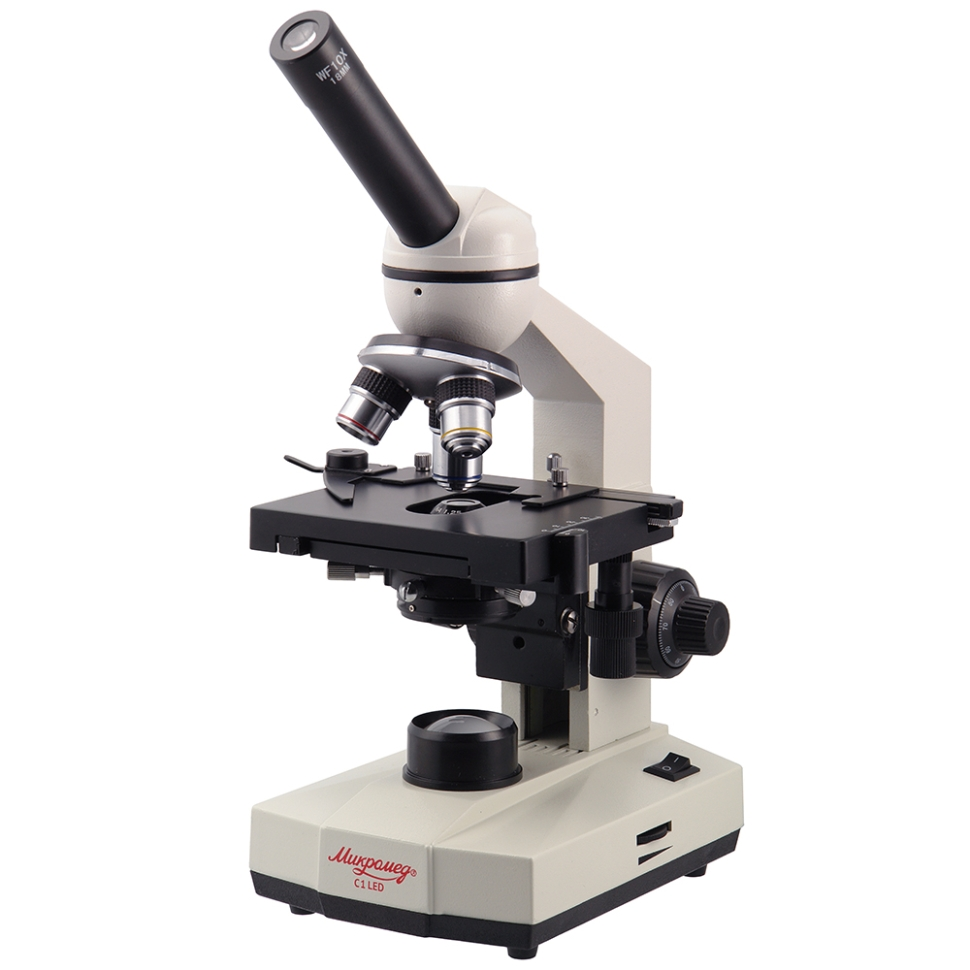

Optical microscope Mikromed S-1 (LED)
The microscope is intended for observation and morphological studies of preparations in transmitted light using the bright field method. The microscope can be used in educational laboratory work in various fields of biology and medicine, for diagnostic studies in clinics and hospitals, and in veterinary medicine. Using a microscope, you can study stained and unstained biological objects in the form of smears and sections. The design of the microscope's visual attachment provides for the possibility of working together with a camera (video eyepiece). Combining achromatic optics and a low price, the biological microscope Mikromed S-1 (LED) is indispensable both for training purposes in higher medical and biological institutions, and for simple routine work in the laboratory. Widely used in veterinary medicine. The microscope is designed for a tube length of 160 mm, objectives of the RMS standard, parfocal height of the objectives 33 mm.
- Microscope type: biological
- Purpose: educational
- Magnification, times: 40 - 640
- Optics material: optical glass
- Attachment type: monocular
- Rotation of the eyepiece: yes, 360°
- Eyepiece tilt angle: 45°
- Eyepieces: 10x/18 mm; 16x/15 mm
- Lenses: achromatic, 4x/0.10, 10x/0.25, 40xs/0.65
- Parfocal height: 33 mm
- Correction for microscope tube length: 160 mm
- Correction for cover glass thickness: 0.17 mm
- Revolving device: for 3 lenses
- Subject table: 110x125 mm, with preparation guide
- Range of movement of the drug, mm: 67 × 22
- Condenser: Abbe, centered, height adjustable, NA 1.25
- Aperture: iris
- Focusing: coaxial mechanism, coarse and fine
- Backlight type: LED
- Illumination location: bottom
- Brightness adjustment: yes
- Backlight power: 3 AA batteries, 3 NiMH batteries, 5 V AC adapter
- Network adapter included: yes
- Battery included: yes
- Batteries included: no
- Research method: bright field
- Case included: dust cover
- Light filters included: blue
- Case material: metal
- Manufacturer's warranty: 1 year
- Overall dimensions of the microscope: 170x210x350 mm
- Package size: 22x26x39 cm
- Microscope weight: 3.5 kg
