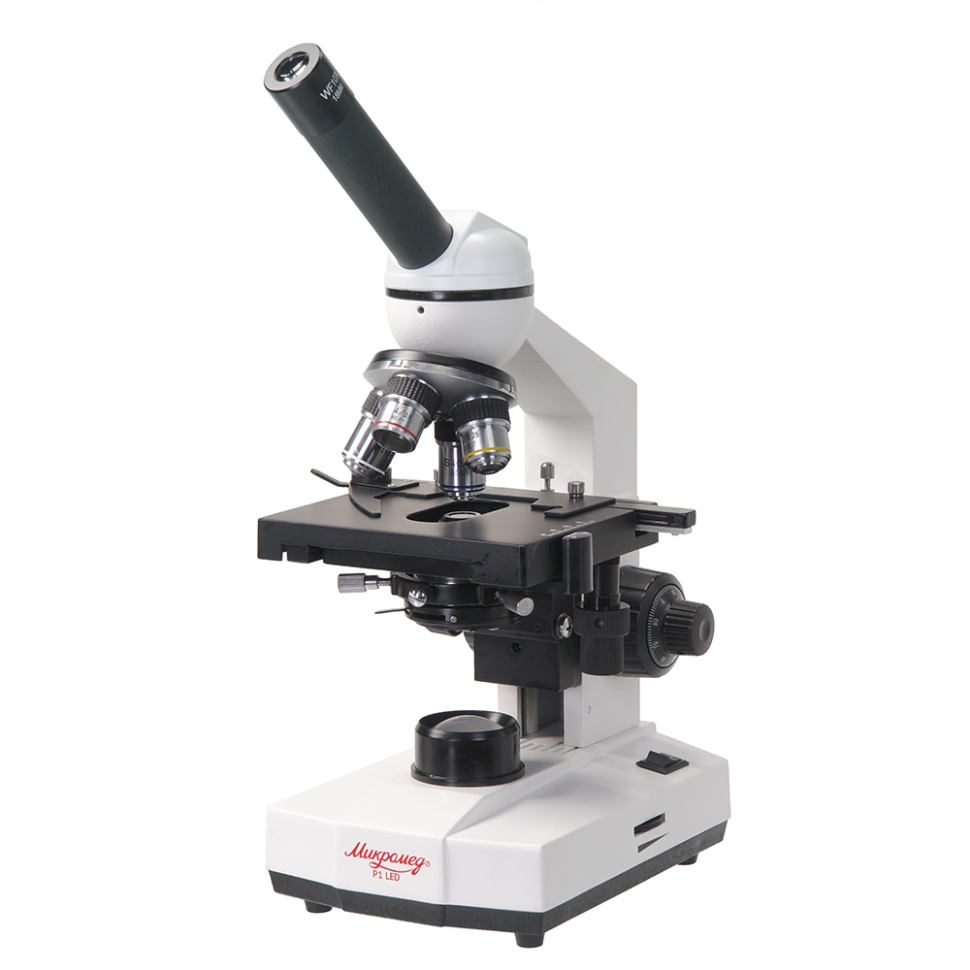

Optical microscope Mikromed R-1 LED
The microscope is intended for observation and morphological studies of preparations in transmitted light using the bright field method. Biological microscope Microhoney R-1 (LED) can be used for educational and laboratory work in various fields of medicine to solve a wide range of problems, in veterinary medicine. Using a microscope, you can study stained and unstained biological objects in the form of smears and sections. The design of the visual attachment allows for the possibility of working together with a camera (video eyepiece, sold separately). Combining achromatic optics and a low price, the biological microscope Micromed R-1 (LED) is indispensable both for training purposes in higher medical and biological institutions, and for simple routine work in the laboratory. Widely used in veterinary medicine. The microscope is designed for a tube length of 160 mm, objectives of the RMS standard, parfocal height of the objectives 33 mm.
- Microscope type: biological
- Purpose: educational, routine
- Magnification, times: 40 - 1600
- Optics material: optical glass
- Attachment type: monocular
- Rotation of the eyepiece: yes, 360°
- Eyepiece tilt angle: 45°
- Eyepiece mounting diameter: 23.2 mm
- Eyepieces: 10x/18 mm; 10x/15 mm
- Lenses: 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25 (oil)
- Parfocal height: 33 mm
- Correction for microscope tube length: 160 mm
- Correction for cover glass thickness: 0.17 mm
- Revolving device: for 4 lenses
- Subject table: 110x125 mm, two-axis with coaxial handles
- Range of movement of the drug, mm: 22 × 67
- Condenser: Abbe, centered, height adjustable, NA 1.25
- Aperture: iris
- Focusing: coarse and fine, coaxial mechanism
- Case material: metal
- Backlight type: LED
- LED power: 0.75W
- Color temperature: 6000–7000 K
- Illumination location: bottom
- Brightness adjustment: yes
- Backlight power: 3 AA batteries, 3 NiMH batteries, 5 V AC adapter
- Battery charging time: 2–3 hours
- Research method: bright field
- Network adapter included: yes
- Battery included: yes
- Batteries included: no
- Overall dimensions of the microscope: 170x210x350 mm
- Package size: 21 × 43 × 30 cm
- Package weight: 3.5 kg
