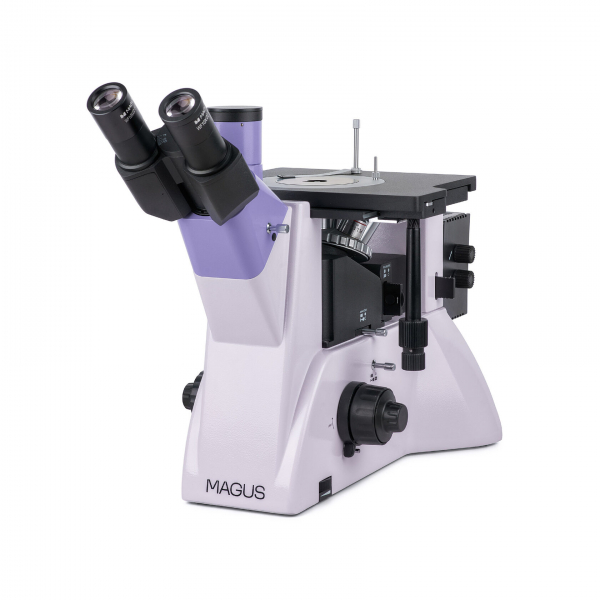

Optical microscope MAGUS Metal V700 DIC
Inverted metallographic microscope MAGUS Metal V700 DIC Magnification: 50-500x. Trinocular visual head, planachromatic objectives, 50 W halogen reflected light illuminator The microscope is designed to study the microstructure of metals and alloys, semiconductor materials and other opaque objects. The inverted design of the microscope does not limit the geometry of the research object, but only limits its weight to 2 kg. One face of the sample is subjected to special processing and the sample is placed on the table with this surface down. The microscope implements three methods of contrasting in reflected light: bright field, simple polarization and differential interference contrast. The bright field gives a reliable magnified image of the object. Simple polarization removes glare from metal surfaces and highlights polymers and other foreign inclusions. Differential interference contrast colors changes in the height of an object and thus reveals the topography of the sample. The object of study appears in relief. Two independent visualization channels allow for simultaneous connection of a monitor and camera. The microscope is used at enterprises of the metallurgical, mechanical engineering, aerospace, nuclear and energy industries, in research laboratories and technical universities.
- Type: light/optical, metallographic
- Attachment type: trinocular
- Nozzle: Siedentopf with the ability to rotate 180°
- Eyepiece tilt angle: 45°
- Magnification range, x: 50 - 500
- Magnification, x (optional): 50–1000/1250/1500/2000/2500
- Diameter of the eyepiece tube, mm: 30
- Eyepieces: 10x/22 mm, distance pupil 10 mm; 10x/22 mm with scale (*optional: 10x/22 mm with crosshair; 12.5x/14 mm; 15x/15 mm; 20x/12 mm; 25x/9 mm)
- Lenses: plan achromatic, infinity corrected: PL L5x/0.12, PL L10x/0.25, PL L20x/0.40, PL L50x/0.70; parfocal height 45 mm (*optional: PL L40x/0.60, PL L60x/0.70, PL L80x/0.80, PL L100x/0.85 (dry))
- Revolver device: for 5 lenses, with DIC slot
- Working distance, mm: 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x)
- Interpupillary distance, mm: 48 - 75
- Subject table, mm: 242x200
- Range of movement of the object table, mm: 30/30
- Characteristics of the object stage: two-axis mechanical, round rotary inserts Ø130 mm with holes Ø10 mm, Ø20 mm and Ø30 mm
- Aperture: built-in aperture and field
- Focusing: coaxial, coarse (with locking and rigidity adjustment mechanisms) and fine (0.002 mm)
- Backlight: halogen
- Power supply: 220±22V/50Hz
- Backlight type: 12 V/50 W, G6 base
- Light filters: green, blue, matte, yellow
- Operating temperature range, °C: 5...+35
- Additionally: removable analyzer and polarizer, DIC slider for 5x, 10x and 20x lenses
- User level: for experienced, for professionals
- Assembly and setup difficulty level: difficult
- Purpose: metallographic
- Illumination location: bottom
- Research method: bright field, polarization, DIC
- Cover/case/bag included: dustproof cover
- Package size (LxWxH): 35x68x49 cm
- Package weight: 15.96 kg
