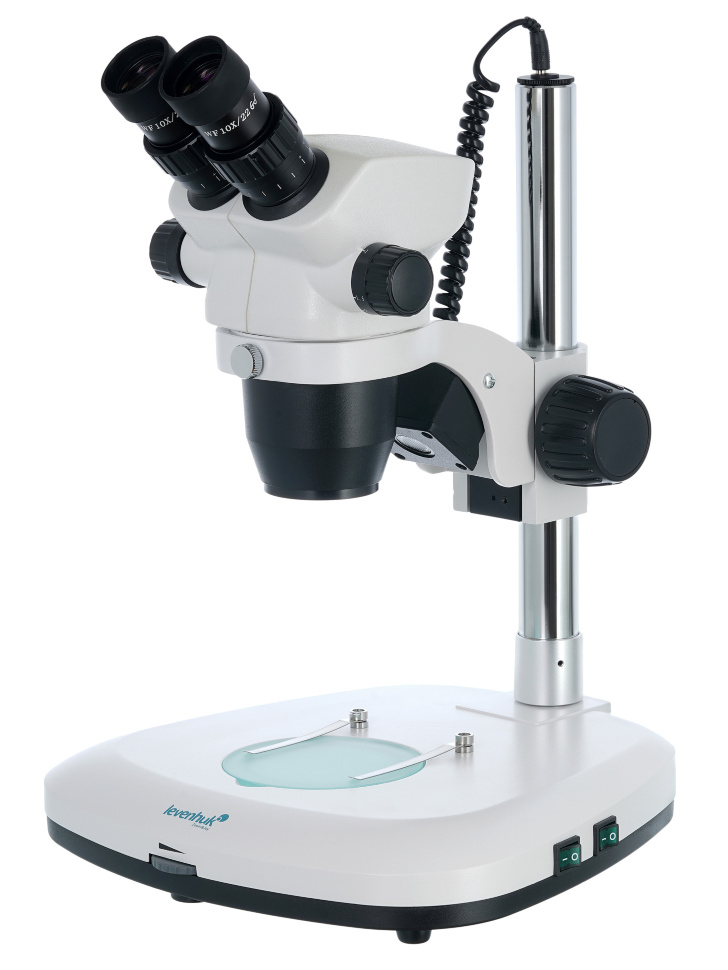

Levenhuk ZOOM 1B Optical Microscope
Levenhuk ZOOM 1B Binocular Stereoscopic Microscope can be used to study large samples of any degree of transparency. It allows the use of both transmitted and reflected light in bright-field observations. The microscope is well suited for the professional work of a watchmaker, jeweler, geologist, zoologist, botanist, philatelist, and numismatist. Thanks to its ease of operation, the microscope can also be used for amateur research. The binocular attachment allows you to observe with both eyes at once - this reduces eye strain and makes long-term work with samples more convenient. The visual part is tilted; the entire nozzle can be rotated 360°. The package includes wide-field eyepieces with 10x magnification, which provide a good viewing angle. The lens is pancratic, which means that the magnification of the microscope can be changed smoothly and not stepwise. The total magnification of the optics ranges from 7 to 45 times. There is a coarse sharpness setting. The combined illumination consists of two LEDs located above and below the object stage. The brightness of the backlight can be adjusted; AC power is used to power the LEDs. The head, tripod and base of the microscope are made of durable metal, so Levenhuk ZOOM 1B is a reliable and durable device.
- Microscope type: stereoscopic
- Purpose: for applied work
- Magnification, times: 7 - 45
- Optics material: optical glass
- Attachment type: binocular
- Rotation of the eyepiece: yes, 360°
- Eyepiece tilt angle: 45°
- Diopter adjustment of eyepieces: ±5 diopters
- Interpupillary distance, mm: 48 - 75
- Mounting diameter of eyepieces: 30 mm
- Eyepieces: WF10x/22 mm – 2 pcs.
- Lenses: pancratic, 0.7–4.5x
- Working distance, mm: 235
- Backlight type: LED
- Illumination location: bottom, top
- Brightness adjustment: yes
- Case material: metal
- Backlight power: mains 220 V/50 Hz
- Package weight: 5.62 kg
- Package size: 45 × 34.5 × 37 mm
