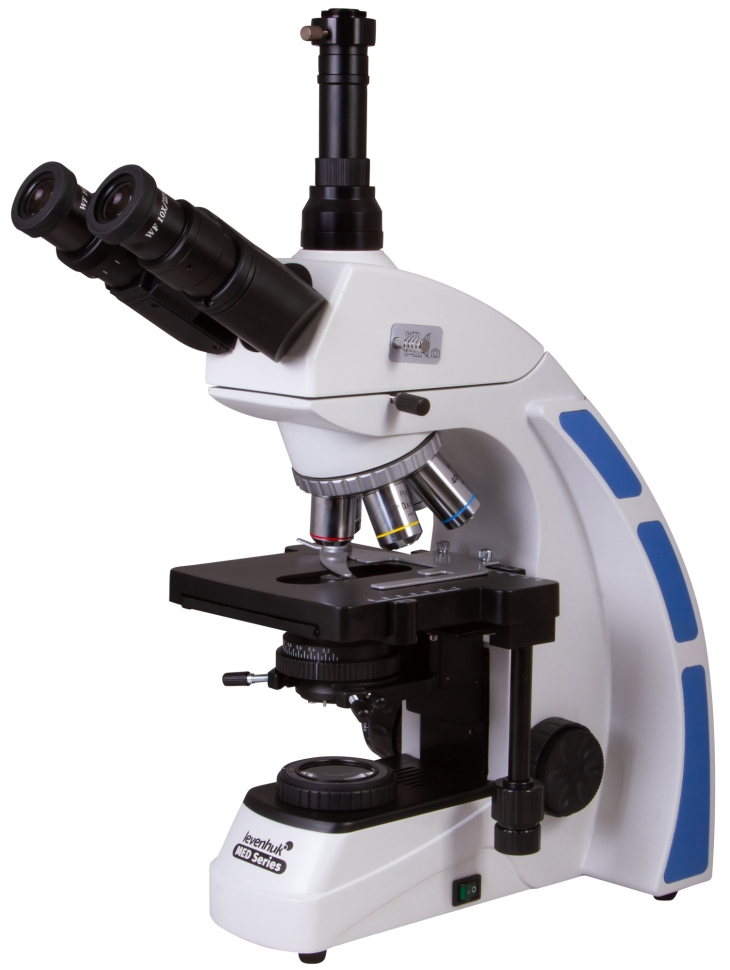

Levenhuk MED 40T Optical Microscope
Levenhuk MED 40T microscope is a professional device for studying drugs with different optical densities (both transparent and opaque) using the bright field method. This microscope will be equally useful in a medical institution, a scientific laboratory, or a university. High-end lenses corrected to infinity Being a professional-class device, a laboratory microscope has an optics system, the infinite type of correction of which makes it possible to install additional components, for example, polarizers or illuminators, in the space between the lens and the tube. This feature allows you to configure the microscope to perform a specific research task. Ergonomic design and convenient operation The viewing part of the Levenhuk MED 40T biological microscope is tilted by 30° to reduce the strain on the neck and shoulders during long-term experiments. A special anti-fungal coating of optical parts allows the microscope to be used safely for biological experiments. The object table is equipped with a drug guide for convenient and quick placement of the test drug under the lens. You can also add additional filters to the dedicated filter holder to help improve contrast and detail. Diopter adjustment of the eyepieces makes it possible to compensate for possible differences in vision between the user's eyes and ensures comfortable examination. Optionally, you can connect a digital camera, purchased separately, and use the device to take pictures.
- Microscope type: biological
- Attachment type: trinocular
- Optics material: optical glass with anti-fungal coating
- Nozzle: 360° rotatable, with light divider
- Eyepiece tilt angle: 30°
- Magnification, times: 40–1000
- Diameter of the eyepiece tube, mm: 30 mm (binocular attachment); 23.2 mm (third vertical tube)
- Eyepieces: wide-field with diopter adjustment WF 10x/22 mm (2 pcs.)
- Lenses: planachromatic, infinity corrected: 4x, 10x, 40xs, 60xs, 100xs (oil)
- Revolving device: for 5 lenses
- Interpupillary distance, mm: 48–75
- Subject table, mm: mechanical two-layer, 180x150 mm, with preparation guide
- Range of movement of the object table, mm: 75/50
- Diopter adjustment of eyepieces, D: ±5
- Condenser: Abbe N.A. 1.25 with iris diaphragm and filter holder
- Aperture: iris
- Focusing: coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion mechanism
- Backlight: LED
- Brightness adjustment: yes
- Backlight type: 5W AC 85-230V
- Light filters: blue, green, yellow
- Additionally: collector, Koehler lighting
- Purpose: laboratory/medical
- Illumination location: bottom
- Research method: bright field
- Case: metal
- Power supply: 100-240V
