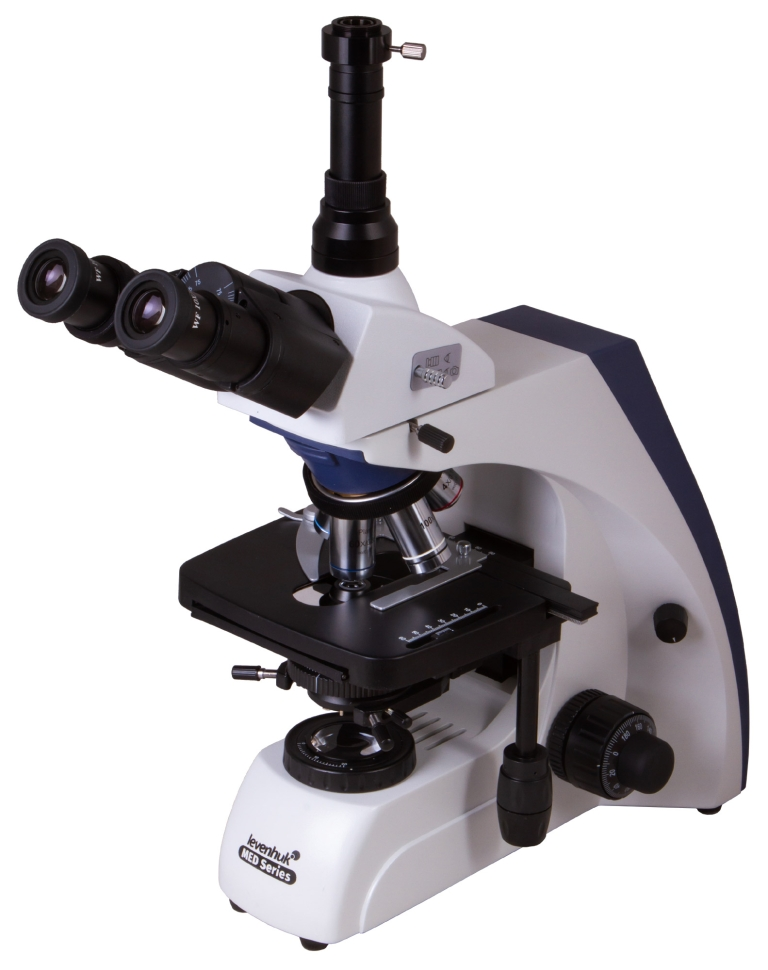

Levenhuk MED 35T Optical Microscope
Levenhuk MED 35T microscope is equipped with a plan achromatic optical system for bright-field observation. The revolving mechanism can simultaneously install 5 lenses with magnification: 4x, 10x, 40xs, 60xs, 100xs. This microscope will be equally useful in a medical facility, in a scientific laboratory, and in a classroom. Infinity corrected optical system Planachromatic lenses with achromatic correction eliminate image curvature across the entire field, which ensures high detail of the entire test specimen. Such lenses are usually used for photo and video recording, for creating archives and documentation in medicine and the biological field. The infinite type of correction of the optics of the Levenhuk MED 35T biological microscope makes it possible to install additional components, for example, polarizers or illuminators, in the space between the lens and the tube. This feature allows you to configure the microscope to perform a specific research task. The diopter adjustment function of the eyepieces allows you to compensate for possible differences in vision between the user's eyes, thereby ensuring a comfortable examination. Ergonomic design and convenient operation Tilt of the observation part of the laboratory microscope by 30° allows you to reduce the load on the neck and shoulders during long-term experiments. A special anti-fungal coating of optical parts ensures equipment-safe use of the microscope for biological experiments. For quick and reliable placement of the drug under study under the lens, the stage is equipped with a drug guide. In addition, you can add special filters to the holder that will help change the contrast and improve detail. You can also connect an optional digital camera and use the device to take pictures, archive them, and document them.
- Microscope type: biological
- Attachment type: trinocular
- Optics material: optical glass with anti-fungal coating
- Nozzle: 360° rotatable, with light divider
- Eyepiece tilt angle: 30°
- Magnification, times: 40–1000
- Diameter of the eyepiece tube, mm: 30 mm (binocular attachment); 23.2 mm (third vertical tube)
- Eyepieces: wide-field with diopter adjustment WF 10x/22 mm (2 pcs.)
- Lenses: planachromatic, infinity corrected: 4x, 10x, 40xs, 60xs, 100xs (oil)
- Revolving device: for 5 lenses
- Interpupillary distance, mm: 48–75
- Subject table, mm: mechanical two-layer, 180x160 mm, with preparation guide
- Range of movement of the object table, mm: 80/50
- Diopter adjustment of eyepieces, D: ±5
- Condenser: Abbe N.A. 1.25 with iris diaphragm and filter holder
- Aperture: iris
- Focusing: coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion mechanism
- Backlight: halogen
- Brightness adjustment: yes
- Backlight type: 12V/30W, AC 85-230V
- Light filters: blue, green, yellow
- Additionally: collector, Koehler lighting
- Purpose: laboratory/medical
- Illumination location: bottom
- Research method: bright field
- Case: metal
- Power supply: 100-240V
