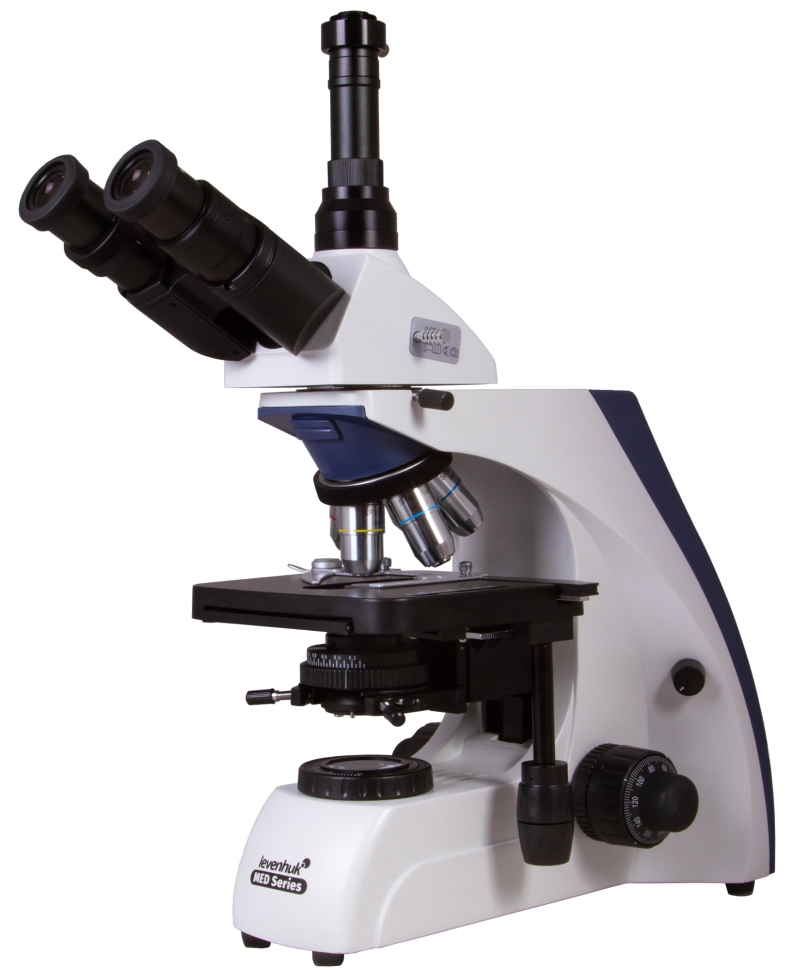

Levenhuk MED 30T Optical Microscope
Levenhuk MED 30T microscope is a laboratory-grade device with a bright-field research method, magnifying the image up to 1000 times without loss of quality. Such a microscope allows, without additional equipment, to study preparations with different optical densities (both transparent and opaque) in high detail. This device will be an equally useful acquisition for both a scientific institute and a medical institution. Optics with infinite correction type Representing professional-class equipment, Prior has high-quality infinity-corrected optics, which makes it possible to install additional components in the space between the lens and the tube that can increase functionality, such as polarizers and illuminators. This feature allows you to customize the Levenhuk MED 30T biological microscope to solve a specific research problem. Ergonomic design and convenient operation The tilt of the observation part of this laboratory microscope by 30° allows you to conduct research in a comfortable position without spoiling your posture. A special antifungal coating protects the equipment from the effects of microorganisms and allows microbiological experiments to be carried out safely for the microscope. For quick and reliable placement of the drug under study under the lens, the stage is equipped with a drug guide. In addition, you can add special filters to the holder that will help change the contrast and improve detail. You can save your work on a removable microSD card with a capacity of up to 32 GB, which allows you to create an extensive data library.
- Microscope type: biological
- Attachment type: trinocular
- Optics material: optical glass with anti-fungal coating
- Nozzle: 360° rotatable, with light divider
- Eyepiece tilt angle: 30°
- Magnification, times: 40–1000
- Diameter of the eyepiece tube, mm: 30 mm (binocular attachment); 23.2 mm (third vertical tube)
- Eyepieces: wide-field with diopter adjustment WF 10x/22 mm (2 pcs.)
- Lenses: Semi-planachromatic, infinity corrected: 4x, 10x, 40xs, 60xs, 100xs (oil)
- Revolving device: for 5 lenses
- Interpupillary distance, mm: 48–75
- Subject table, mm: mechanical two-layer, 180x160 mm, with preparation guide
- Range of movement of the object table, mm: 80/50
- Diopter adjustment of eyepieces, D: ±5
- Condenser: Abbe N.A. 1.25 with iris diaphragm and filter holder
- Aperture: iris
- Focusing: coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion mechanism
- Backlight: LED
- Brightness adjustment: yes
- Backlight type: 3 W, with additional lens
- Light filters: blue, green, yellow
- Additionally: collector, Koehler lighting
- Purpose: laboratory/medical
- Illumination location: bottom
- Research method: bright field
- Case: metal
- Power supply: 100-240V
