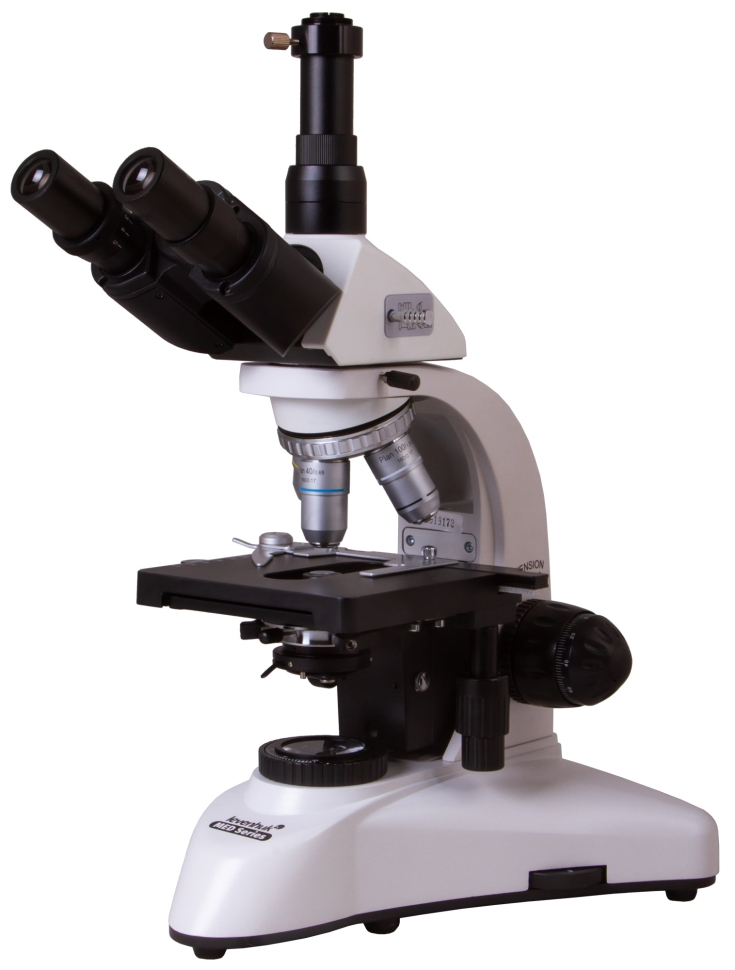

Levenhuk MED 25T Optical Microscope
Levenhuk MED 25T microscope is equipped with a semi-planachromatic optical system for bright-field and dark-field observation. The revolving mechanism can simultaneously install 4 lenses with magnification: 4x, 10x, 40xs, 100xs. This microscope will be equally useful in a medical facility, in a scientific laboratory, and in a classroom. Infinity corrected optical system The infinite type of optical correction makes it possible to install additional components, for example, polarizers or illuminators, in the space between the lens and the tube. This feature allows you to configure the microscope to perform a specific research task. The diopter adjustment function of the eyepieces allows you to compensate for possible differences in vision between the user's eyes, thereby ensuring a comfortable examination. Optionally, you can connect a digital camera, purchased additionally, to the Levenhuk MED 25T biological microscope and use the device for taking pictures, archiving them and documenting them. Ergonomic design and convenient operation The viewing part of this laboratory microscope is tilted by 30° to reduce the strain on the neck and shoulders during long-term experiments. A special anti-fungal coating of optical parts allows the microscope to be used safely for biological experiments. For quick and reliable placement of the drug under study under the lens, the stage is equipped with a drug guide. In addition, you can add special filters to the holder that will help change the contrast and improve detail.
- Microscope type: biological
- Attachment type: trinocular
- Optics material: optical glass with anti-fungal coating
- Nozzle: 360° rotatable, with light divider
- Eyepiece tilt angle: 30°
- Magnification, times: 40–1000
- Diameter of the eyepiece tube, mm: 30 mm (binocular attachment); 23.2 mm (third vertical tube)
- Eyepieces: wide-field with diopter adjustment WF 10x/18 mm (2 pcs.)
- Lenses: planachromatic 4x, 10x, 40xs, 100xs (oil)
- Revolving device: for 4 lenses
- Interpupillary distance, mm: 55–75
- Subject table, mm: mechanical two-layer, 140x140 mm, with preparation guide
- Range of movement of the object table, mm: 75/50
- Diopter adjustment of eyepieces, D: ±5
- Condenser: Abbe N.A. 1.25 with iris diaphragm and filter holder
- Aperture: iris
- Focusing: coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion mechanism
- Backlight: halogen
- Brightness adjustment: yes
- Backlight type: 6V/20W, AC 85-230V
- Light filters: blue, green, yellow
- Additionally: collector, Koehler illumination, dark field condenser (oil)
- Purpose: laboratory/medical
- Illumination location: bottom
- Research method: dark field, bright field
- Case: metal
- Power supply: 100-240V
