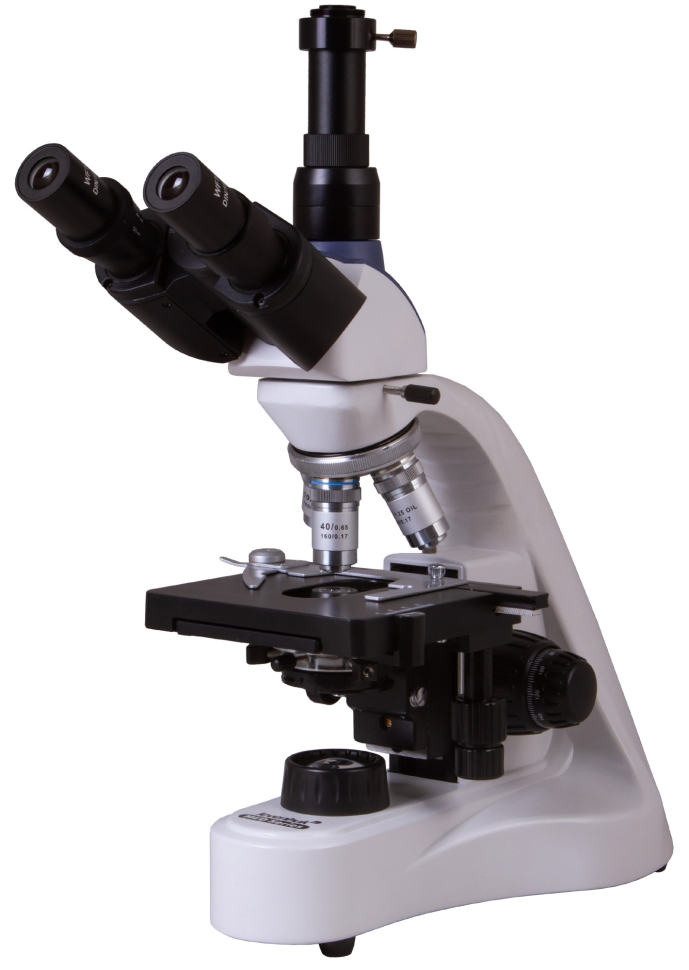

Levenhuk MED 10T Optical Microscope
Laboratory microscope (trinocular achromat) Levenhuk MED 10T with achromatic optics and a trinocular attachment is designed specifically for professional microresearch. It can be used in biochemistry, medicine, classical biology and other fields of science. The microscope allows you to study samples at magnifications from 40 to 1000 times. It will be an excellent addition to the arsenal of optical equipment of a university department, research laboratory or medical office. Thanks to the trinocular attachment, you can simultaneously conduct visual observations with both eyes and display the image from the lens on an external screen using a digital camera (camera not included in the package). The nozzle can be rotated around its axis by 360°, the visual block is deflected by 30°. This design of the nozzle is convenient if the sample must be observed by several researchers. Achromatic optics with anti-fungal coating allow even complex structures to be examined in detail. Wide-field eyepieces provide 10x magnification and have diopter adjustment. A good viewing angle makes it possible to study extended samples. Four lenses are installed in the revolving device. They provide different magnifications; high magnification lenses have spring-loaded frames to protect them from accidental damage. When making observations, you can use oil immersion (a 100x objective is used). The sharpness is adjusted by rotating the coarse and fine focusing knobs. The two-coordinate stage is equipped with a preparation guide, with the help of which the samples are mounted under the microscope lens. Under the table there is an Abbe condenser with an iris diaphragm. You can install light filters in a special holder to increase the contrast of the transmitted image. Under the condenser there is a bright LED backlight, which is powered by AC power. The brightness of the backlight can be adjusted. Levenhuk MED 10T microscope is a trinocular achromat for a research or medical laboratory, which is suitable for carrying out complex observations in a bright field.
- Microscope type: biological
- Purpose: laboratory, medical
- Magnification, times: 40 - 1000
- Optics material: optical glass with anti-fungal coating
- Attachment type: trinocular
- Rotation of the eyepiece: yes, 360°
- Eyepiece tilt angle: 30°
- Diopter adjustment of eyepieces: ±5 diopters
- Interpupillary distance, mm: 48 - 75
- Mounting diameter of eyepieces: 30 mm
- Eyepieces: wide field 10x/18 mm
- Lenses: achromatic, 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25 (oil)
- Correction for microscope tube length: 160 mm
- Correction for cover glass thickness: 0.17 mm
- Revolving device: for 4 lenses
- Subject table: 125x130 mm, mechanical two-axis, with specimen guide and coaxially located control handles
- Range of movement of the drug, mm: 70 × 50
- Condenser: Abbe, centered, height adjustable, with filter holder, largest numerical aperture: 1.25
- Aperture: aperture
- Focusing: fine, coarse, coaxially located control knobs, with a height limiter for the table movement
- Fine focusing step, mm: 0.002
- Backlight type: LED
- LED power: 5W
- Illumination location: bottom
- Brightness adjustment: yes
- Backlight power: mains 220 V/50 Hz
- Research method: bright field
- Light filters included: blue, green, yellow
- Country of origin: China
- Manufacturer's Warranty: Lifetime
- Case material: metal
- Package size: 47.5 × 38.5 × 24 cm
- Package weight: 5.44 kg
