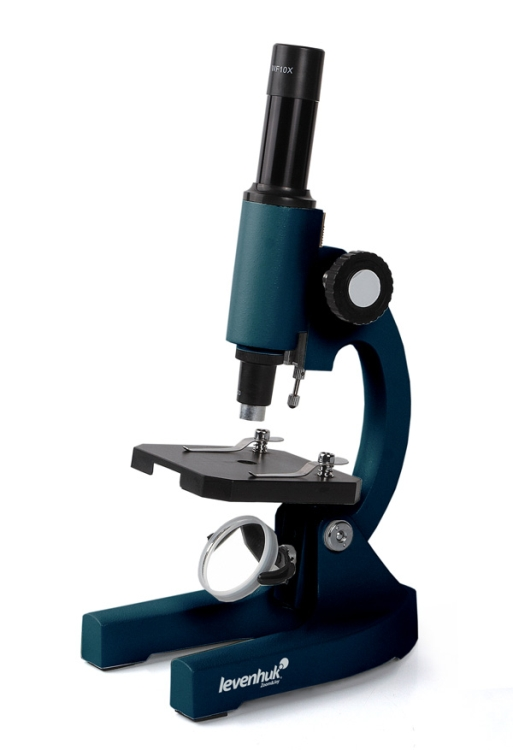

Levenhuk 3S NG Optical Microscope
The Levenhuk 3S NG Biological Microscope for Beginners will allow you to start observing immediately after you take it out of the box. This microscope with a magnification of 200x is designed for studying transparent microspecimens in transmitted light. It is perfect for novice researchers and will be a wonderful gift for an inquisitive teenager. For ease of operation, the design of the microscope provides for the possibility of tilting the optical tube together with the stage and the microspecimen installed on it. The microscope has an achromatic lens, the use of which has significantly reduced the level of chromatic aberrations and ensured more correct color rendition. To illuminate microslides, a concave mirror is used, which concentrates the light. A disk with diaphragms is installed between the mirror and the microslide, which regulates the amount of light, which allows you to select optimal lighting conditions for each object. The microscope is equipped with a stage measuring 90x100 mm with holders for microspecimens. Focusing is accomplished by moving the microscope tube up or down, and the large power reserve of the focusing mechanism in most cases makes it possible to compensate for the observer's visual defects. The microscope body does not contain plastic parts, it is made entirely of metal and has a massive base that prevents the device from accidentally tipping over.
- Microscope type: biological
- Attachment type: monocular
- Optics material: optical glass
- Magnification, times: 200
- Eyepiece tube diameter, mm: 23.2
- Eyepieces: H 12.5x
- Lenses: 16x (achromatic)
- Subject table, mm: 100x90, with drug holders
- Diaphragm: disk
- Focus: coarse, 20 mm
- Case: metal
- Backlight: mirror
- Purpose: school/educational, children's
- Illumination location: bottom
- Research method: bright field
- Experiment kit included: yes
