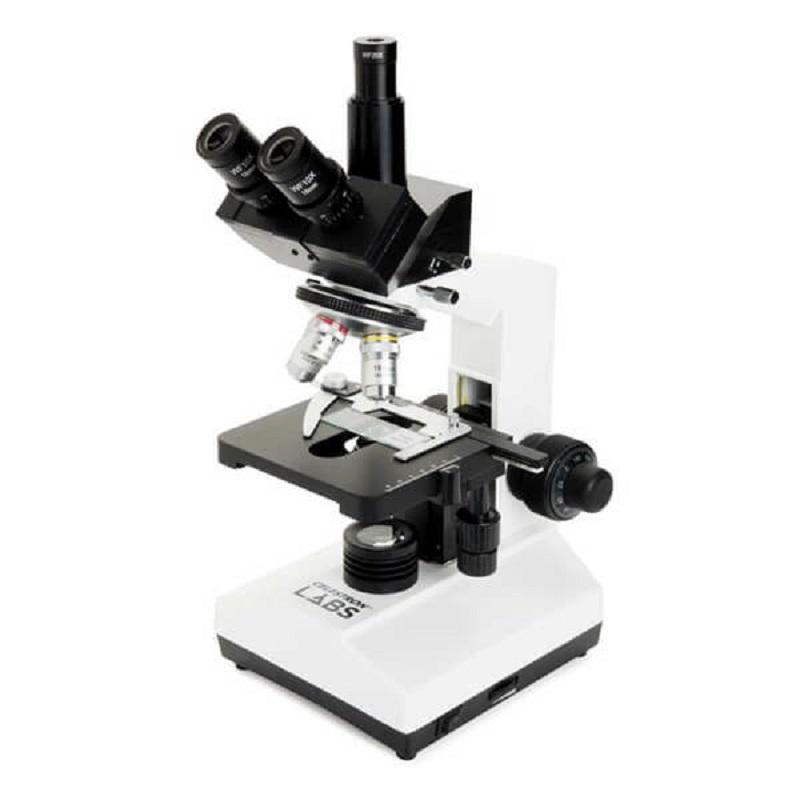

Optical microscope Celestron LABS CB2000C, trinocular
The Celestron LABS CB2000C trinocular microscope is a powerful optical instrument for studying biological samples. It is perfect for a teaching laboratory at a university and for independent research. The microscope is equipped with a third eyepiece tube for installing a special camera or an additional eyepiece. Using a digital camera (not included), you can display images on the screen in the classroom or take photographs and videos of research. The package includes 2 pairs of wide-angle eyepieces with a magnification of 10x and 20x. The microscope is equipped with four achromatic objectives - 4x, 10x, 40x and 100x (for oil immersion). This set of eyepieces and lenses allows you to obtain magnifications from 40 to 2000 times. All optical elements are made of high-quality optical glass and are fully coated. The eyepiece attachment is located at an angle of 45° - this is very convenient for long observations. The interpupillary distance is adjustable from 48 to 75 mm. The revolving device is designed for 4 lenses. It is possible to correct each eyepiece within the range from -5 to 5 diopters. An object table with a vernier scale and a preparation guide allows you to quickly find the desired sample fragment. The microscope has coaxial coarse and fine focusing knobs. The halogen illumination is located under the object stage; the lamp is powered from the mains via an adapter. The brightness of the backlight is adjustable. The microscope is equipped with an Abbe condenser and an iris diaphragm. The device has a durable and stable metal body. Observations can begin immediately after unpacking the microscope: the delivery set includes 3 light filters, a bottle with immersion oil and 10 ready-made microspecimens.
- Microscope type: biological
- Microscope attachment: binocular
- Research method: bright field
- Purpose: medical/laboratory
- Optics material: optical glass
- Microscope magnification, x: 40 - 2000
- Microscope head tilt angle: 45°
- Interpupillary distance, mm: 48 - 75
- Eyepieces: WF10x and WF20x
- Lenses: 4x (4/0.10), 10x(10/0.25), 40x (40/0.65) and 100x OIL(100/1.25)
- Turret: for 4 lenses
- Range of movement of the object table, mm: 30 - 70
- Condenser: Abbe
- Aperture: Iris diaphragm
- Focusing: Coaxial coarse and fine focusing knobs
- Backlight type: halogen
- Illumination location: bottom
- Light filters: Blue, Yellow, Red
- Case material: metal
- Subject table, mm: 140
- Power source: AC adapter
- Weight, kg: 5.53
- Package dimensions, cm: 25 x 19 x 36
