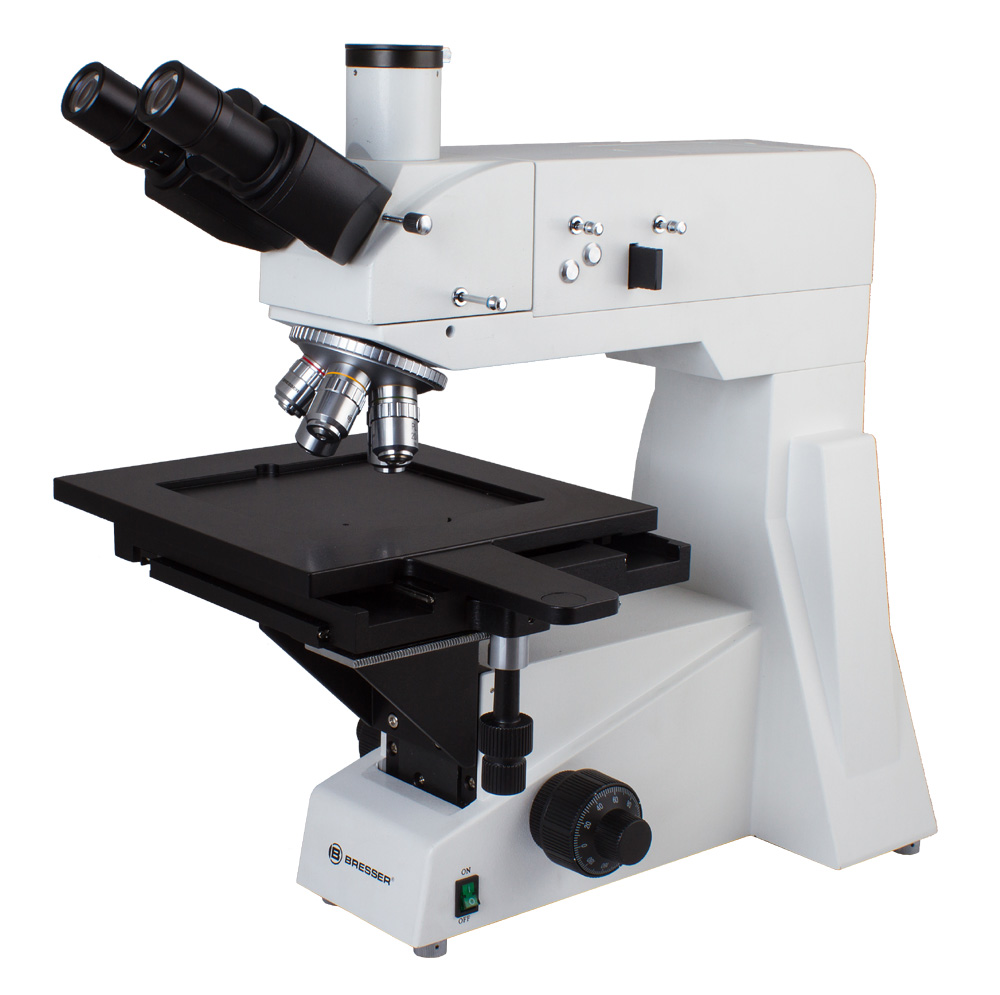

Optical microscope Bresser Science MTL-201
The metallographic (metallurgical) microscope Bresser Science MTL-201 is designed for studying opaque objects at a magnification of 50 to 800 times. It is useful in engineering and forensic research, as well as for working with minerals and metals. The microscope is equipped with plan achromatic optics, which reduces optical distortion, so even at maximum magnification the transmitted image is sharp and clear. The revolving device is designed to install five lenses simultaneously; the delivery set includes lenses of different magnifications with different working distances. The eyepiece has a slight angle, so long observations do not cause excessive fatigue. If necessary, a digital camera can be installed in a separate eyepiece tube for photographing and videotaping samples. The camera is sold separately. The stage is large enough to allow you to work with large samples. Its position can be adjusted along two axes. Coarse and fine focusing are provided. A halogen lamp with adjustable brightness is used for lighting. It runs on AC power. Also present: a field-centered diaphragm, a polarizer-analyzer pair, and light filters.
- Microscope type: stereoscopic
- Purpose: laboratory, for applied work
- Magnification, times: 50–800
- Aperture: field
- Research method: bright field
- Lenses: DIN5x (working distance 15.3mm);10x (working distance 8.9mm);20x (working distance 7.4mm);40x (working distance 3.5mm);80x (working distance 0.7mm)
- Eyepieces: WF10x
- Optical design: achromat
- Backlight: halogen
- Subject table, mm: 250x230
- Illumination location: bottom
- Revolving device: for 5 lenses
- Brightness adjustment: yes
- Light filters: yellow, green, blue, matte
- Attachment type: trinocular
- Eyepiece tilt angle: 30°
- Focus: coarse, fine
- Power supply: 220/240 V
- Warranty: 10 years
- Country: Germany
- Package size (LxWxH): 53.4x50.6x59.4 cm.
- Package weight: 20.3 kg
