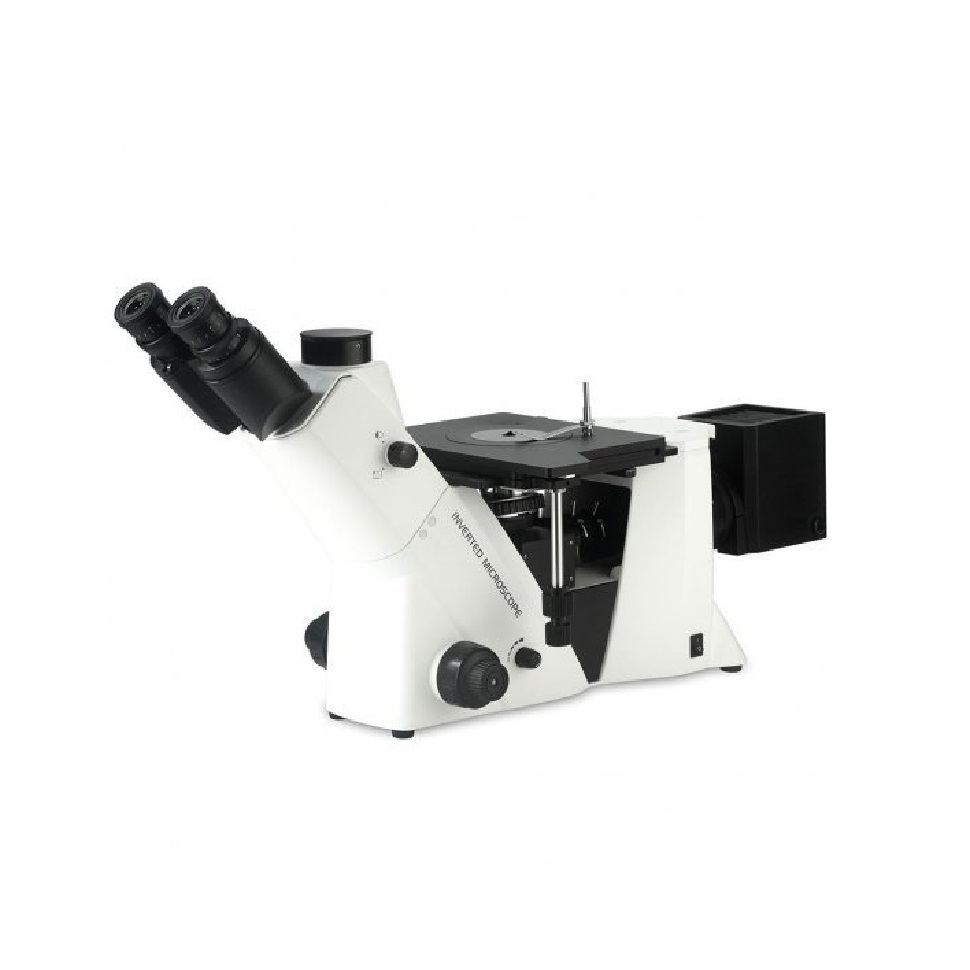

Optical microscope Biomed MMP-1
The metallographic microscope Biomed MMP-2 is designed to study the structure of opaque objects, such as metals and alloys. The model allows for research under direct illumination, as well as in polarized light. The microscope is equipped with a trinocular visual attachment with a tube angle of 30°. The nozzle rotates around its axis, allowing you to choose the optimally comfortable position for work. In addition, you can adjust the diopters and interpupillary distance to suit you. The eyepieces supplied with the microscope are wide-angle. The turret is designed to hold four lenses, which you will find in the kit. These PL lenses feature a 45mm parfocal distance. The focusing of the microscope is provided for both coarse and fine focusing. The focusing mechanism handles are coaxial, and the tension of the coarse focusing handle is adjustable. The object table includes a removable slide driver with left-hand control, and the slide holder is designed for two slides. The microscope is equipped with a Köhler illumination system. The halogen illuminator is built into the base of the device and is equipped with an iris diaphragm with a frosted filter. The brightness of the lighting is adjusted smoothly.
- Optical tube length, mm: 160
- Magnification range, x: from 40 to 1250
- Tube factor: 1.0
- Revolver device: 4-position revolver oriented away from the observer
- Visual attachment: trinocular, tube angle 30°
- Interpupillary distance adjustment: 45mm
- Dioptric adjustment: ±5
- Focusing mechanism: coaxial arrangement of coarse and fine focusing knobs, adjustable coarse focusing knob tension
- Scale division of the micrometric focusing mechanism, mm: 0.002;
- Subject table mm: 200x180, removable preparation guide
- Drug holder: cream
- Illuminator: built into the base of the microscope, with an iris diaphragm, with a matte filter, continuously adjustable brightness; halogen lamp 6 V 20 W
- Lighting system: according to Keller
- Eyepieces: WF10x /18 /Ø23 WF12.5x /14 /Ø 23 WF10x /18 /Ø23 with scale
- PL lenses: PL 10 x / 0.25 / 160 / 0.17 / PL 20 x / 0.35 / 160 / 0.17 / PL 40 x / 0.65 / 160 / 0.17 / Spring. PL 100 x / 1.25 MI / 160 / 0.17 /Spring.
- Light filters: blue, green, yellow
- Overall dimensions of the microscope, cm, no more: 42x35x52
- Weight, kg, no more: 9.5
