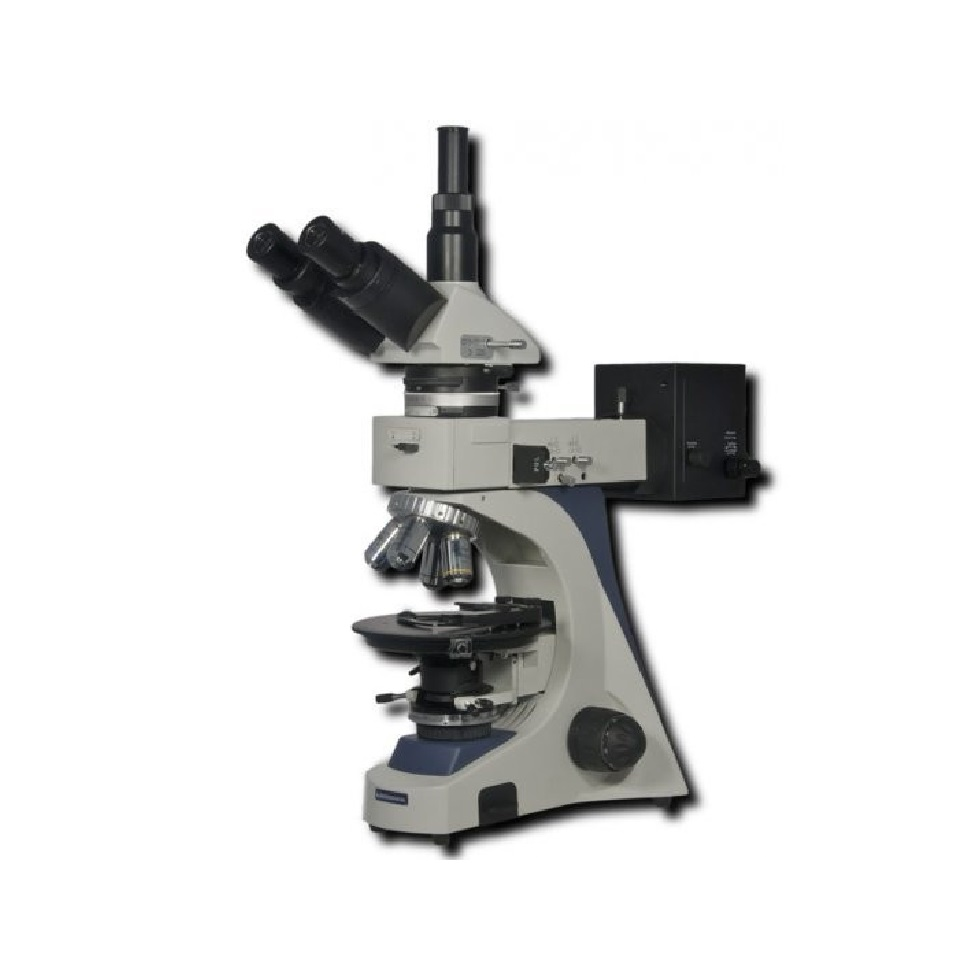

Optical microscope Biomed 6PO
The Biomed 6PO microscope is designed for polarization microscopy and implements such methods as: orthoscopic observation, conoscopic observation with a centered Bertrand lens, crystal-optric studies using a set of compensators and work in polarized light. The microscope allows you to study preparations in reflected and transmitted light, as well as in polarized light using the bright field method. The model is optimally suited for research in the fields of mineralogy, crystallography and biology - wherever the polarization method is used. Biomed 6PO is equipped with a four-socket revolving device that rotates 360°, so the complete polarized lenses (there are five of them) can be changed without interrupting work. The visual attachment is trinocular and also rotates around its axis. The microscope comes with four wide-angle eyepieces (including a reticle, crosshair and measuring scale). The microscope is equipped with a coaxial coarse and fine focusing system, as well as a polarizing condenser with a built-in aperture diaphragm. Biomed 6PO is also equipped with a rotating analyzer for transmitted light, and the Bertrand lens has a groove for compensators. The rotating polarizer has a scale for reading rotation angles. The illuminator is represented by a halogen lamp built into the base. Light intensity is adjustable.
- Microscope attachment: trinocular, 360° rotatable
- Microscope head tilt angle: 30°
- Interpupillary distance, mm: 48 - 75
- Diopter adjustment: ±5 D adjustment
- Eyepieces: WF-10/22; WF-16/16; WF-20/12
- Lenses: strain free; PL: 4x/0.1; 10x/0.25; 20x/0.40; 40x/0.65; 60x/0.85; 100x/1.25
- Lens correction type: infinity
- Parfocal distance, mm: 45
- Turret: for 5 lenses
- Microscope stage: round with graduation, diameter 160 mm, rotating 360˚, centered, removable specimen guide
- Condenser: centered double-lens aplanatic condenser, numerical aperture 1.3. With adjustable iris diaphragm and built-in 360-degree rotatable polarizer
- Transmitted light source: built into the base, continuously dimmable, halogen lamp 12V 30 W
- Reflected light source: halogen lamp 12V 30W
- Polarizer: rotatable 360◦ with rotation angle reading
- Analyzer: rotatable 0 - 90◦ for transmitted light with Bertrand lens and slot for compensators
- Compensators: 1λ (red compensator (1st order), 550 nanometers) 1/4λ (147.3 nanometers); quartz wedge (I-IV)
- Package size, cm: 60 × 55 × 33
