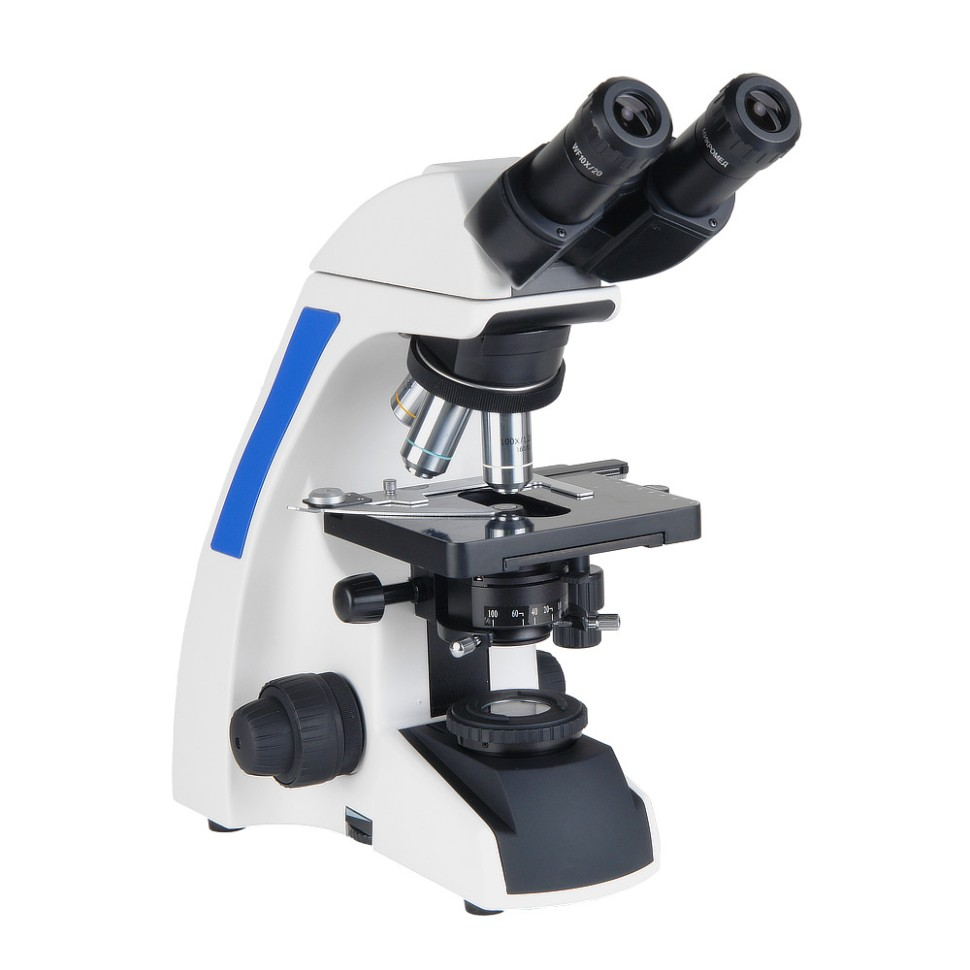

Optical microscope Biomed 6 LED
Microscope Biomed-6 LED is a laboratory microscope for research using the bright field method. The model allows for a wide range of observations in various fields of medicine, biology, and chemistry. The optics of the device provide magnification from 40 to 1000 times and high image quality thanks to achromatic lenses. The revolving device of the device, oriented away from the observer, is designed to install five lenses simultaneously. Wide-field eyepieces with increased eye relief and diopter adjustment allow for comfortable observations both with and without glasses, and a binocular head with a 30° tilt of the tubes is convenient for long-term work. The interpupillary distance can also be adjusted. Illumination is provided by a 5 W LED lamp. The retractable collector assembly facilitates user access to the light source. Köhler lighting and smooth brightness adjustments allow for uniform illumination without glare or reflections on the sample being studied. Coaxially positioned fine and coarse focus knobs help you smoothly adjust image sharpness in 0.002mm increments.
- Microscope type: biological
- Microscope attachment: binocular, 360° rotatable
- Research method: transmitted light in a bright field
- Purpose: medical/laboratory
- Microscope magnification, x: 40 - 1000
- Microscope head tilt angle: 30°
- Interpupillary distance, mm: 47 - 75
- Diopter adjustment: ± 5 D on the left tube
- Eyepieces: wide-field WF-10X/20mm-2pcs. with dioptric adjustment
- Mounting diameter of eyepieces, mm: 30
- Lenses: achromats: 4x/0.1; 10x/0.25; 40x/0.65; 100x/1.25 MI
- Lens correction type: 160
- Parfocal distance, mm: 45
- Turret: for 5 lenses
- Microscope stage: 142x132 mm, coordinate; drug manager; right-hand control knobs
- Range of movement of the object table, mm: 50 - 75
- Condenser: centered, with vertical movement NA 1.25; built-in iris diaphragm; transmitted light filter holder
- Focusing: coaxial arrangement of coarse and fine focusing knobs; graduation value 0.002 mm
- Transmitted light source: 5 W LED, continuously dimmable
- Light filters: yellow; blue, green
- Package size, cm: 53 × 33 × 39
- Weight, kg: 6.5
- Package weight, kg: 8.5
