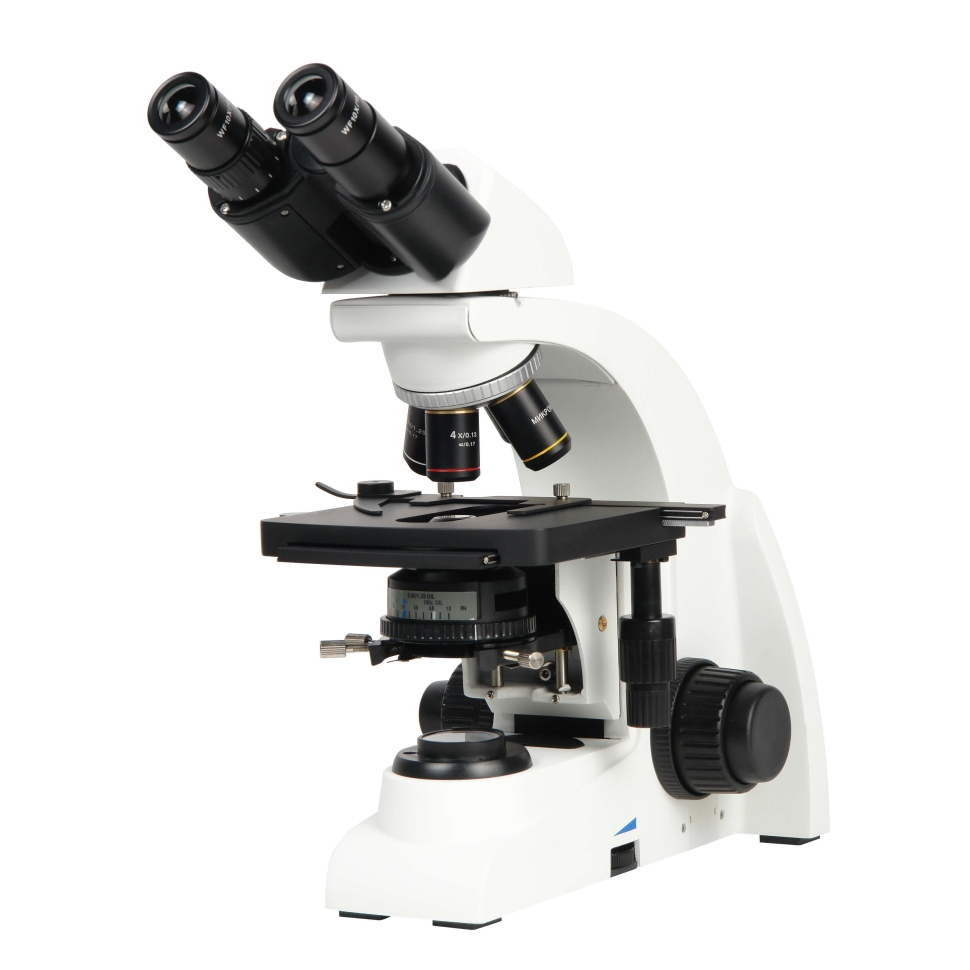

Optical microscope Biomed 6, binocular
The Biomed 6 binocular microscope is an excellent choice for laboratory research or in-depth study of biology at home or at university. This is a professional instrument with achromatic optics, built-in filters, precise focusing and magnification up to 1600x. You can study both thin sections and the life of bacteria. The microscope is also suitable for diagnostics. The microscope has a rotating head, which allows you to study samples in a group of several people. You don't have to move the microscope to show the results of your research to others - just rotate the nozzle. The attachment is binocular - you can observe with both eyes at once. This design is more familiar and reduces eye strain. The set includes two pairs of wide-field eyepieces 10x and 16x with an enlarged front lens. The interpupillary distance can be adjusted. The revolving device faces away from the observer - this helps free up the working space above the table. The device accommodates four achromatic infinity objectives, including a 100x oil immersion objective. The anodized stage moves vertically and horizontally and is equipped with a specimen holder for two slides. Coarse and fine focusing can be done within a range of 8mm, and the tension of the coarse focusing knob is adjustable. Spring-loaded lens frames and a limiter for the upper limit of the stage's lift reliably protect specimens from damage. Under the table there is a centered Abbe condenser with an aperture diaphragm and light filters that are installed directly on the collector, which makes work easier. Even lower is a halogen backlight with continuously adjustable brightness. The backlight is powered from the mains, the power cord is included. Even during prolonged operation, the base of the microscope does not heat up from the lamp. The Biomed 6 microscope in the basic configuration allows for observations in transmitted light using the bright field method. It can be upgraded using proprietary Biomed components for dark-field observations or using the phase contrast method (additional accessories are purchased separately).
- Microscope type: biological
- Microscope attachment: binocular, 360° rotatable
- Research method: transmitted light in a bright field
- Purpose: medical/laboratory
- Microscope magnification, x: 40 - 1600
- Microscope head tilt angle: 30°
- Interpupillary distance, mm: 48 - 75
- Diopter adjustment: ± 5 D on the left tube
- Eyepieces: wide-field WF-10x-2 pcs.; WF-16x-2pcs.
- Mounting diameter of eyepieces, mm: 23.2
- Objectives: achromats are designed for tube length ∞ (infinity): 4x/0.13; 10x/0.3; 40x/0.7; 100x/1.25 MI
- Lens correction type: ∞ - designed for infinity
- Parfocal distance, mm: 45
- Turret: for 4 lenses
- Microscope stage: 155x135 mm, coordinate; drug manager; right-hand control knobs
- Range of movement of the object table, mm: 50 - 75
- Condenser: centered, with vertical movement NA 1.25; built-in iris diaphragm; transmitted light filter holder
- Focusing: coaxial arrangement of coarse and fine focusing knobs; division value 0.001 mm
- Transmitted light source: halogen 12V 20W, smooth brightness adjustment
- Light filters: yellow; blue, green
- Package size, cm: 48 × 48 × 29
- Weight, kg: 6.3
- Package weight, kg: 8
