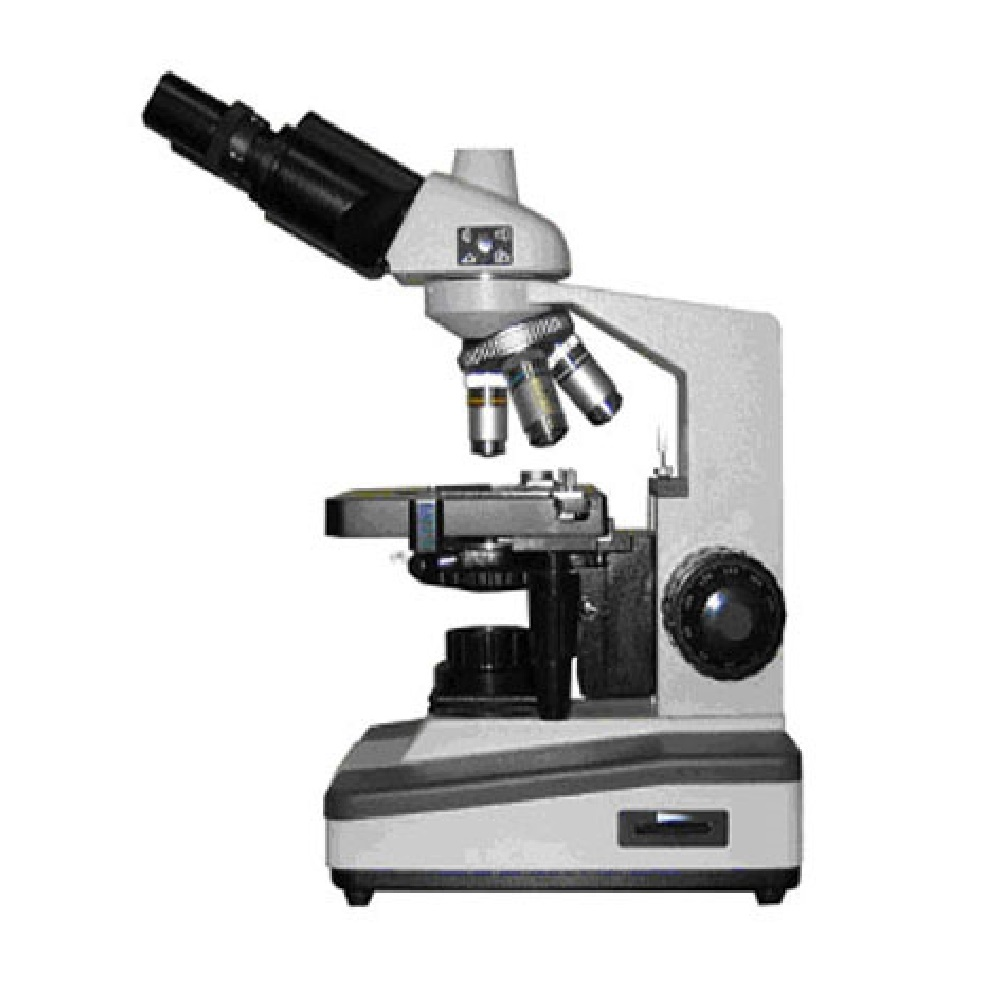

Optical microscope Biomed 4, binocular
The Biomed 4 binocular microscope is well suited for studies in transmitted light using the bright field method. When additionally equipped with a dark-field condenser and a phase-contrast device, the model can also be used to work with phase contrast and dark-field methods. Biomed 4 is a binocular that can be successfully used in biology, ecology and veterinary medicine. This microscope will find its application in research laboratories of various fields. It can also be used in educational institutions. The model is equipped with a binocular visual attachment. The revolving device of the device is designed for four lenses. The included wide-angle eyepieces and achromatic objectives provide crisp, clear images across the entire field of view. The microscope is equipped with a stage with coordinate movement, as well as an Abbe condenser with replaceable filters. The kit includes a blue and green filter. At the base of the microscope there is an illuminator in the form of a halogen lamp. The backlight is powered by a conventional 220 V power source. The kit includes (along with the Biomed 4 microscope) instructions and a warranty card.
- Microscope type: biological
- Purpose: laboratory/medical
- Attachment type: binocular
- Magnification, times: 40–1600
- Eyepieces: wide field 10x, 16x
- Lenses: achromatic: 4x0.1; 10x0.25; 40x0.65; 100x1.25 MI
- Revolving device: for 4 lenses
- Subject stage, mm: with coordinate movement
- Condenser: Abbe condenser with replaceable filters
- Backlight: halogen
- Light filters: blue, green
- Illumination location: bottom
- Research method: bright field
- Power supply: 220V/50Hz
- Dimensions, mm: 260x160x360
- Weight, kg: 4.7
