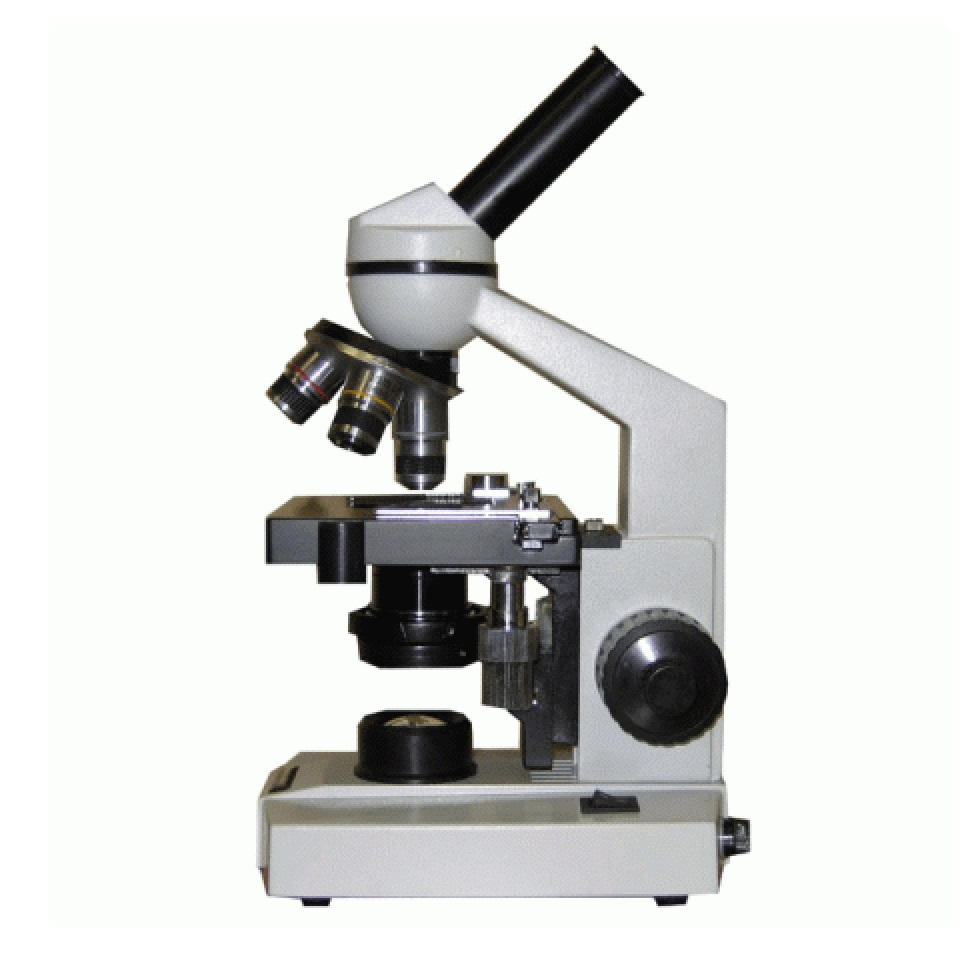

Optical microscope Biomed 2 LED
Biomed 2 is a microscope with adjustable magnification in the range from 40 to 1000 times. Designed for observations in transmitted light using the bright field method. The microscope design uses an LED as a light source, which requires a 220 V connection to power it. The monocular is equipped with a 4-socket turret, allowing you to quickly select the desired lens. All lenses included in the kit are achromatic. The microscope is also equipped with a two-coordinate stage and an immersion condenser with a built-in aperture diaphragm. The focusing mechanism includes coarse and fine adjustment knobs, coaxially located on the left side of the microscope.
Price on request
- Microscope type: light/optical, biological
- Attachment type: monocular
- Nozzle: 360° rotatable
- Eyepiece tilt angle: 45°
- Magnification, times: 40–1000
- Eyepieces: wide field 10x
- Lenses: achromatic: 4x0.1; 10x0.25; 40x0.65; 100x1.25
- Revolving device: for 4 lenses
- Subject table, mm: 110x120
- Range of movement of the object table, mm: 60x30
- Condenser: centered immersion condenser Abbe N.A. 1.25
- Focusing: coaxial coarse and fine focusing mechanism
- Backlight: LED
- Light filters: blue, green
- Purpose: school/educational, laboratory/medical
- Illumination location: bottom
- Research method: bright field
- Power supply: 220V/50Hz
- Dimensions, mm: 140x190x350
- Weight, kg: 3.02
