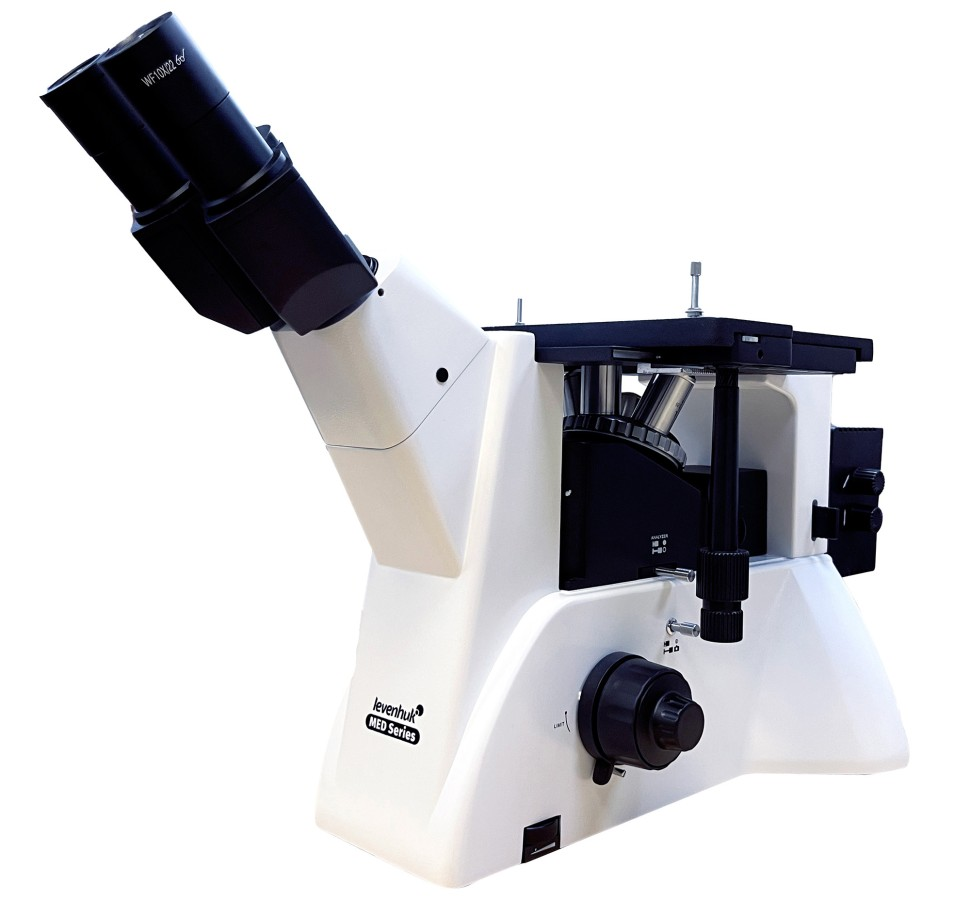

Levenhuk IMM1000 Optical Inverted Metallographic Microscope
Levenhuk IMM1000 is a metallographic inverted microscope that allows you to study metal alloys, as well as large opaque objects in reflected and polarized light. The maximum weight of the object under study can be 2 kg. The capabilities of this microscope will be useful when performing work on quality control of products and materials, for visual observations of flat sections, during laboratory and research studies at enterprises of the metallurgical and mechanical engineering industries. The microscope is highly reliable, stable and comfortable for long-term use. If necessary, the binocular attachment can be rotated 180° to increase the height of gaze. The eyepieces provide 10x magnification. “Infinite” planachromatic lenses in the amount of 4 pieces are already installed on the microscope, the revolving device itself can accommodate 5 lenses. The magnification range of the microscope is from 100 to 1000 times. You can also install a digital camera on the microscope (purchased separately) - there is a separate tube in the housing (on the side) for it. The illumination source is a halogen lamp, there is an aperture and iris diaphragm, and a removable polarizer is installed on the microscope. The backlight operates on AC power. The revolving device can be moved - this is how focusing is achieved. The object stage also moves in two mutually perpendicular planes.
- Microscope type: metallographic
- Purpose: research
- Magnification, times: 100 - 1000
- Attachment type: binocular
- Eyepiece rotation: 180°
- Interpupillary distance, mm: 48 - 75
- Mounting diameter of eyepieces: 30 mm
- Eyepieces: 10x/22 mm (2 pcs.)
- Lenses: planachromatic, telephoto, 10x/0.25, 20x/0.40, 50xs/0.70, 100xs/0.85
- Correction for microscope tube length: infinity
- Revolving device: for 5 lenses
- Subject stage: 242x200 mm, mechanical two-coordinate; glass insert Ø130 mm
- Range of movement of the drug, mm: 30 × 30
- Diaphragm: field, aperture
- Focusing: coaxial, coarse (with locking and rigidity adjustment mechanisms) and fine
- Fine focusing step, mm: 0.002
- Backlight type: halogen
- Lamp power: 6V/30W
- Backlight power: mains 220 V/50 Hz
- Research method: bright field, polarization
- Light filters included: blue, green, yellow, matte
- Country of origin: China
- Manufacturer's Warranty: Lifetime
- Package size: 49 × 36 × 61 cm
- Package weight: 15 kg
