Robotics and programming

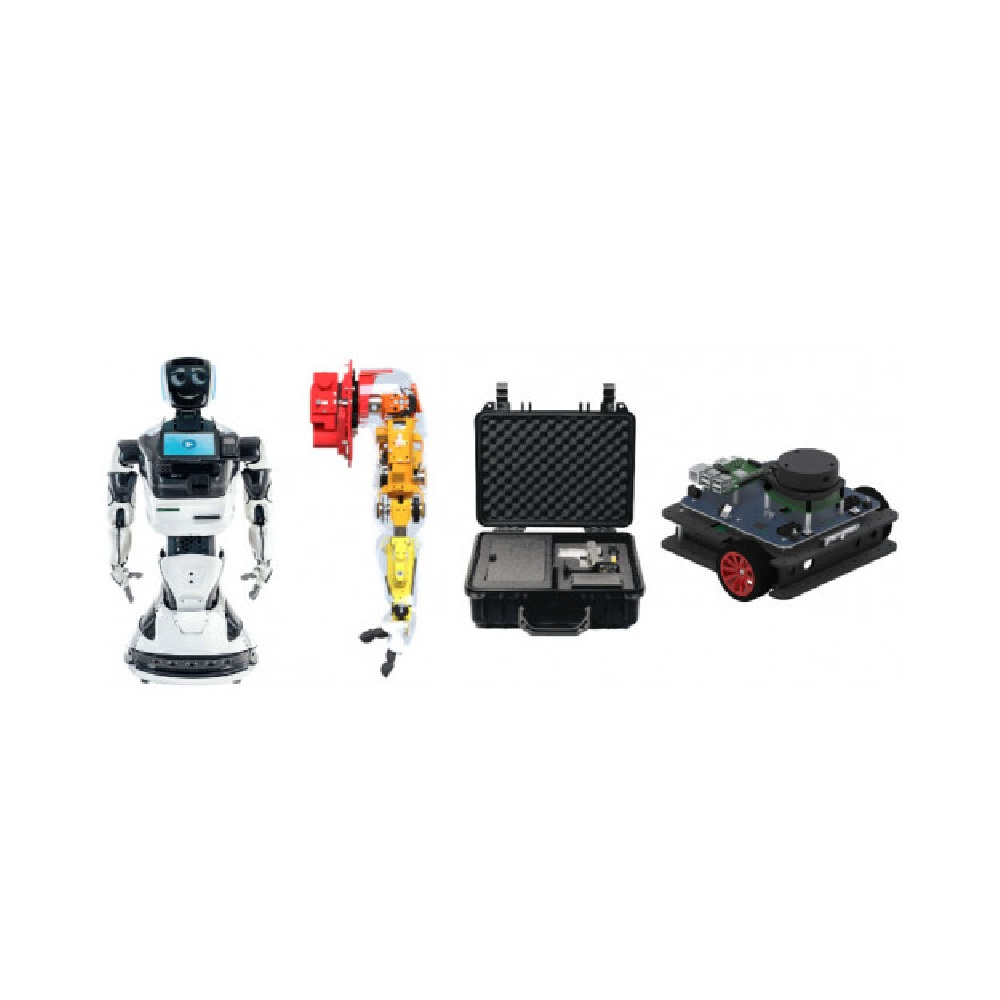

Educational complex Promobot Education

The educational complex Promobot Education is a new system for effectively learning the basics of robotics and programming. Used in educational institutions (schools, colleges, lyceums). Helps children explore real business sectors.

• Robot dimensions: Minimum: 1485x740x716 (HxWxD), mm Maximum: 1585x2060x716 (HxWxD), mm
• Charging station dimensions: 700x650x300 (HxWxD), mm
• Dimensions of the transport case: 1645x920x1010 (HxWxD), mm
• Robot weight: Up to 130 kg
• Charging station weight: 10 kg
• Total weight with packaging: Up to 205 kg
• Robot charging time: Charging station: up to 8 hours Power cable: up to 6 hours
• Battery life: Up to 8 hours
• Travel speed: 0.2 m/s
• Drive: 2 wheels with steering rollers
• Manipulator arms: 2 manipulators, movement in 6 (+1) degrees of freedom
• Head movement: Movement in 2 degrees of freedom
• Torso movement: Movement in 3 degrees of freedom, change in torso height
• Camera: Face recognition: up to 30 fps at a resolution of 1280x720 Face search: up to 25 fps at a resolution of 1920x1080 Telepresence: up to 30 fps at a resolution of 640x480 Search for a charging station: up to 30 fps at a resolution of 640x480
• Microphone: Omnidirectional array microphone*
• Speakers: 20 watt 2 pcs.
• Monitor: 10.1” touchscreen display with a resolution of 1280x800
• Sensors: Ultrasonic sensors 16 pcs., Infrared sensors 16 pcs., 3D sensor 1 pc., Touch sensors 4 pcs.
• Housing material: Plastic
• Lidar: Necessary for building a map of the room
• Front panel and backlight color: RGB (full color), segment backlight
• Pronunciation of speech modules: Speech synthesis
• Arbitrary movement: Yes
• Automatic access to the charging station: Yes
• Linguistic database service: Yes
• Equipment: Promobot robot; Joystick wireless; Operating Instructions (User Guide); Charging station; Cable for charging station; Transport case.
• Input voltage: ~220/110 V
• Output voltage: 12V
• Interface: USB 2.0
• Interface for working with devices: RS-485
• Supply voltage: 8-40 V
• Nom. consumption (no load): 125 mA
• Nom. consumption (hold): 2.0 A
• Holding torque (24V): 35.82 kg/cm
• Weight: 500 g
• Gear ratio: 1:32
• No-load speed (24V): 80 rpm
• Supply voltage: 9-12 V
• Nom. consumption (measurement mode): 70 mA
• Ultrasound signal frequency: 40 kHz
• Ultrasound receiver sensitivity: -64 dB
• Sound pressure of the ultrasonic emitter: 120 dB
• Working measurement angle (UZ): 30º
• Max. measured distance (US): 255 cm
• Min. measured distance (US): 4 cm
• IR emitter wavelength: 940 nm
• Max. Measuring distance (IR): 200 cm
• Min. Measuring Distance (IR): 2cm
• Working angle of IR emitter: 35º
• Working angle of IR receiver: 25º
• Contents: 1. Case 2. Cable for connecting the interface unit to a PC 3. Cable for connecting the distance sensor to the interface unit 4. Cable for connecting the servo drive to the interface unit 5. Range Sensor distance sensor with stand 6. Cable for connecting the power supply to a 220/110 V network 7. Interface unit 8. Power supply for operation in a 220/110 V network 9. Servo
• Input voltage: ~220 V
• Motor supply voltage: 24 V
• Maximum current: 15 A
• Power: 350 W
• Number of servos: 6 + 1
• Interface: RS-485
• Weight: 10 kg
• Shoulder joint: 160°
• Shoulder joint (elevation): 83°
• Shoulder joint (rotation): 173°
• Elbow (raise): 80°
• Elbow joint (rotation): 172°
• Wrist (instep): 52°
• Toes (lift): 75°
• Contents: Manipulator mounting bracket Manipulator arm Emergency stop button Emergency stop button connection cable Interface unit USB cable for connecting the interface unit to a PC Cable for connecting the manipulator to the interface unit Power supply for the interface unit Cable for connecting the manipulator power supply to a 220 V network
