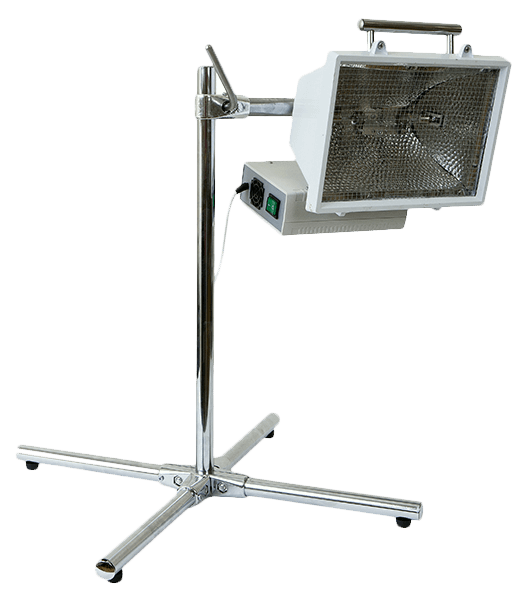

Mercury-quartz irradiator Med TeCo ORKn
Mercury-quartz irradiator Med TeCo ORKn The mercury-quartz desktop irradiator "ORKn-Med TeCo" is used for general and local irradiation with integral UV radiation, both for therapeutic and preventive purposes in physiotherapy rooms of medical institutions. Reflex reactions arising from UV radiation stimulate the activity of almost all body systems. The adaptation-trophic function of the sympathetic nervous system is activated and the disturbed processes of protein, carbohydrate and lipid metabolism in the body are restored. Therapeutic effects: vitamin-forming; trophostimulating; immunomodulatory (suberythemal doses); anti-inflammatory; analgesic; desensitizing (erythemal doses). Indications for use: acute and subacute inflammatory diseases of internal organs (especially the respiratory system); consequences of injuries to the musculoskeletal system; diseases of the peripheral nervous system of vertobrogenic etiology with severe pain syndrome (radiculitis, plexitis, neuralgia, myositis); diseases of joints and bones; D3-hypovitaminosis; secondary anemia; nutritional-constitutional obesity of the first degree. Contraindications: hyperthyroidism; increased sensitivity to ultraviolet rays; kidney diseases; systemic lupus erythematosus; malaria. Manba: https://www.nv-lab.ru/catalog_info.php?ID=7167
- Irradiator readiness time for operation, min: no more than 15
- Continuous operating mode, at least, hours: 8
- operating time, h: 2
- pause time, min: 30
- Radiation source lamp type: DRT 240
- Irradiance in the effective spectral range 220-400 nm at a distance of 0.5 m from the end of the reflector, W/m2: 15 ± 5
- The working irradiation area must be at least, m: 0.135 x 0.225
- Irradiation unevenness coefficient within the working surface: not less than 0.7
- Service life: 5 years
- UV lamp life: no more than 2500 hours
- Supply voltage, V: 220 ± 22
- Supply frequency, Hz: 50
- Power consumed from the network, VA: no more than 500
- Overall dimensions, mm: no more than 580 x 590 x 470
- Weight, kg: no more than 3.5
