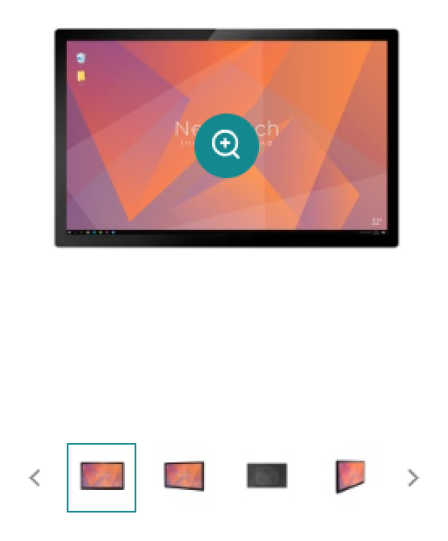

Interactive panel Newline TT-9821Q
The Newline TT-9821Q is a new, unique, convenient and affordable 86-inch all-in-one interactive display panel for business and education from one of the world's largest interactive display manufacturers.
Price on request
- Diagonal 86"
- Aspect ratio 16:9
- Resolution 3840*2160 (60Hz) 4K UHD
- Protective glass thickness 4 mm
- LED backlight type
- HDMI input 3 (2.0)
- HDMI output (switch) Yes
- HDMI output resolution 3840x2160@60
- DP input 1 (1.2)
- VGA input No
- SPDIF 1
- USB Type C 2 (1 with PD 65W)
- Front USB A 1 (3.0)
- USB A rear 3 x 3.0 (2 x Public, 1 x Embedded)
- USB B 4 x 3.0 (1 - front, 3 - rear)
- Mic 1
- Audio In No
- Audio Out 1
- RS232 1
- RJ45 2
- Built-in Windows PC No
- Windows PC processor -
- Windows PC RAM -
- Windows PC SSD -
- Built-in FullHD cameras Option (4K)
- Built-in microphones No
- Public USB Yes
- Optical bonding No
- The glass surface is antibacterial, anti-reflective surface
- Stylus type Passive
- Number of styluses 2
- Number of touch points 20
- Recognition finger, marker, fist, pen, pencil Yes
- Windows Gestures Yes
- Gestures in MS Office Yes
- Android 11 version
- Android processor Amlogic A311D2 8 cores (4 x Cortex-A73 @ 2.2 GHz, 4 x Cortex-A53 @ 2.0 GHz
- Android Mali G52 graphics card
- Android RAM 4 GB
- Android ROM 64 GB
- Newline Cast (wireless broadcast to screen) Yes
- Newline Broadcast (panel broadcast to 200 devices) Yes
- Remote control Yes
- Built-in file manager Yes
- Built-in browser Yes
- Access to network drives and cloud storage Yes
- Built-in document editor Yes
- Ability to install Android applications Yes (built-in store, APK, remotely)
- VESA (mm) 800x600 mm
- Backlight life >50,000 hours
- 3 year warranty
- Features 98", 4K 60 Hz, object recognition in Windows and Android (finger, marker, fist) without drivers, saving in PowerPoint, Word (Office 365), Excel (Office 365), PDF, MS Whiteboard, MS OneNote without drivers, AirPlay, built-in Android 11, changeable user profiles, customizable interface, forwardable USB, optional 4K camera, huge amount of memory, USB Type C x 2 (full)
- Net weight 85 kg
- Dimensions (mm) 2255 x 1361 x 106
