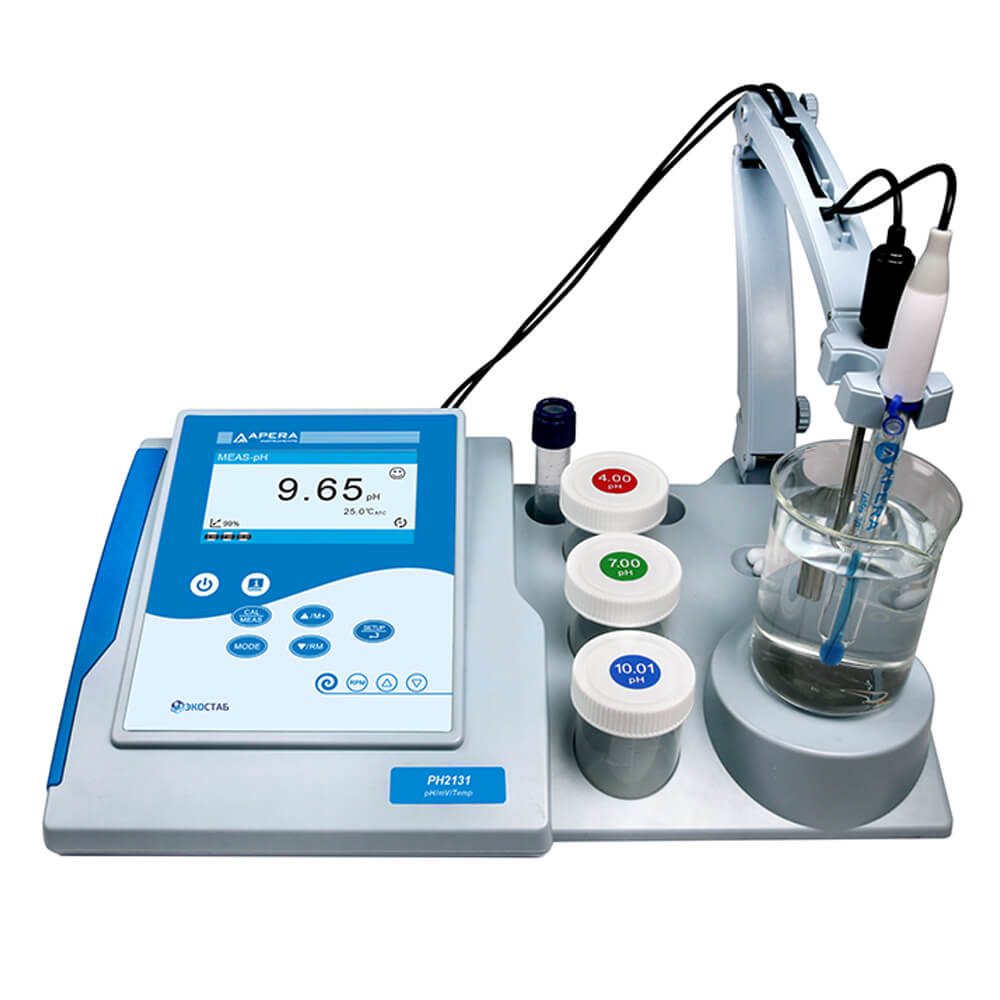

Tabletop pH meter ECOSTAB PH2131
Tabletop pH meter ECOSTAB PH2131 Equipped with a combined LabSen® 211 pH electrode and MP500 temperature sensor, which provides high accuracy and fast measurement results. Automatic 1-5 point calibration with step-by-step calibration instructions and self-diagnosis. Automatic recognition of pH standard solutions (1.68, 4.00, 7.00, 10.01, 12.45) and the ability to work with custom standards. An improved, intuitive interface with graphical prompts and the ability to select a language, easy navigation through the device menu. Manual or automatic measurement data storage with up to 1000 records and GLP function including electrode ID, user ID, sample ID, company name and password to protect calibration data. The device has the ability to export data via a USB interface to a PC for further analysis or a printer for printing a report. The i-Guide function is activated by pressing the "i" key and opens Access training instructions, messages, and on-screen guidance to help the user set up and calibrate the instrument. Color TFT display. Durable and reliable housing with dust and moisture protection IP54. Standard BNC connector compatible with LabSen® professional pH electrodes for a variety of applications. Built-in self-diagnosis function. Automatic Temperature Compensation (ATC) ensures accuracy at different temperatures. Supplied complete with a measuring stand which includes an electrode holder, an intelligent automatic stirrer and organizer for buffer solutions, and allows you to optimize the process pH measurements and calibrations. Also included is a starter kit for analysis: electrode, set of pH buffers (4.00, 7.00, 10.01) 50 ml each, flash drive with PC-Link software, USB cable, 9 V network adapter. Applications: Water supply. Laboratory analysis. Treatment facilities. Environmental monitoring. Drinks and juices. Natural / drinking / clean water. Manba: https://www.nv-lab.ru/catalog_info.php?ID=7913
- Parameter: Value
- Measured parameter: EMF / ORP / pH / Temperature
- Measuring ranges:
- - EMF, mV;
- - ORP, mV;
- - pH;
- - temperature, °C: from -2000 to 2000;
- from -128 to 1272;
- from 1 to 14;
- from 0 to 100
- Resolution:
- - ORP, mV;
- - pH;
- - temperature, °C: 0.1;
- 0.001;
- 0.1
- Absolute measurement error:
- - EMF, mV;
- - ORP, mV;
- - pH;
- - temperature, °C: ±4;
- ±10;
- ±0.03;
- ±1
- Data storage (numbering, measurements, unit of measurement, temperature and temperature compensation status, including electrode ID, user ID, sample ID, company name and password to protect calibration data): 1000 records
- Calibration: Automatic from 1 to 5 points
- Functions: Calibration reminder and calibration data check: Yes
- Measurement alarm: Yes
- Temperature compensation, °C: Automatic (ATC) or manual from 0 to 100
- Display: Color display (TFT)
- Auto Hold: Yes
- Stable measurement indication: smiley icon
- Stability indicator setting: Low-Medium-High
- Function: date and time, date and time storage: Yes
- USB interface: Yes
- GLP seal: Yes
- Self-diagnosis: Yes
- Dust and moisture protection degree: IP54
- Power: Input: AC 120V/60Hz;
- Output: DC 9V/600mA, 2.7VA
- Dimensions, mm: 360 × 165 × 400
- Weight, kg: 1.25
