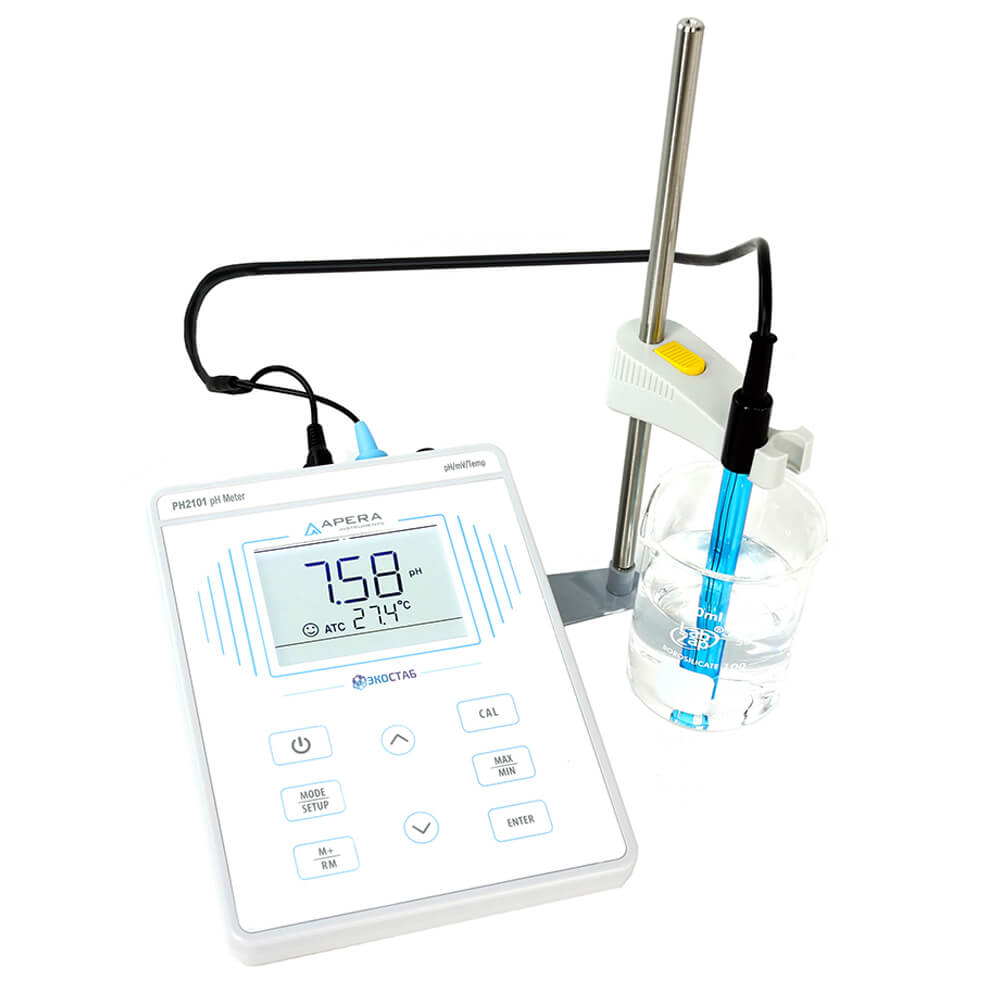

Tabletop pH meter ECOSTAB PH2101
Tabletop pH meter ECOSTAB PH2101 Equipped with a combined pH electrode 201T-F (3-in-1), it has the ability to simultaneously measure pH and temperature values, and automatic temperature compensation. Advanced auto calibration mode with step-by-step calibration guidance and self-diagnosis, and advanced digital signal processing technology helps you obtain fast and stable pH readings. Large LCD display shows pH and temperature, stable readings and completed calibrations. The screen is protected by an acrylic coating that is resistant to scratches and water ingress. Durable and reliable housing with dust and moisture protection IP54. Standard BNC connector compatible with professional pH electrodes LabSen® for various applications. Built-in self-diagnosis function. The device memory can store up to 50 records. Automatic Temperature Compensation (ATC) ensures accuracy at different temperatures. Supplied with a starter kit for analysis: electrode, electrode holder (can be installed on the left or right side of the device), set of pH buffers (4.00, 7.00, 10.01) 50 ml each, 9 V mains adapter. Applications: Water supply. Treatment facilities. Laboratory analysis. Drinking/waste water. Manba: https://www.nv-lab.ru/catalog_info.php?ID=7910
- Parameter: Value
- Measured parameter: EMF / ORP / pH / Temperature
- Measuring ranges:
- - EMF, mV;
- - ORP, mV;
- - pH;
- - temperature, °C: from -2000 to 2000;
- from -128 to 1272;
- from 1 to 14;
- from 0 to 50
- Resolution:
- - ORP, mV;
- - pH;
- - temperature, °C: 1;
- 0.01;
- 0.1
- Absolute measurement error:
- - EMF, mV;
- - ORP, mV;
- - pH;
- - temperature, °C: ±4;
- ±10;
- ±0.03;
- ±1
- Data storage (numbering, measurements, unit, temperature and temperature compensation status): 50 records
- Calibration: Automatic from 1 to 3 points
- Temperature compensation, °C: Automatic (ATC) or manual from 0 to 100
- Display: Liquid crystal display (LCD)
- Stable measurement indication: smiley icon
- Self-diagnosis: Yes
- Dust and moisture protection degree: IP54
- Power: Input: AC 120V/60Hz;
- Output: DC 9V/300mA, 2.7VA
- Dimensions, mm: 240 × 235 × 103
- Weight, kg: 1
