Semiconductor demo kit

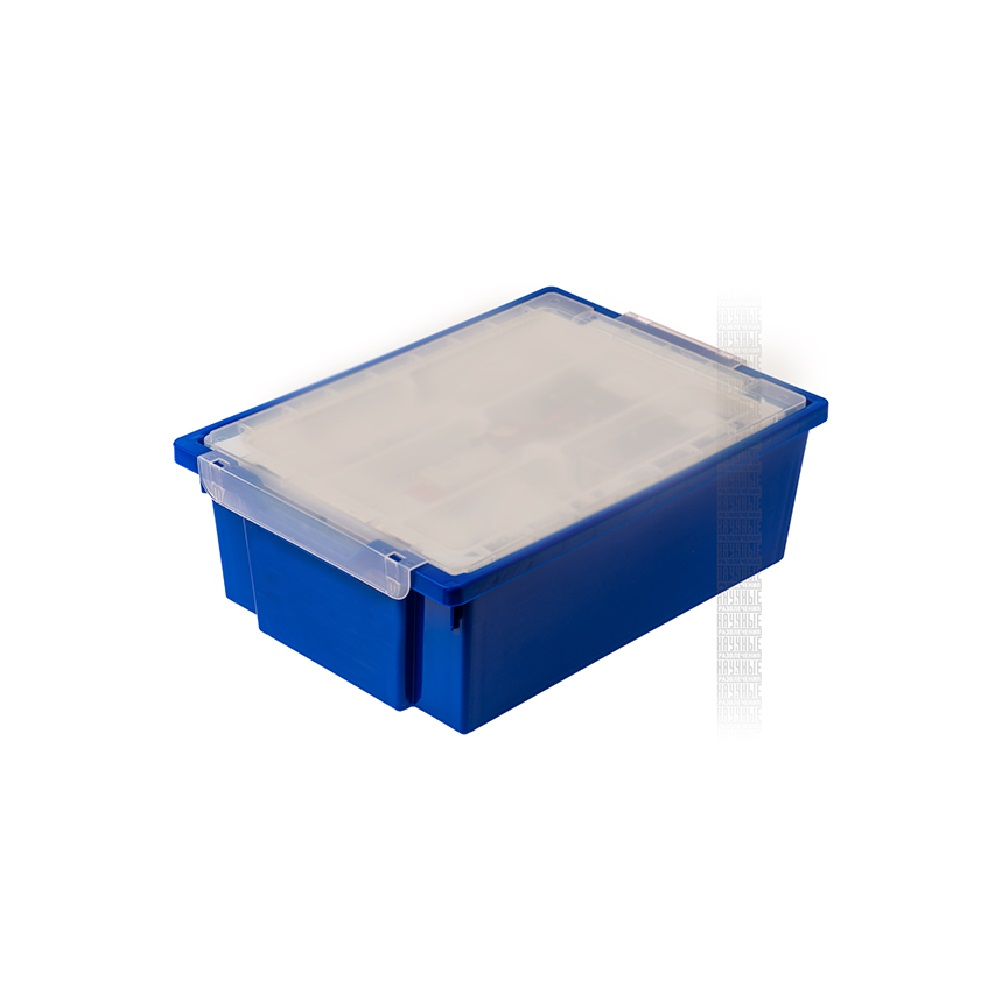

The set is intended for studying current in semiconductors and their technical applications. What will the child learn? Provides study of the dependence of semiconductor resistance on temperature, study of the dependence of semiconductor resistance on illumination, study of LEDs, as well as transistor devices, photo relays. In addition, the kit allows you to perform computational modeling of transistor operation. Working method Allows you to teach the main stages of conducting experimental research, and also allows you to conduct joint research with students. Composition: Diode LED Photocell Photoresistor Thermistor 360 ohm resistor Lamp PNP transistor 470 ohm variable resistor mounted on plastic platforms Simulation software The entire set is equipped with a plastic storage system with a tray, which is closed with a transparent lid. Methodological support The set is provided with methodological recommendations in Russian for conducting experiments. Examples of experiments The kit provides 10 demonstration experiments on the following topics: Studying the dependence of semiconductor resistance on temperature Studying the dependence of semiconductor resistance on illumination One-way conductivity of a semiconductor diode Studying an LED Transistor design Key operating mode of a transistor Amplification of an electrical signal by a transistor Action of a photorelay Action of a thermal relay Current source based on a semiconductor photocell To operate the starting device, an additional power source with a voltage of at least 12V is required, for example, a 24V power supply adjustable with a load current of up to 10A. Important: The product is included in the register of industrial products produced on the territory of the Russian Federation 2740\7\2022. Included in the list of educational equipment for equipping new-built schools (Order No. 804 of the Ministry of Education of the Russian Federation dated 09/06/2022)
- Academic discipline: Physics
- Recommended age: from 14 years old
- Storage system: Tray
- Material: Plastic
- Country of origin: Russia
