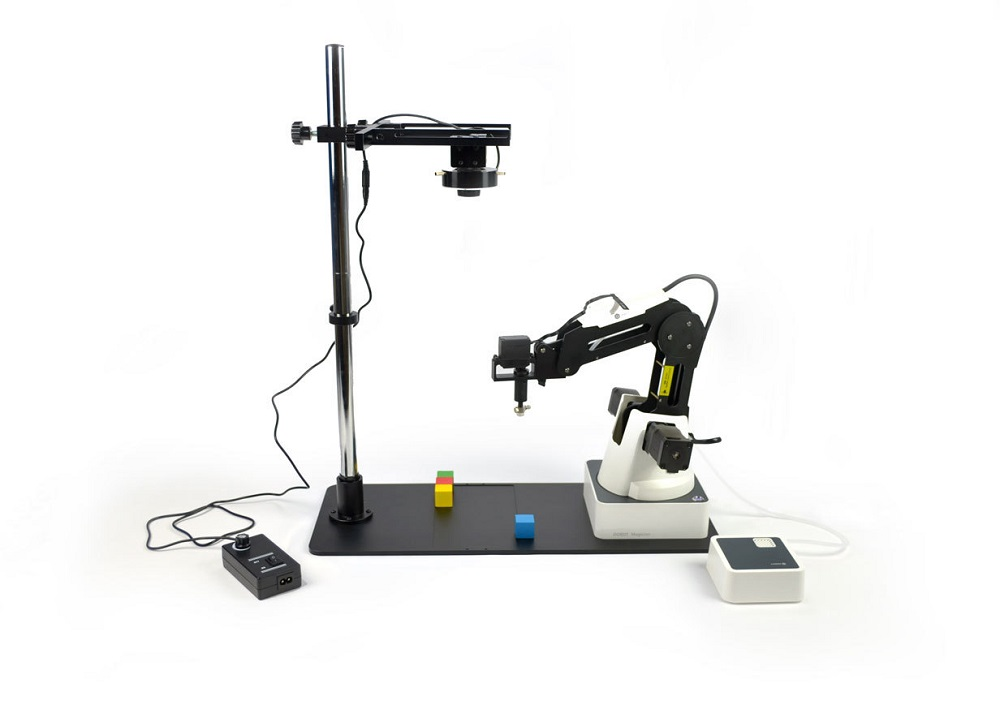

DOBOT Magician Vision Module
The optional vision module for the DOBOT Magician robotic arm is a set of hardware platforms for developing a vision system. This module will allow students to become familiar with the basic principles of robot vision and the integration of a vision system into a manipulator control system. The module also allows you to conduct research on pattern recognition, create artificial intelligence algorithms and develop industrial applications based on technical vision. By equipping a robotic manipulator with technical vision, it becomes possible to significantly increase the degree of automation of operations performed, as well as train the manipulator to achieve greater accuracy.
Price on request
- Contents: Working field for fixing the camera and Dobot Magician High-resolution color industrial camera Bracket for the camera with a base for attaching to the working surface Auxiliary camera lighting kit USB cable for the camera Calibration field Colored wooden cubes (40 pcs) Set of tools. Instructions for installation and operation of the kit.
- Camera: High-resolution color industrial camera Number of effective pixels: 3 million Frame rate: 12 FPS Resolution: 2048 × 1536 pixels Dimensions: 40x45x45 mm Data interface: USB 2.0
- Auxiliary light source: Lighting color: white Illumination: 40,000 lux Power: 3.5-5 W Brightness adjustable in the range 0-100%, color temperature does not change Working distance: 35-110 mm Dimensions: outer diameter - 70 mm, inner diameter - 40 mm, height - 25 mm
- Lens: Focal length: 16 mm Aperture: F1.4 - F16 Focus point: 0.3m - ∞ Dimensions: diameter 33.5 mm, height 28.2 mm
- Weight (kg): 0.48
