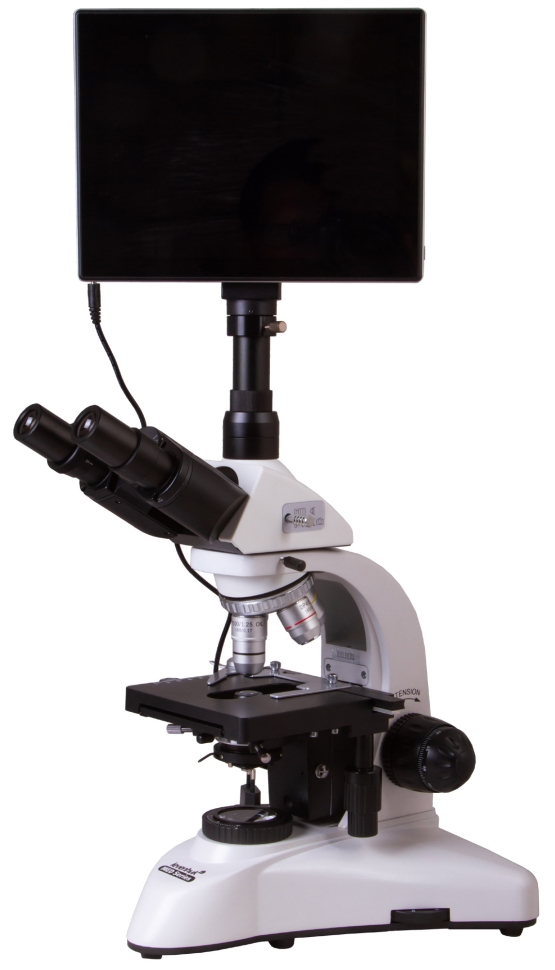

Levenhuk MED D20T LCD digital microscope
Levenhuk MED D20T LCD Digital Microscope has a digital camera with a resolution of 5 MP and an LCD display for bright-field observation and demonstration without connecting to a PC. The planachromatic optical system allows you to magnify the image from 40 to 1000 times without loss of quality. This device will be an equally useful acquisition for both a scientific institute and a medical institution. Digital advantages of the model Digital capabilities make it possible not only to study drugs in great detail, but also to record photos and videos. In addition, the screen as an observation tool reduces eye strain and makes it possible to use a digital microscope as a visual aid, demonstrating the process in front of an audience. High-quality optics with infinite correction type Plan lenses, correcting image distortions at the edges, provide high detail of the entire object of study. As a professional category device, the microscope has optics, the infinite type of correction of which makes it possible to install additional components, for example, polarizers or illuminators, in the space between the lens and the tube. Thus, you can optimize the Levenhuk MED D20T LCD biological microscope to solve a specific research problem. Ergonomic design and convenient operation The 30-degree tilt of the observation section of the digital microscope allows you to observe in a comfortable position without straining your neck and shoulders. All optical parts of the device are coated with an antifungal substance, which is very useful when conducting biological research. The micropex ratio is changed by rotating the turret mechanism, which is very convenient for complex studies. To quickly position the drug under study under the lens, the stage is equipped with a drug driver. You can save the results of your work on a microSD flash card with a capacity of up to 32 gigabytes, which allows you to create an extensive data library. For further processing of the results obtained on a PC, the device comes with a CD with Levenhuk software, which makes it possible not only to display the results of the study on the screen, but to process images, create an archive and change image parameters.
- Microscope type: digital, biological
- Attachment type: trinocular
- Maximum resolution: 2048x1536 pixels
- Optics material: optical glass with anti-fungal coating
- Nozzle: 360° rotatable, with light divider
- Eyepiece tilt angle: 30°
- Magnification, times: 40-1000
- Diameter of the eyepiece tube, mm: 30 mm (binocular attachment); 23.2 mm (third vertical tube)
- Eyepieces: wide-field with diopter adjustment WF 10x/18 mm (2 pcs.)
- Lenses: semi-planachromatic 4x, 10x, 40xs, 100xs (oil)
- Revolving device: for 4 lenses
- Interpupillary distance, mm: 55–75
- Subject table, mm: mechanical two-layer, 140x140 mm, with preparation guide
- Range of movement of the object table, mm: 75/50
- Diopter adjustment of eyepieces, D: ±5
- Condenser: Abbe N.A. 1.25 with iris diaphragm and filter holder
- Aperture: iris
- Focusing: coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion mechanism
- Backlight: halogen
- Brightness adjustment: yes
- Backlight type: 6V/20W, AC 85-230V
- Light filters: blue, green, yellow
- Additionally: collector, Koehler lighting
- Number of megapixels: 5
- Sensing element: 1/2.5
- Pixel size, microns: 2.2x2.2
- Sensitivity, volts per lux-second at a wavelength of 550 nm: 0.53
- Video recording capability: yes
- Frame rate: 15
- Place of use: 23.2mm microscope third eyepiece tube; using a camera mount
- White balance: auto/manual
- Exposure control: auto/manual
- Software, drivers: Android 5.1 (multilingual)
- Software capabilities: measurements, brightness, particle analysis, etc.
- Output: USB 2.0 (2 pcs.), miniHDMI, Wi-Fi, TF memory card slot
- Camera power supply: DC 12V; via AC adapter
- Additionally: LCD screen: 9.4 inches, color, touch; Built-in memory: 4 GB
- Possibility of connecting other equipment: microSD memory cards up to 32 GB; monitor/TV with HDMI connector; flash drive, computer mouse, keyboard with USB connector; 3.5 mm headphones
- Photo: *.jpg
- Video: 1080p, *.3gp
- Purpose: laboratory/medical
- Illumination location: bottom
- Research method: bright field
- Digital camera included: yes
- Case: metal
- Power supply: 100-240V
