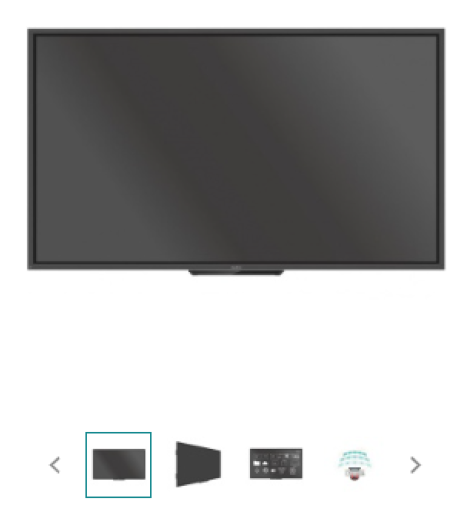

Interactive LED panel Newline TT8620HO

Newline TT-8620HO: 86" is the latest panel for business and education from one of the world's largest manufacturers of interactive displays. 4K display The HO series display is equipped with the most modern LCD matrix with a resolution of 3840x2160 pixels, high brightness and contrast, which guarantees maximum image quality in any conditions and usage scenarios. And automatic brightness correction and a blue light filter at the hardware level guarantee the safety of users’ vision.

• Diagonal 86"
• LED backlight type
• Aspect ratio 16:9
• Resolution 3840x2160 (60Hz) 4K UHD
• Protective glass thickness 2 mm
• Glass surface Anti-reflective surface
• Brightness 400 cd
• Contrast ratio 4000:1
• Speakers 15 W x 2
• Backlight life >50,000 hours
• IR touch technology
• Stylus type Passive
• Number of styluses 1
• Number of touch points 20
• Recognition finger, marker, fist, pen, pencil Yes
• Windows Gestures Yes
• Gestures in MS Office Yes
• OPS slot Yes
• HDMI input 2x2.0
• HDMI output (switch) Yes
• HDMI output resolution 3840x2160@60
• DP input No
• VGA input 1
• SPDIF 1
• USB Type C 2
• USB A on the front No ports on the front
• USB A rear 4 (2x3.0 Public, 1x3.0 Touch, 1x Embedded)
• USB B No
• Mic 1
• Audio In 1
• Audio Out 1
• RS232 1
• RJ45 1
• Built-in Windows PC No
• Windows PC processor -
• Windows PC RAM -
• Windows PC SSD -
• Built-in FullHD cameras 1
• Built-in 4 microphones
• Public USB Yes
• Optical bonding Yes
• Android version 8.0.0
• Android ARM Cortex A73x2+A53x2 processor, 1.5 GHz
• Video card Android Mali G51x4, 650 MHz
• Android RAM 4 GB
• Android ROM 64 GB
• Newline Cast (wireless broadcast to screen) Yes
• Newline Broadcast (panel broadcast to 200 devices) Yes
• Remote control Yes
• Built-in file manager Yes
• Built-in browser Yes
• Access to network drives and cloud storage Yes
• Built-in document editor Yes
• Ability to install Android applications Yes
• VESA (mm) 800x400 mm
• Power consumption <400 W
• Standby ≤0.5W
• 3 year warranty
• Features 86", 4K 60Hz, Optical Bonding, very thin bezels, no ports or buttons (power only) on the front, object recognition in Windows (finger, marker, fist), save to PowerPoint, Word, Excel, PDF, lightest weight on the market, very thin, real 178 degree view, throwable USB, built-in Android, AirPlay, NewlineCast, built-in Android 8, customizable interface, built-in microphones and camera, huge amount of memory, USB Type C x 2
• Dimensions 1976 x 1147 x 81 mm
• Net weight 57 kg±2 kg
