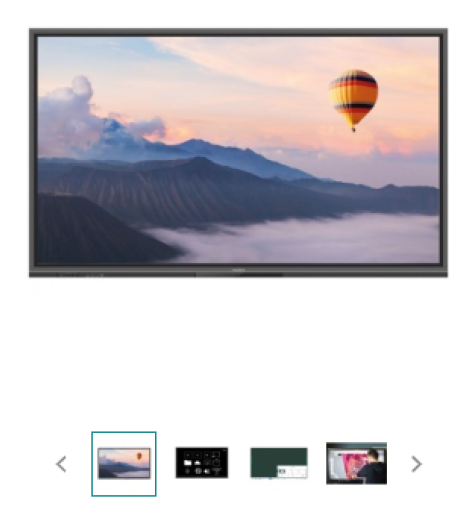

Interactive LED panel Newline TT-8620ER: 86"

Newline TT-8620ER: 86" is the latest business and education panel from one of the world's largest interactive display manufacturers. The combination of unique technologies, wide functionality, modern hardware and advanced software makes them universal, and a very affordable price allows them to be used in a wide variety of organizations and conditions.

• Diagonal 86"
• Aspect ratio 16:9
• Resolution 3840x2160 (60Hz) 4K UHD
• Glass surface Anti-reflective surface
• Protective glass thickness 4 mm
• LED backlight type
• Backlight life >50,000 hours
• Brightness 400 cd/m
• Contrast ratio 4000:1
• Speakers 15 W x 2
• Stylus type Passive
• Number of styluses 2
• Number of touch points 20
• Recognition finger, marker, fist, pen, pencil Yes
• Windows Gestures Yes
• Gestures in MS Office Yes
• IR touch technology
• OPS slot Yes
• HDMI input 3 (2x2.0, 1x1.4)
• HDMI output (switch) Yes
• HDMI output resolution 3840x2160@60
• DP input No
• VGA input 1
• SPDIF 1
• USB Type C 1
• USB A front panel 3 (2xPublic, 1xTouch)
• USB A rear 4 (2xPublic, 1xTouch, 1x3.0 Embedded)
• USB B No
• Mic 1
• Audio In 1
• Audio Out 1
• RS232 1
• RJ45 1
• Built-in Windows PC No
• Windows PC processor -
• Windows PC RAM -
• Windows PC SSD -
• Built-in FullHD cameras No
• Built-in 4 microphones
• Public USB Yes
• Optical bonding No
• Android version 8.0.0
• Android ARM Cortex A73*2+A53*2 processor, 1.5GHz
• Video card Android Mali G51x4, 650 MHz
• Android RAM 4 GB
• Android ROM 64 GB
• Newline Cast (wireless broadcast to screen) Yes
• Newline Broadcast (panel broadcast to 200 devices) Yes
• Remote control Yes
• Built-in file manager Yes
• Built-in browser Yes
• Access to network drives and cloud storage Yes
• Built-in document editor Yes
• Ability to install Android applications Yes
• VESA (mm) 800x400 mm
• 3 year warranty
• Features 86", 4K 60 Hz, object recognition in Windows and Android (finger, marker, fist) without drivers, saving to PowerPoint, Word (Office 365), Excel (Office 365), PDF, MS Whiteboard, MS OneNote without drivers, AirPlay, built-in Android 8, customizable interface, forwardable USB, BUILT-IN MICROPHONES, huge memory capacity, USB Type C for external audio
• Power consumption <400 W
• Standby ≤0.5W
• Dimensions 1983 x 1180 x 97 mm
• Net weight 70 kg±2 kg
